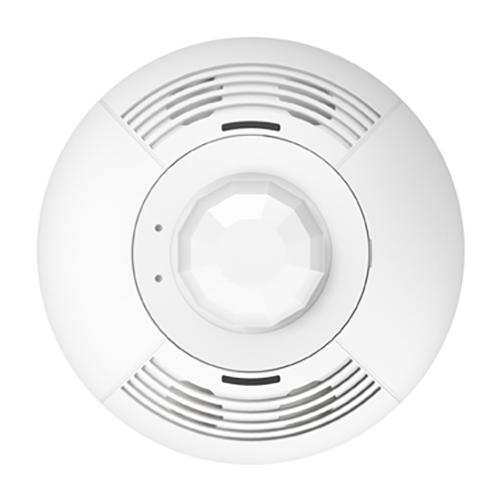

Lutron® LOS-CDT-500R-WH LOS-CDT Occupancy Sensor, 20 to 24 VDC, Dual (Ultrasonic and Passive Infrared) Sensor, 500 sq-ft Coverage
Lutron® LOS-CDT-500R-WH LOS-CDT Occupancy Sensor, 20 to 24 VDC, Dual (Ultrasonic and Passive Infrared) Sensor, 500 sq-ft Coverage
SKU543366
MFGR #LOS-CDT-500R-WH
Price Not Available
List: The LOS-CDT series dual technology ceiling-mount sensors can integrate into Lutron® systems or function as stand-alone controls using a Lutron® power pack. The technology eliminates manual sensitivity and timer adjustments during installation and over the life of the product.
The LOS-CDT series dual technology ceiling-mount sensors can integrate into Lutron® systems or function as stand-alone controls using a Lutron® power pack. The technology eliminates manual sensitivity and timer adjustments during installation and over the life of the product.
Amperage Rating 33 mA Application Lighting Control ARRA Compliant N Buy American Compliant N Catalog Number LOS-CDT-500R-WH Color White Connection Type 6 in Lead Wire Control Output 20 to 24 VDC Country of Origin CN Currency USD Dimensions 4.5 in Dia x 1.4 in D Enclosure Plastic Environmental Conditions Relative humidity less than 95 percent, non-condensing. For indoor use only EU RoHS Indicator N Gross Volume Per Pack 0.07 Gross Volume per Pack Metric 0.00 Gross Weight Per Pack 0.5600 lb Gross Weight per Pack Metric 0.23 Gross Weight UOM Metric kg Height 2.80 in Height [Metric] 7.1120 cm Length 7.10 in Length [Metric] 18.0340 cm Material Plastic Mounting Ceiling Operating Temperature 32 to 104 °F Sensing Range 500 ft2 (46 m2), 180 degree field of view Series LOS-CDT Standard UL, cUL Standards UL, cUL Listed Sub Brand LOS-CDT series Supply Voltage 20 to 24 VDC Temperature Rating 32 to 104 °F Time Delay 8 to 30 min Manual, 8 sec Test Type Dual Technology ceiling-mount sensor UNSPSC 39122230 UPC 11 02755718201 UPC 12 027557182010 Width 5.70 in Width [Metric] 14.4780 cm Stock Status NONSTOCK Brand Lutron® Manufacturer Lutron Electronics Co., Inc Coverage 500 ft² Mounting Type Ceiling Sensor Type Passive/Ultrasonic Infrared Viewing Angle 180 ° Voltage Rating 20 to 24 VDC Lighting Control Can integrate into Lutron systems or function as a stand-alone control using Lutron power pack. The technology eliminates manual sensitivity and timer adjustments during installation and over the life of the product. Intelligent, continually adapting sensor. Ultrasonic (US) combined with Passive Infrared (PIR) sensing provides high sensitivity, high noise immunity, and excellent false tripping immunity. The self-adapting internal microprocessor analyzes the composite sum of both signals to eliminate time-consuming adjustments and callbacks found in non-intelligent sensors. Suited for complex environments that are difficult to control with single-technology sensors. Snap-locks to ceiling-mounted cover plate. Non-volatile memory: settings saved in protected memory are not lost during power outages. 500 ft2 to 200 ft2 (46 m2 to 186 m2) coverage when mounted on an 8 ft to 12 ft (2.4 m to 3.7 m) ceiling. Affords choice of turning lights off or dimming to a preset level in the unoccupied state when integrated with a Lutron system. Combines both ultrasonic (US) motion detection for maximum sensitivity and passive infrared (PIR) motion detection for false triggering immunity The self-adapting internal microprocessor analyzes the composite sum of both signals to eliminate time-consuming adjustments and callbacks found in non-intelligent sensors Intelligent, continually adapting sensor Ultrasonic (US) combined with passive infrared (PIR) sensing provide high sensitivity, high noise immunity and excellent false tripping immunity Suited for complex environments that are difficult to control with single technology sensors Snap locks to ceiling mounted cover plate Non-volatile memory, settings saved in protected memory are not lost during power outages 500 to 2000 sq-ft coverage when mounted on an 8 to 12 ft ceiling Affords choice of turning lights Off or dimming to a preset level in the unoccupied state when integrated with a Lutron® system Injection molded plastic
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 33 mA |
| Application | Lighting Control |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LOS-CDT-500R-WH |
| Color | White |
| Connection Type | 6 in Lead Wire |
| Control Output | 20 to 24 VDC |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 4.5 in Dia x 1.4 in D |
| Enclosure | Plastic |
| Environmental Conditions | Relative humidity less than 95 percent, non-condensing. For indoor use only |
| EU RoHS Indicator | N |
| Gross Volume Per Pack | 0.07 |
| Gross Volume per Pack Metric | 0.00 |
| Gross Weight Per Pack | 0.5600 lb |
| Gross Weight per Pack Metric | 0.23 |
| Gross Weight UOM Metric | kg |
| Height | 2.80 in |
| Height [Metric] | 7.1120 cm |
| Length | 7.10 in |
| Length [Metric] | 18.0340 cm |
| Material | Plastic |
| Mounting | Ceiling |
| Operating Temperature | 32 to 104 °F |
| Sensing Range | 500 ft2 (46 m2), 180 degree field of view |
| Series | LOS-CDT |
| Standard | UL, cUL |
| Standards | UL, cUL Listed |
| Sub Brand | LOS-CDT series |
| Supply Voltage | 20 to 24 VDC |
| Temperature Rating | 32 to 104 °F |
| Time Delay | 8 to 30 min Manual, 8 sec Test |
| Type | Dual Technology ceiling-mount sensor |
| UNSPSC | 39122230 |
| UPC 11 | 02755718201 |
| UPC 12 | 027557182010 |
| Width | 5.70 in |
| Width [Metric] | 14.4780 cm |
| Stock Status | NONSTOCK |
| Brand | Lutron® |
| Manufacturer | Lutron Electronics Co., Inc |
| Coverage | 500 ft² |
| Mounting Type | Ceiling |
| Sensor Type | Passive/Ultrasonic Infrared |
| Viewing Angle | 180 ° |
| Voltage Rating | 20 to 24 VDC |
| Lighting Control |
| Can integrate into Lutron systems or function as a stand-alone control using Lutron power pack. The technology eliminates manual sensitivity and timer adjustments during installation and over the life of the product. Intelligent, continually adapting sensor. Ultrasonic (US) combined with Passive Infrared (PIR) sensing provides high sensitivity, high noise immunity, and excellent false tripping immunity. The self-adapting internal microprocessor analyzes the composite sum of both signals to eliminate time-consuming adjustments and callbacks found in non-intelligent sensors. Suited for complex environments that are difficult to control with single-technology sensors. Snap-locks to ceiling-mounted cover plate. Non-volatile memory: settings saved in protected memory are not lost during power outages. 500 ft2 to 200 ft2 (46 m2 to 186 m2) coverage when mounted on an 8 ft to 12 ft (2.4 m to 3.7 m) ceiling. Affords choice of turning lights off or dimming to a preset level in the unoccupied state when integrated with a Lutron system. |
| Combines both ultrasonic (US) motion detection for maximum sensitivity and passive infrared (PIR) motion detection for false triggering immunity |
| The self-adapting internal microprocessor analyzes the composite sum of both signals to eliminate time-consuming adjustments and callbacks found in non-intelligent sensors |
| Intelligent, continually adapting sensor |
| Ultrasonic (US) combined with passive infrared (PIR) sensing provide high sensitivity, high noise immunity and excellent false tripping immunity |
| Suited for complex environments that are difficult to control with single technology sensors |
| Snap locks to ceiling mounted cover plate |
| Non-volatile memory, settings saved in protected memory are not lost during power outages |
| 500 to 2000 sq-ft coverage when mounted on an 8 to 12 ft ceiling |
| Affords choice of turning lights Off or dimming to a preset level in the unoccupied state when integrated with a Lutron® system |
| Injection molded plastic |
