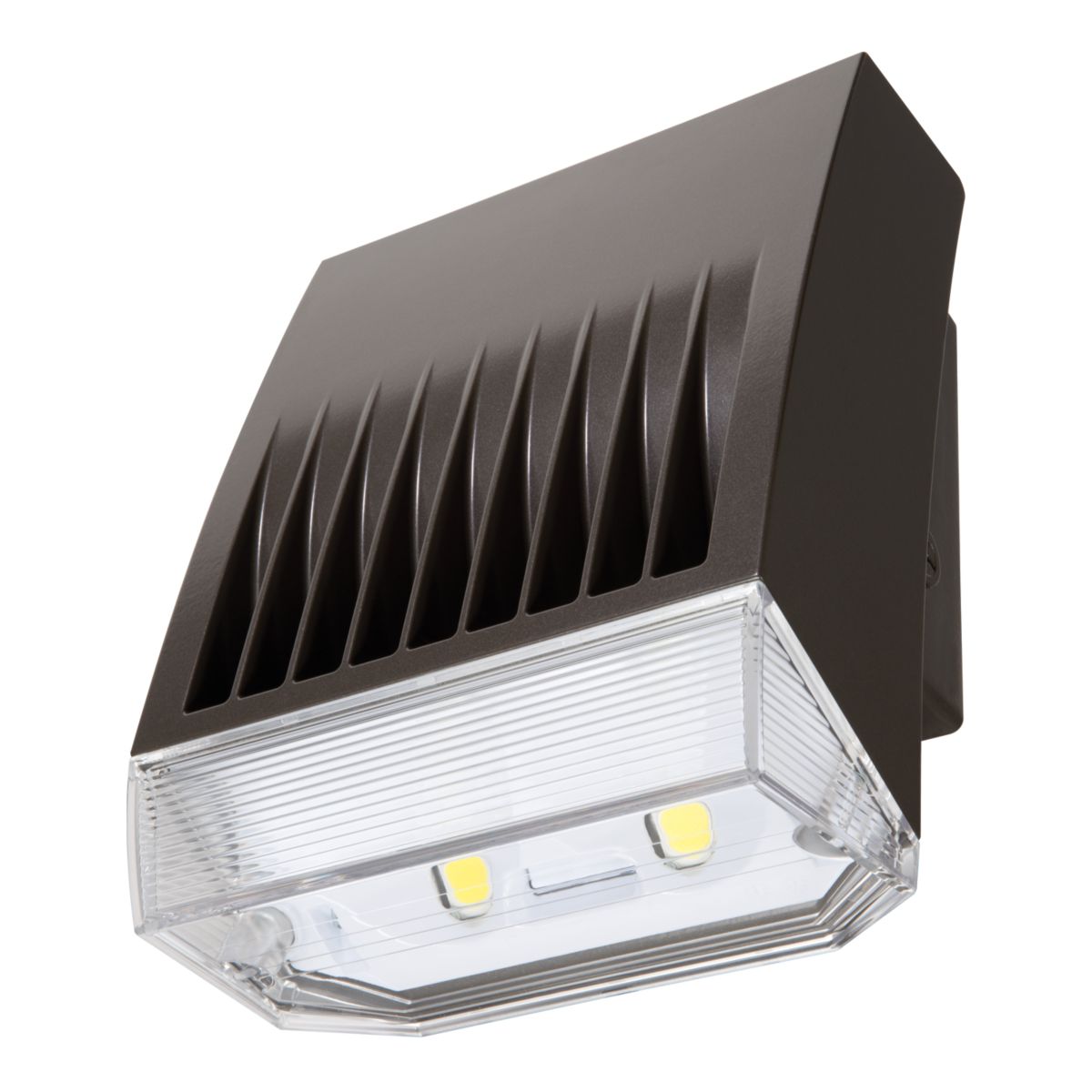

Lumark Outdoor Crosstour™ MAXX XTOR12BRL-W Outdoor Wallpack, LED Lamp, 102 W Fixture, 120 to 277 VAC, Carbon Bronze Housing
Lumark Outdoor Crosstour™ MAXX XTOR12BRL-W Outdoor Wallpack, LED Lamp, 102 W Fixture, 120 to 277 VAC, Carbon Bronze Housing
SKUPDW~13816953
MFGR #XTOR12BRL-W
Price Not Available
Lumark Outdoor Crosstour™ MAXX Outdoor Wallpack, Series: XTOR12BRL, 120 to 277 VAC, 102 W Fixture, 0.39/0.45/0.52/0.93 A, LED Lamp, 72000 hr Average Life, Neutral White Light, 4000 K Color Temperature, 70 CRI, 0 to 10 VDC Dimming LED Ballast, Refractive Lens, 13258 Lumens, IP66 Enclosure, Wall Mounting, Die Cast Aluminum Housing Material, Carbon Bronze Housing Finish, 9 in L x 7-3/4 in W x 13-1/4 in H Dimensions
Lumark Outdoor Crosstour™ MAXX Outdoor Wallpack, Series: XTOR12BRL, 120 to 277 VAC, 102 W Fixture, 0.39/0.45/0.52/0.93 A, LED Lamp, 72000 hr Average Life, Neutral White Light, 4000 K Color Temperature, 70 CRI, 0 to 10 VDC Dimming LED Ballast, Refractive Lens, 13258 Lumens, IP66 Enclosure, Wall Mounting, Die Cast Aluminum Housing Material, Carbon Bronze Housing Finish, 9 in L x 7-3/4 in W x 13-1/4 in H Dimensions
Amperage Rating 0.94 A at 120 V and 0.39 A at 277 V and 0.24 A at 487 V A Application For wall, surface, inverted mount for facade, canopy illumination, perimeter and site lighting, ARRA Compliant C Ballast Type 0-10V Dimming LED Driver Buy American Compliant C Catalog Number XTOR12BRL-W Color Copper Country of Origin MX Currency USD EU RoHS Indicator C Finish Carbon Bronze Gross Weight Per Pack 11.4500 lb Gross Weight per Pack Metric 5.19 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 9405426000 Height 12.62 in Height [Metric] 32.0675 cm Lamp Included Yes Length 9.44 in Length [Metric] 23.9725 cm Material Die-Cast Aluminum Mounting Wall Mount Number Of Lamps 2 Standard UL/cUL Listed - Wet Location Style (blank) Sub Brand XTOR Crosstour MAXX LED Type Wall Mount UNSPSC 39111503 UPC 11 08008377948 UPC 12 080083779482 Wattage 102 W Width 6.81 in Width [Metric] 17.3050 cm Brand Lumark Manufacturer Cooper Lighting Solutions Lamp Type LED Voltage Rating 120 - 277V 50/60 Hz For wall, surface, inverted mount for facade, canopy illumination, perimeter and site lighting, Wall, inverted or pole mount. Energy saving replacement up to 250W HID Wall, inverted or pole mount Patented heavy duty construction, maximum LED performance Die cast aluminum, low profile design with hinged removable door Emergency egress battery pack Sealed LED optical chamber 0.93 A at 120 VAC, 0.52 A at 208 VAC, 0.45 A at 240 VAC, 0.39 A at 277 VAC
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 0.94 A at 120 V and 0.39 A at 277 V and 0.24 A at 487 V A |
| Application | For wall, surface, inverted mount for facade, canopy illumination, perimeter and site lighting, |
| ARRA Compliant | C |
| Ballast Type | 0-10V Dimming LED Driver |
| Buy American Compliant | C |
| Catalog Number | XTOR12BRL-W |
| Color | Copper |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | C |
| Finish | Carbon Bronze |
| Gross Weight Per Pack | 11.4500 lb |
| Gross Weight per Pack Metric | 5.19 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 9405426000 |
| Height | 12.62 in |
| Height [Metric] | 32.0675 cm |
| Lamp Included | Yes |
| Length | 9.44 in |
| Length [Metric] | 23.9725 cm |
| Material | Die-Cast Aluminum |
| Mounting | Wall Mount |
| Number Of Lamps | 2 |
| Standard | UL/cUL Listed - Wet Location |
| Style | (blank) |
| Sub Brand | XTOR Crosstour MAXX LED |
| Type | Wall Mount |
| UNSPSC | 39111503 |
| UPC 11 | 08008377948 |
| UPC 12 | 080083779482 |
| Wattage | 102 W |
| Width | 6.81 in |
| Width [Metric] | 17.3050 cm |
| Brand | Lumark |
| Manufacturer | Cooper Lighting Solutions |
| Lamp Type | LED |
| Voltage Rating | 120 - 277V 50/60 Hz |
| For wall, surface, inverted mount for facade, canopy illumination, perimeter and site lighting, |
| Wall, inverted or pole mount. Energy saving replacement up to 250W HID |
| Wall, inverted or pole mount |
| Patented heavy duty construction, maximum LED performance |
| Die cast aluminum, low profile design with hinged removable door |
| Emergency egress battery pack |
| Sealed LED optical chamber |
| 0.93 A at 120 VAC, 0.52 A at 208 VAC, 0.45 A at 240 VAC, 0.39 A at 277 VAC |
