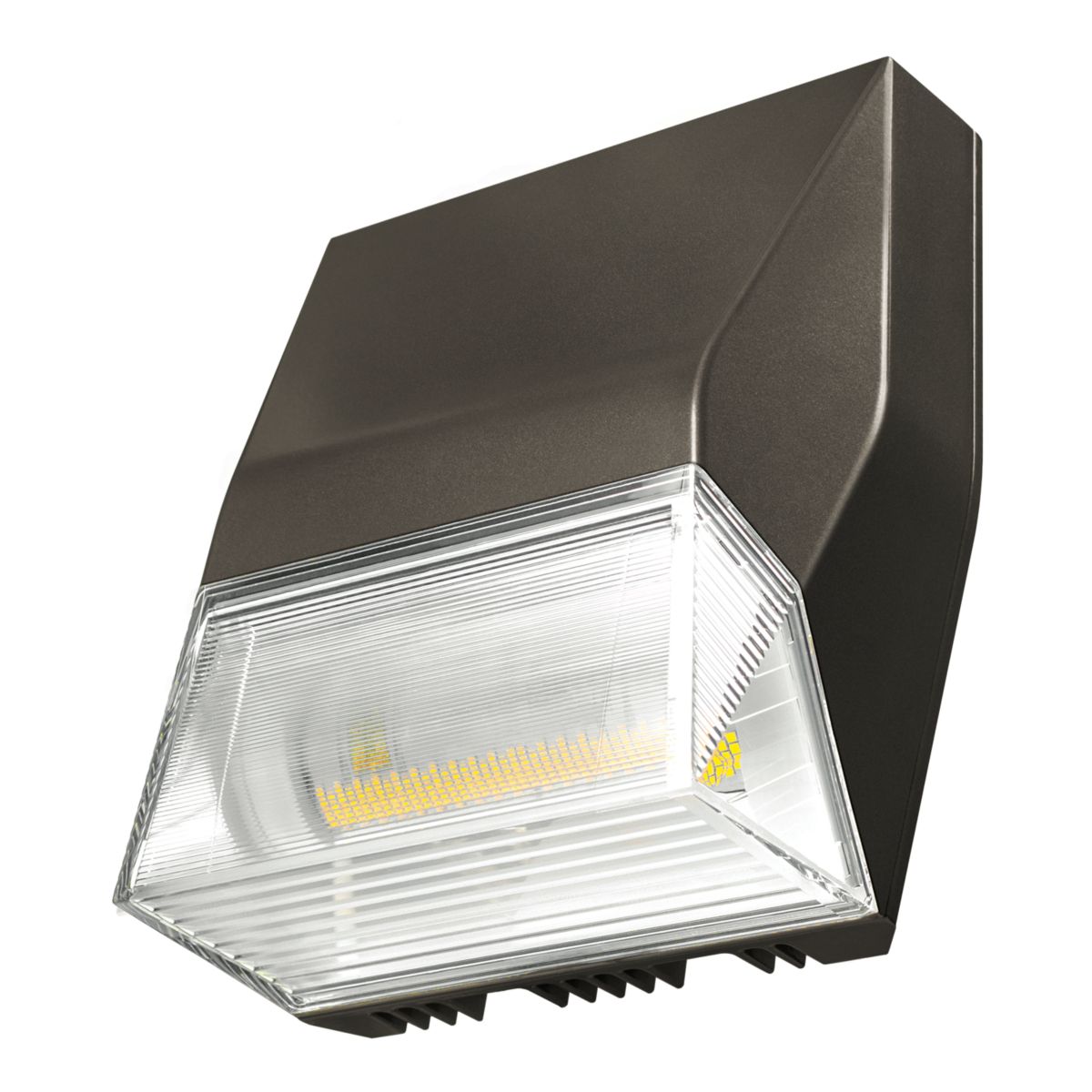

Lumark AXCL10ARL Axcent AXCL Large Outdoor Wall Pack, (1) LED Lamp, 120 to 277 VAC, Carbon Bronze Housing
Outdoor Wallpacks
1209584
MFG #: AXCL10ARL
Lumark
495.57000
/ ea
Lumark Outdoor Wall Pack, Large, Series: Axcent AXCL, 120 to 277 VAC, 0.36/0.41/0.83 A, LED Lamp, 102 W Lamp, 1 Lamps, 144 Lumens/W Light Output, 4000 K Color Temperature, 70 CRI, 0 to 10 VDC Dimming/Class 1 Electronic Ballast, Refractive Lens, 13641 Lumens, IP66 Enclosure, Wall Mounting, Die Cast Aluminum Housing Material, Carbon Bronze Housing Finish, 11-1/2 in H x 10-3/4 in W x 4-7/8 in D Dimensions
- Brochure URL - 11143_A10CE2NTLBR5MDJ3.pdf(Brochure URL)
- Brochure URL - 191a8fcfc6744ec3aa3fad3f014bde72(Brochure URL)
- http://www.cooperlighting.com(Seller Home Page URL)
- Install Instructions 1 URL - b318277b9b014c288072ad40006f5a16(Install Instructions 1 URL)
- Spec Sheet URL - 11143_TY2UNG8Z3D5SQX7C.pdf(Spec Sheet URL)
- Spec Sheet URL - bf8b89f5cfe44c26913dad41008343d5(Spec Sheet URL)
- Applications
- Features
| Pathway Illumination, Building Entrances, Vehicle Ramps, Schools, Tunnels, Stairways, Loading D |
| Available in 14W - 123W (1,800 - 17,000 lumens) models |
| Energy and maintenance savings up to 95% compared to HID |
| Energy efficient illumination results in up to 144 Lumens/W |
| Hook-N-Lock mechanism for quick, easy installation |
| Standard 0 to 10 VDC dimming |
| Integrated stand alone or wireless controls for additional savings |
| 0.83 A at 120 VAC, 0.41 A at 240 VAC, 0.36 A at 277 VAC amperage rating |
