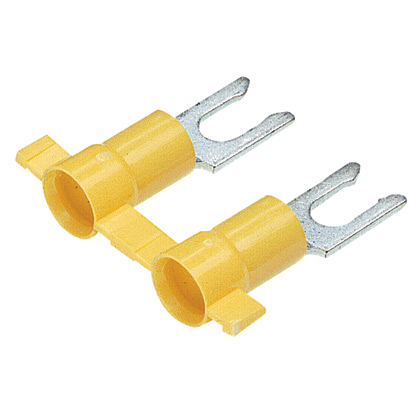

Locking Fork Terminal, vinyl insulated,
SKU6878
MFGR #PV10-8LFB-2K
Your Cost: $0.3915/ea($391.50 / m)
List: Panduit® ® Pan-Term® ® Terminals are designed and manufactured for fast assembly, and reliable performance. Panduit® provides an extensive line of tooling designed specifically to provide optimum performance. As the demand for loose piece terminals increases, it becomes essential to provide a complete system for termination products.
Panduit® ® Pan-Term® ® Terminals are designed and manufactured for fast assembly, and reliable performance. Panduit® provides an extensive line of tooling designed specifically to provide optimum performance. As the demand for loose piece terminals increases, it becomes essential to provide a complete system for termination products.
ARRA Compliant Y Buy American Compliant Y Catalog Number PV10-8LFB-2K Conductor Type Solid/Stranded Copper Connection Funnel Entry Country of Origin MEX Currency USD Enclosure Fork shape EU RoHS Indicator Y Finish Tin Plated Gross Volume Per Pack 1.00 Gross Volume per Pack Metric 0.03 Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.0100 lb Gross Weight per Pack Metric 4.97 Gross Weight UOM Metric kg Height 2.40 in Height [Metric] 6.0960 cm Insulation PVC Length [Metric] 66.2940 cm Mounting 11/32 Returnable Y Series PV-LF Size #8 Specifications 11/32 in L Wire Strip, 0.225 in Dia Max Vinyl Insulation, 0.21 in Clearance, Funnel Entry Barrel Configuration Standard UL Listed 587H E52164; CSA Certified LR31212 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantABS ApprovedCSA C22.2 No. 65UL94 V-0 Flammability RatingUL 486A/486B Stud Size #8 Sub Brand Reel Smart?„? Temperature Rating 221 °F Tongue Size 0.3 in W x 0.04 in THK Tongue Type Locking Fork Type Locking Fork Terminal UNSPSC 39121409 UPC 11 07498380850 UPC 12 07498380850 Voltage Rating 600 V Width 25.40 in Width [Metric] 64.5160 cm Wire Size #10 AWG Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Barrel Type Butted Seam Color Yellow Conductor Size 12 to 10 AWG Length 26.10 in Material Copper Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time Snap-in place for secure connection Fork design provides for fast and easy installation, without the need to remove fastener Insulation support helps to prevent wire damage in bending applications Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time Crimp termination Free hanging (in-line) mounting Recommended tools CA-800EZ, CA9 Snap in place for secure connection 2000/Reel
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Media
- Substitute Products
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Catalog Number | PV10-8LFB-2K |
| Conductor Type | Solid/Stranded Copper |
| Connection | Funnel Entry |
| Country of Origin | MEX |
| Currency | USD |
| Enclosure | Fork shape |
| EU RoHS Indicator | Y |
| Finish | Tin Plated |
| Gross Volume Per Pack | 1.00 |
| Gross Volume per Pack Metric | 0.03 |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.0100 lb |
| Gross Weight per Pack Metric | 4.97 |
| Gross Weight UOM Metric | kg |
| Height | 2.40 in |
| Height [Metric] | 6.0960 cm |
| Insulation | PVC |
| Length [Metric] | 66.2940 cm |
| Mounting | 11/32 |
| Returnable | Y |
| Series | PV-LF |
| Size | #8 |
| Specifications | 11/32 in L Wire Strip, 0.225 in Dia Max Vinyl Insulation, 0.21 in Clearance, Funnel Entry Barrel Configuration |
| Standard | UL Listed 587H E52164; CSA Certified LR31212 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantABS ApprovedCSA C22.2 No. 65UL94 V-0 Flammability RatingUL 486A/486B |
| Stud Size | #8 |
| Sub Brand | Reel Smart?„? |
| Temperature Rating | 221 °F |
| Tongue Size | 0.3 in W x 0.04 in THK |
| Tongue Type | Locking Fork |
| Type | Locking Fork Terminal |
| UNSPSC | 39121409 |
| UPC 11 | 07498380850 |
| UPC 12 | 07498380850 |
| Voltage Rating | 600 V |
| Width | 25.40 in |
| Width [Metric] | 64.5160 cm |
| Wire Size | #10 AWG |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Barrel Type | Butted Seam |
| Color | Yellow |
| Conductor Size | 12 to 10 AWG |
| Length | 26.10 in |
| Material | Copper |
| Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time |
| Snap-in place for secure connection |
| Fork design provides for fast and easy installation, without the need to remove fastener |
| Insulation support helps to prevent wire damage in bending applications |
| Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications |
| Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time |
| Crimp termination |
| Free hanging (in-line) mounting |
| Recommended tools CA-800EZ, CA9 |
| Snap in place for secure connection |
| 2000/Reel |
