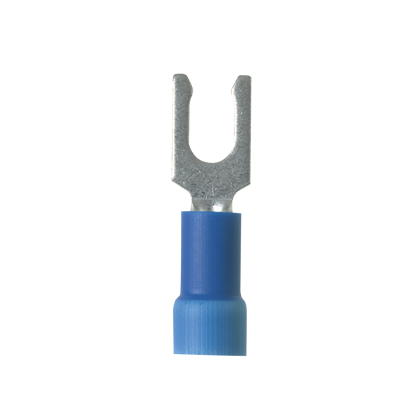

Locking Fork Terminal, expanded vinyl in
SKU71104
MFGR #PV14-6LFX-M
Your Cost: $0.3624/ea($362.39 / m)
List: Locking Fork Terminal, vinyl insulated, 18- 14 AWG, #6 stud size, expanded insulation for large wire O.D., bulk package.
Locking Fork Terminal, vinyl insulated, 18- 14 AWG, #6 stud size, expanded insulation for large wire O.D., bulk package.
ARRA Compliant Y Buy American Compliant Y Catalog Number PV14-6LFX-M Conductor Type Solid/Stranded Connection Funnel Entry Country of Origin MEX Currency USD Enclosure Fork shape EU RoHS Indicator Y Finish Tin Plated Gross Volume Per Pack 1.00 Gross Volume per Pack Metric 0.03 Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 2.4000 lb Gross Weight per Pack Metric 1.09 Gross Weight UOM Metric kg Height 3.45 in Height [Metric] 8.7630 cm Insulation PVC Length [Metric] 20.7010 cm Mounting 5/16 Returnable Y Series PV-LFX Size #6 Specifications 0.2 in Max Vinyl Insulation, Funnel Entry Barrel Configuration Standard UL Listed 587H E52164; CSA Certified LR31212 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantABS ApprovedCSA C22.2 No. 65UL94 V-0 Flammability RatingUL 486A/486B Stud Size #6 Sub Brand Pan-Term?® Temperature Rating 221 °F Tongue Size 1/4 in W Tongue Type Locking Fork Type Ring Terminal UNSPSC 39121409 UPC 11 07498380827 UPC 12 07498380827 Voltage Rating 600 V Width 4.45 in Width [Metric] 11.3030 cm Wire Size #14 AWG Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Barrel Type Brazed Seam/Insulation Support Color Blue Conductor Size 18 to 14 AWG Length 8.15 in Material Copper Fork design provides for fast and easy installation, without the need to remove fastener Locks in place for secure connection insulation support helps to prevent wire damage in bending applications Internal barrel serrations assure good wire contact and maximum tensile strength
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Catalog Number | PV14-6LFX-M |
| Conductor Type | Solid/Stranded |
| Connection | Funnel Entry |
| Country of Origin | MEX |
| Currency | USD |
| Enclosure | Fork shape |
| EU RoHS Indicator | Y |
| Finish | Tin Plated |
| Gross Volume Per Pack | 1.00 |
| Gross Volume per Pack Metric | 0.03 |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 2.4000 lb |
| Gross Weight per Pack Metric | 1.09 |
| Gross Weight UOM Metric | kg |
| Height | 3.45 in |
| Height [Metric] | 8.7630 cm |
| Insulation | PVC |
| Length [Metric] | 20.7010 cm |
| Mounting | 5/16 |
| Returnable | Y |
| Series | PV-LFX |
| Size | #6 |
| Specifications | 0.2 in Max Vinyl Insulation, Funnel Entry Barrel Configuration |
| Standard | UL Listed 587H E52164; CSA Certified LR31212 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantABS ApprovedCSA C22.2 No. 65UL94 V-0 Flammability RatingUL 486A/486B |
| Stud Size | #6 |
| Sub Brand | Pan-Term?® |
| Temperature Rating | 221 °F |
| Tongue Size | 1/4 in W |
| Tongue Type | Locking Fork |
| Type | Ring Terminal |
| UNSPSC | 39121409 |
| UPC 11 | 07498380827 |
| UPC 12 | 07498380827 |
| Voltage Rating | 600 V |
| Width | 4.45 in |
| Width [Metric] | 11.3030 cm |
| Wire Size | #14 AWG |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Barrel Type | Brazed Seam/Insulation Support |
| Color | Blue |
| Conductor Size | 18 to 14 AWG |
| Length | 8.15 in |
| Material | Copper |
| Fork design provides for fast and easy installation, without the need to remove fastener |
| Locks in place for secure connection insulation support helps to prevent wire damage in bending applications |
| Internal barrel serrations assure good wire contact and maximum tensile strength |
