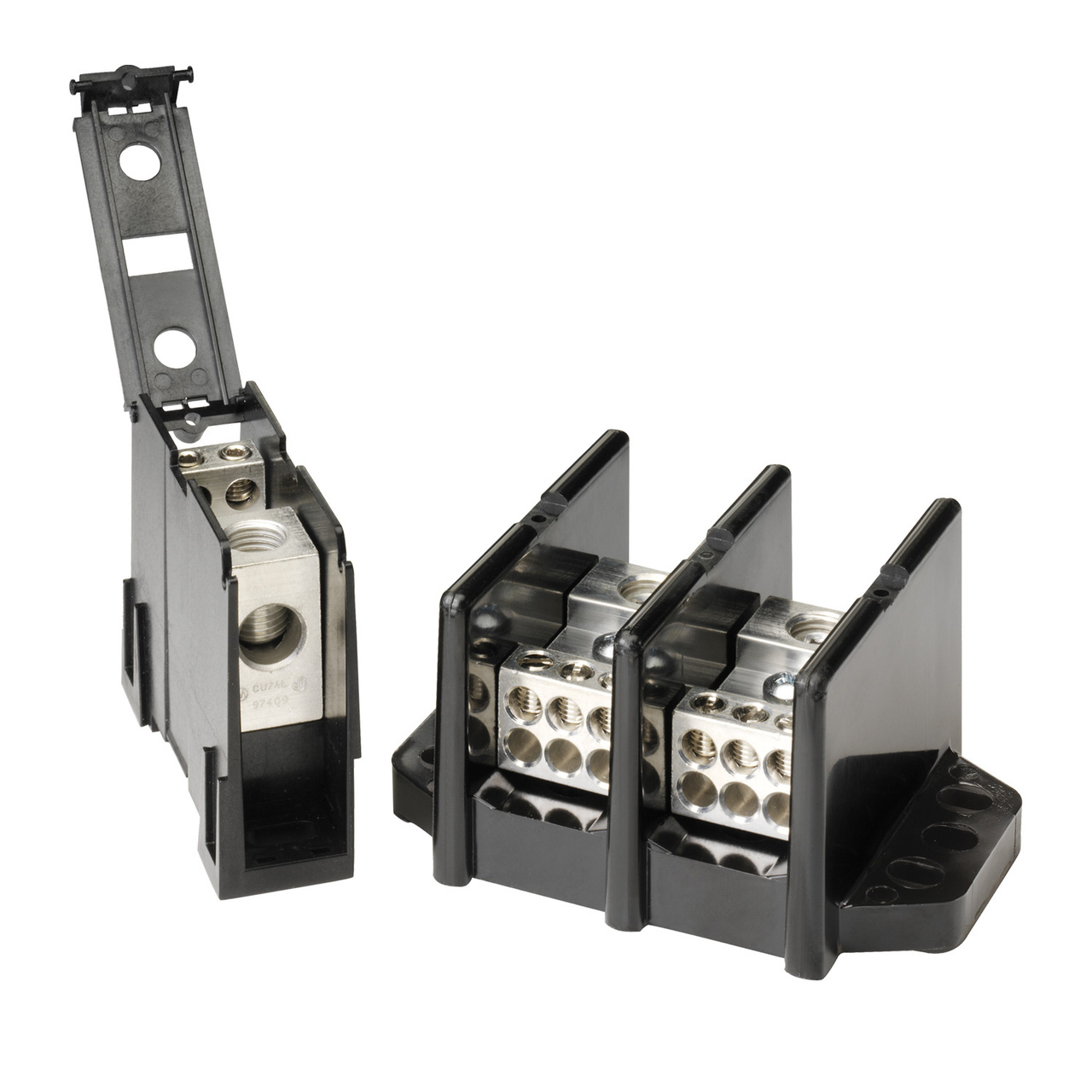

Littelfuse® POWR-GARD® LFD3553-3 POWR-BLOKS LD Splicer Terminal Power Distribution Block, 600 VAC, 380 A, 3 Poles, 6 AWG to 500 kcmil Wire, Thermoplastic
Multi Pole Distribution Blocks
1069271
MFG #: LFD3553-3
Littelfuse®
131.06000
/ ea
POWR-BLOKS power distribution and splicer blocks offer a safe, convenient way of splicing cables, providing a fixed junction tap-off point, or splitting primary power into secondary circuits. Blocks have one or two primary inputs, with up to twelve secondary outputs per pole. The number of poles available ranges from one to four.
- Brochure URL - 11468_ZMLGDEHVFOQAW4NX.pdf(Brochure URL)
- Brochure URL - littelfuse_industrial_distributor_handbook_pf159.pdf(Brochure URL)
- http://www.littelfuse.com(Seller Home Page URL)
- Spec Sheet URL - 11468_MA9L42YVSJOHUGQ1.pdf(Spec Sheet URL)
- Spec Sheet URL - littelfuse_powrbloks_ld_ls_datasheet.pdf(Spec Sheet URL)
- Tech Bulletin URL(Tech Bulletin URL)
- Tech Bulletin URL - 11468_YNSWF9J52A68X13K.pdf(Tech Bulletin URL)
- Tech Drawing URL(Tech Drawing URL)
- Applications
- Features
Anywhere power needs to be distributed to more than 1 load |
Bolt-in mount |
Two thread cutting screws are furnished for each cover |
Covers are slotted for easy installation |
(1) 500 kcmil to 6 AWG line, (6) 14 to 2 AWG load rated wire range |
(1) box lug primary, (6) box lug secondary |
Covers are slotted for easy installation |
(1) 500 kcmil to 6 AWG line, (6) 14 to 2 AWG load rated wire range |
(1) box lug primary, (6) box lug secondary |
