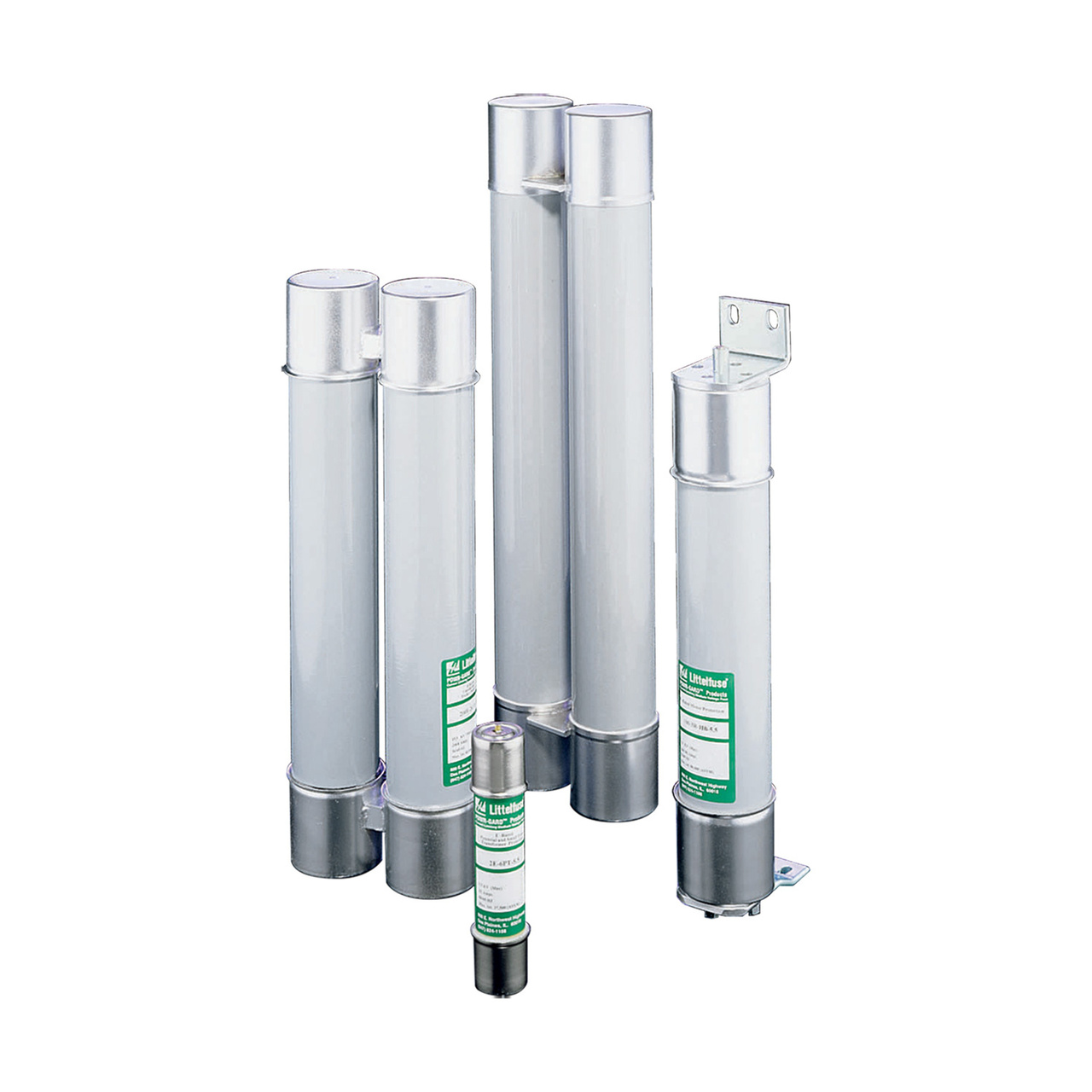

Littelfuse® POWR-GARD® 1E16PT25.5 Current Limiting Medium Voltage Fuse, 1 A, 25500 VAC, 80 kA Interrupt, Class E

E-rated fuses have time current characteristics designed to provide current-limiting protection for power transformers, potential transformers, power centers, feeder centers, and unit sub stations. When properly applied, they can protect against high and low fault currents. NEMA Standards for E-rated medium voltage fuses require that fuses rated 100E or less open within 300 seconds (5 minutes) when subjected to an RMS value of 200-240 percent of the fuse continuous current rating; and fuses with an E rating larger than 100E must open within 600 seconds (10 minutes) when subjected to an RMS current of 220-240 percent of the fuse's continuous current rating. These values establish one point on the time current curve.
