Littelfuse®

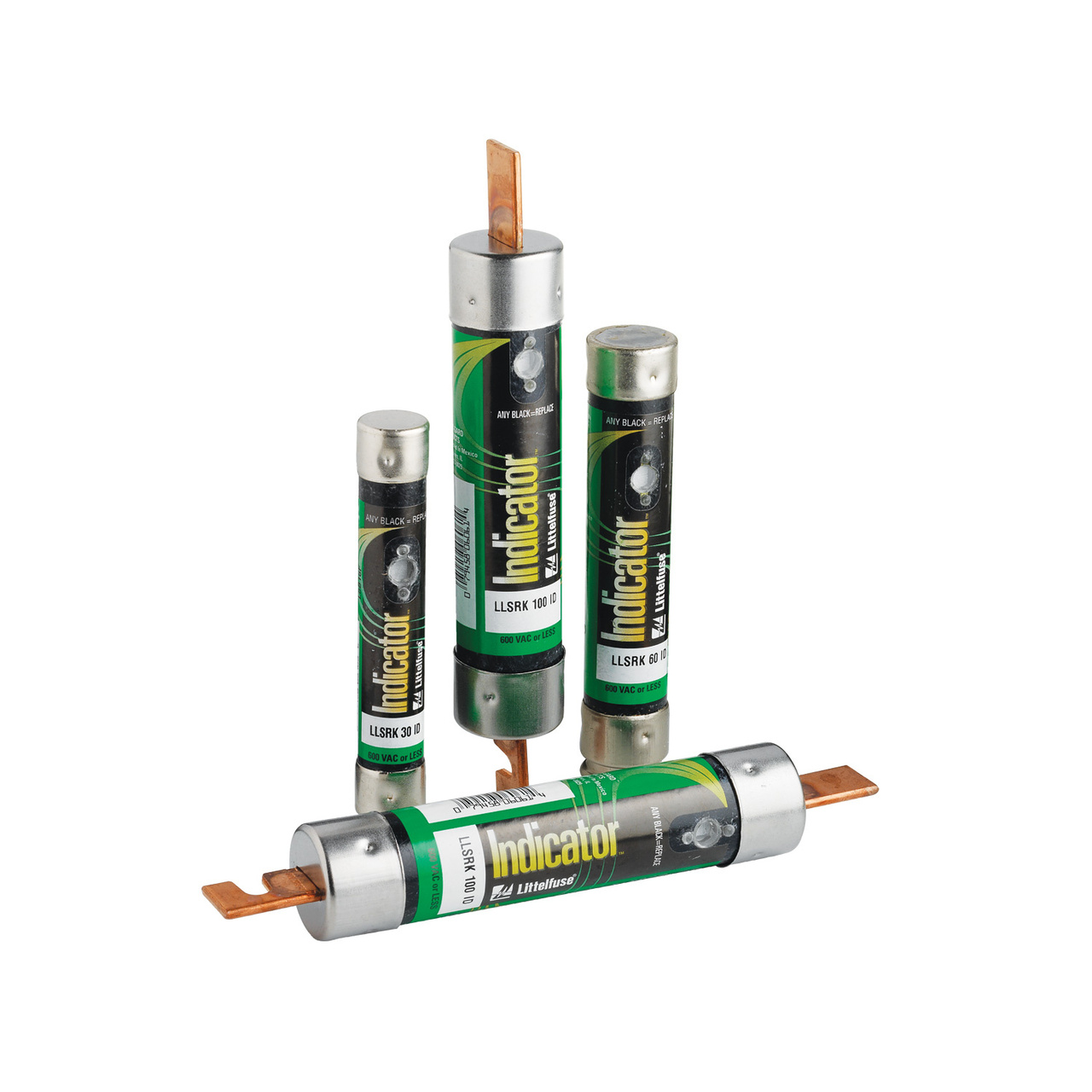

Littelfuse® LLSRK030 POWR-GARD® Slo-Blo® LLSRK Current Limiting Time Delay Fuse, 30 A, 600 VAC/300 VDC, 200/20 kA Interrupt
Custom_Product_Images_Illustration
Littelfuse®
Littelfuse® LLSRK030 POWR-GARD® Slo-Blo® LLSRK Current Limiting Time Delay Fuse, 30 A, 600 VAC/300 VDC, 200/20 kA Interrupt
SKU9407
MFGR #LLSRK030
Your Cost: $22.86/ea
List: The all new LLSRK_ID series fuse is the most advanced Class RK1 fuse available today providing unparalleled performance and protection to modern circuits. The patented indicator technology provides instant identification of a blown fuse greatly enhancing system up time, while the precision formed short circuit elements virtually eliminate damage to components from unexpected electrical faults. In addition, the all new solid-state overload section has no moving parts, stopping unnecessary fatigue failures commonly found in other spring loaded fuses.
The all new LLSRK_ID series fuse is the most advanced Class RK1 fuse available today providing unparalleled performance and protection to modern circuits. The patented indicator technology provides instant identification of a blown fuse greatly enhancing system up time, while the precision formed short circuit elements virtually eliminate damage to components from unexpected electrical faults. In addition, the all new solid-state overload section has no moving parts, stopping unnecessary fatigue failures commonly found in other spring loaded fuses.
Alternate Catalog Number LSRK030.T Application All general purpose circuits ARRA Compliant N Body Size 13/16 in Dia x 5 in L Buy American Compliant N Catalog Number LLSRK030 Country of Origin MX Currency USD Element Dual EU RoHS Indicator C Gross Weight Per Pack 0.1900 lb Gross Weight per Pack Metric 86.50 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536100040 Indicating|Non~Indicating Non-Indicating Item Group 079458-9S Material Fiberglass Mounting Type Holder Rejection|Non~Rejection Rejection Series LLSRK Standard Standard 248-12 UL Listed/CSA Standards RoHS CompliantUL 248-12UL File No. E81895CSA LR29862Federal Specification WF-1814PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer Sub Brand LLSRK Series Terminal Type Ferrule Type Class RK1 UNSPSC 39121627 UPC 11 07945835073 UPC 12 079458350739 Stock Status NONSTOCK Brand Littelfuse® Manufacturer Littelfuse Inc. Amperage Rating 30 A Body Type Cartridge Class RK1 Interrupt Rating 200/20 kA Voltage Rating 600//300 VAC//VDC All general purpose circuits Time-Delay Extremely current limiting - reduces damage to circuits and equipment under short circuit conditions Stops damaging short circuits faster than any mechanical protective device Reduced costs - current limiting design often permits use of readily available, less costly equipment Low resistance design reduces power consumption and utility bills Excellent time delay - true dual element construction, with separate non-fatiguing thermally-reversible spring loaded thermal overload element, withstands repeated surges within rated time delay without opening needlessly Eliminates needless downtime caused by power surges or equipment demands 200 kA at 600 VAC, 20 kA at 300 VDC interrupting rating Blown fuse indicator assembly Granular quartz filling Plated end caps Precision formed short circuit element Fiberglass reinforced pultruded body Elastomeric silicone overload section
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LSRK030.T |
| Application | All general purpose circuits |
| ARRA Compliant | N |
| Body Size | 13/16 in Dia x 5 in L |
| Buy American Compliant | N |
| Catalog Number | LLSRK030 |
| Country of Origin | MX |
| Currency | USD |
| Element | Dual |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.1900 lb |
| Gross Weight per Pack Metric | 86.50 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536100040 |
| Indicating|Non~Indicating | Non-Indicating |
| Item Group | 079458-9S |
| Material | Fiberglass |
| Mounting Type | Holder |
| Rejection|Non~Rejection | Rejection |
| Series | LLSRK |
| Standard | Standard 248-12 UL Listed/CSA |
| Standards | RoHS CompliantUL 248-12UL File No. E81895CSA LR29862Federal Specification WF-1814PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer |
| Sub Brand | LLSRK Series |
| Terminal Type | Ferrule |
| Type | Class RK1 |
| UNSPSC | 39121627 |
| UPC 11 | 07945835073 |
| UPC 12 | 079458350739 |
| Stock Status | NONSTOCK |
| Brand | Littelfuse® |
| Manufacturer | Littelfuse Inc. |
| Amperage Rating | 30 A |
| Body Type | Cartridge |
| Class | RK1 |
| Interrupt Rating | 200/20 kA |
| Voltage Rating | 600//300 VAC//VDC |
| All general purpose circuits |
| Time-Delay |
| Extremely current limiting - reduces damage to circuits and equipment under short circuit conditions |
| Stops damaging short circuits faster than any mechanical protective device |
| Reduced costs - current limiting design often permits use of readily available, less costly equipment |
| Low resistance design reduces power consumption and utility bills |
| Excellent time delay - true dual element construction, with separate non-fatiguing thermally-reversible spring loaded thermal overload element, withstands repeated surges within rated time delay without opening needlessly |
| Eliminates needless downtime caused by power surges or equipment demands |
| 200 kA at 600 VAC, 20 kA at 300 VDC interrupting rating |
| Blown fuse indicator assembly |
| Granular quartz filling |
| Plated end caps |
| Precision formed short circuit element |
| Fiberglass reinforced pultruded body |
| Elastomeric silicone overload section |
