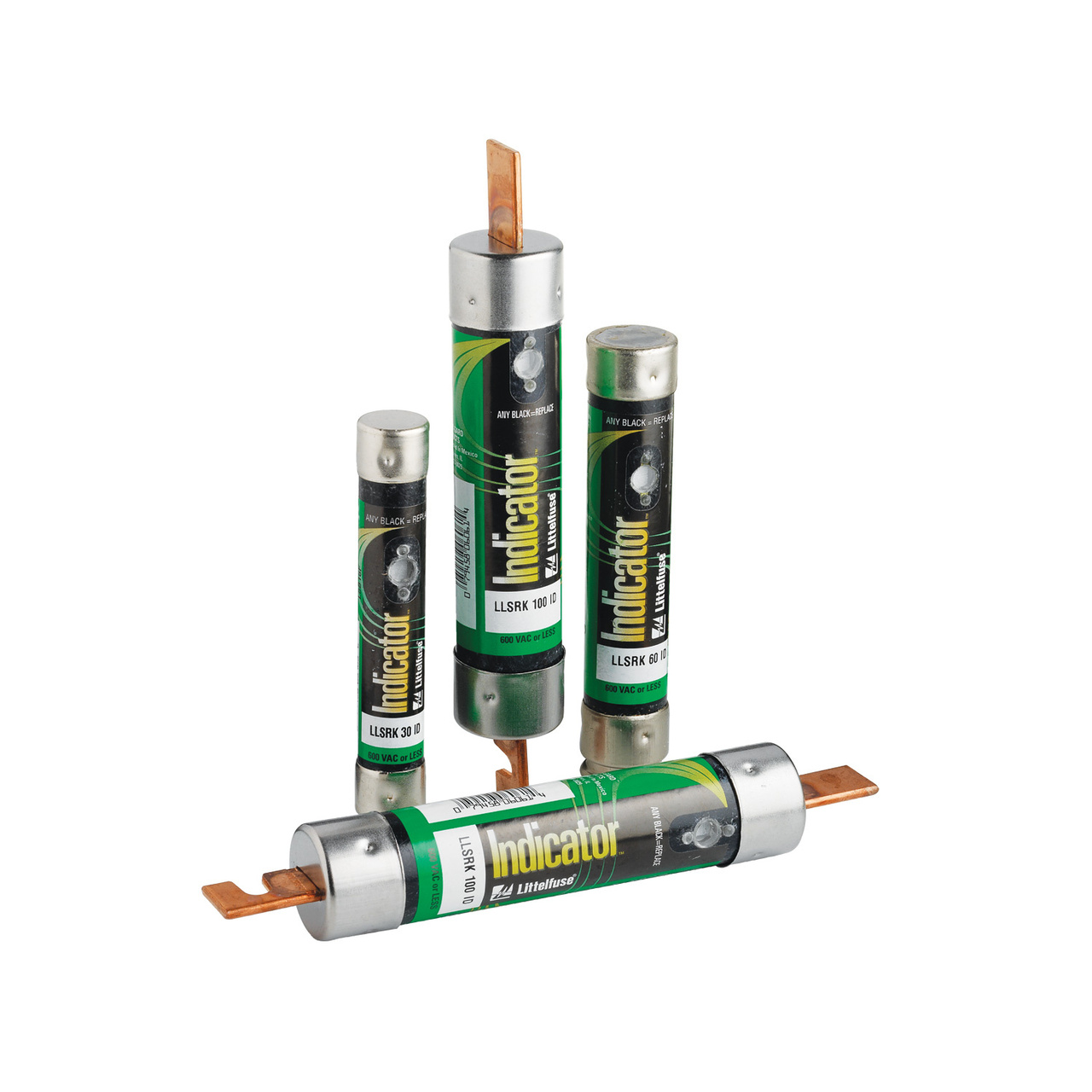

Littelfuse® LLSRK012ID POWR-GARD® Slo-Blo® LLSRK Current Limiting Time Delay Fuse, 12 A, 600 VAC/300 VDC, 200/20 kA Interrupt
Custom_Product_Images_Illustration
Littelfuse® LLSRK012ID POWR-GARD® Slo-Blo® LLSRK Current Limiting Time Delay Fuse, 12 A, 600 VAC/300 VDC, 200/20 kA Interrupt
SKU977082
MFGR #LLSRK012ID
Your Cost: $26.50/ea
List: The all new LLSRK_ID series fuse is the most advanced Class RK1 fuse available today providing unparalleled performance and protection to modern circuits. The patented indicator technology provides instant identification of a blown fuse greatly enhancing system up time, while the precision formed short circuit elements virtually eliminate damage to components from unexpected electrical faults. In addition, the all new solid-state overload section has no moving parts, stopping unnecessary fatigue failures commonly found in other spring loaded fuses.
The all new LLSRK_ID series fuse is the most advanced Class RK1 fuse available today providing unparalleled performance and protection to modern circuits. The patented indicator technology provides instant identification of a blown fuse greatly enhancing system up time, while the precision formed short circuit elements virtually eliminate damage to components from unexpected electrical faults. In addition, the all new solid-state overload section has no moving parts, stopping unnecessary fatigue failures commonly found in other spring loaded fuses.
Alternate Catalog Number LSRK012.TXID Application All general purpose circuits ARRA Compliant N Body Size 13/16 in Dia x 5 in L Body Style Cartridge Buy American Compliant N Catalog Number LLSRK012ID Country of Origin MX Currency USD Element Dual EU RoHS Indicator C Frequency Rating Dual Gross Weight Per Pack 1.8300 lb Gross Weight per Pack Metric 0.83 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536100040 Indicating|Non~Indicating Indicating Item Group 079458-8H Material Fiberglass Mounting Type Holder Rejection|Non~Rejection Time-Delay Response Time window Series LLSRK Short Circuit Rating Ferrule Standard Standard 248-12 UL Listed/CSA Standards RoHS CompliantUL 248-12E81895CSA LR29862Federal Specification WF-1814PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer Sub Brand LLSRK Series Terminal Type Ferrule Type Class RK1 UNSPSC 39121627 UPC 11 07945805526 UPC 12 079458055269 Stock Status NONSTOCK Brand Littelfuse® Manufacturer Littelfuse Inc. Amperage Rating 12 A Interrupt Rating 200/20 kA Voltage Rating 600//300 VAC//VDC All general purpose circuits Time-Delay POWR-PRO™ performance IEC Type 2 "no damage" protection to IEC and NEMA type motor starters This robust design withstands repeated surges within rated time delay without opening needlessly, eliminating downtime caused by power surges or equipment demands Reduce down time the indicating window of the LLSRK_ID immediately identifies the open fuse, if the window is dark, the fuse has opened, It's that simple, maintenance personnel can immediately determine that there is an open fuse Reduce fuse inventory the superior performance of the LLSRK_ID allows it to be used in a variety of applications, thus decreasing fuse inventory Reduce nuisance opening - indicator fuses offer superior time delay and cycling characteristics, which can lengthen fuse life 200 kA at 600 VAC, 20 kA at 300 VDC interrupting rating Blown fuse indicator assembly Granular quartz filling Plated end caps Precision formed short circuit element Fiberglass reinforced pultruded body Elastomeric silicone overload section
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LSRK012.TXID |
| Application | All general purpose circuits |
| ARRA Compliant | N |
| Body Size | 13/16 in Dia x 5 in L |
| Body Style | Cartridge |
| Buy American Compliant | N |
| Catalog Number | LLSRK012ID |
| Country of Origin | MX |
| Currency | USD |
| Element | Dual |
| EU RoHS Indicator | C |
| Frequency Rating | Dual |
| Gross Weight Per Pack | 1.8300 lb |
| Gross Weight per Pack Metric | 0.83 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536100040 |
| Indicating|Non~Indicating | Indicating |
| Item Group | 079458-8H |
| Material | Fiberglass |
| Mounting Type | Holder |
| Rejection|Non~Rejection | Time-Delay |
| Response Time | window |
| Series | LLSRK |
| Short Circuit Rating | Ferrule |
| Standard | Standard 248-12 UL Listed/CSA |
| Standards | RoHS CompliantUL 248-12E81895CSA LR29862Federal Specification WF-1814PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer |
| Sub Brand | LLSRK Series |
| Terminal Type | Ferrule |
| Type | Class RK1 |
| UNSPSC | 39121627 |
| UPC 11 | 07945805526 |
| UPC 12 | 079458055269 |
| Stock Status | NONSTOCK |
| Brand | Littelfuse® |
| Manufacturer | Littelfuse Inc. |
| Amperage Rating | 12 A |
| Interrupt Rating | 200/20 kA |
| Voltage Rating | 600//300 VAC//VDC |
| All general purpose circuits |
| Time-Delay |
| POWR-PRO™ performance |
| IEC Type 2 "no damage" protection to IEC and NEMA type motor starters |
| This robust design withstands repeated surges within rated time delay without opening needlessly, eliminating downtime caused by power surges or equipment demands |
| Reduce down time the indicating window of the LLSRK_ID immediately identifies the open fuse, if the window is dark, the fuse has opened, It's that simple, maintenance personnel can immediately determine that there is an open fuse |
| Reduce fuse inventory the superior performance of the LLSRK_ID allows it to be used in a variety of applications, thus decreasing fuse inventory |
| Reduce nuisance opening - indicator fuses offer superior time delay and cycling characteristics, which can lengthen fuse life |
| 200 kA at 600 VAC, 20 kA at 300 VDC interrupting rating |
| Blown fuse indicator assembly |
| Granular quartz filling |
| Plated end caps |
| Precision formed short circuit element |
| Fiberglass reinforced pultruded body |
| Elastomeric silicone overload section |
