Littelfuse®

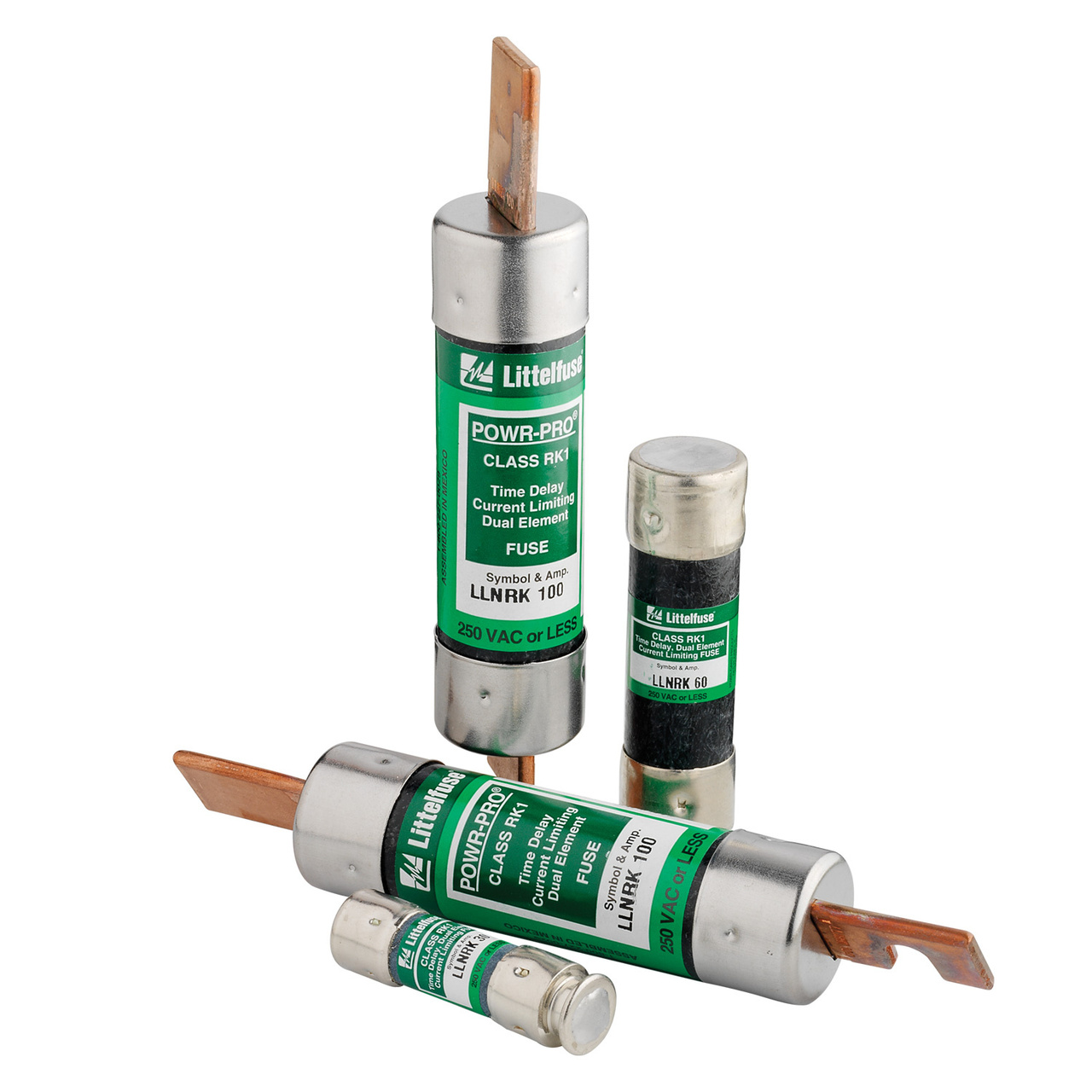

Littelfuse® LLNRK015 POWR-GARD® LLNRK Current Limiting Time Delay Fuse, 15 A, 250 VAC/125 VDC, 200 kA Interrupt, Class RK1
Custom_Product_Images_Illustration
Littelfuse®
Littelfuse® LLNRK015 POWR-GARD® LLNRK Current Limiting Time Delay Fuse, 15 A, 250 VAC/125 VDC, 200 kA Interrupt, Class RK1
SKU9390
MFGR #LLNRK015
Your Cost: $9.29/ea
List: RK1 fuses are extremely current-limiting fuses meaning they greatly reduce or eliminate damage to circuits and equipment under short circuit conditions. Replacing existing Class H, K and RK5 fuses with RK1 fuses is oneof the easiest ways to immediately improve the protection of plant workers and equipment.
RK1 fuses are extremely current-limiting fuses meaning they greatly reduce or eliminate damage to circuits and equipment under short circuit conditions. Replacing existing Class H, K and RK5 fuses with RK1 fuses is oneof the easiest ways to immediately improve the protection of plant workers and equipment.
Alternate Catalog Number LNRK015.T Application All general purpose circuits ARRA Compliant N Body Size 9/16 in Dia x 2 in L Buy American Compliant N Catalog Number LLNRK015 Country of Origin MX Currency USD Element Dual EU RoHS Indicator C Gross Weight Per Pack 1.8300 lb Gross Weight per Pack Metric 0.02 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536100040 Indicating|Non~Indicating Non-Indicating Item Group 079458-9N Material Melamine Mounting Type Holder Rejection|Non~Rejection Rejection Series LLNRK Standard Standard 248-12 UL Listed/CSA Standards RoHS CompliantUL 248-12UL File No. E81895CSA LR29862Federal Specification WF-1814PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer Sub Brand LLNRK Series Terminal Type Ferrule Type Class RK1 UNSPSC 39121609 UPC 11 07945833068 UPC 12 079458330687 Stock Status NONSTOCK Brand Littelfuse® Manufacturer Littelfuse Inc. Amperage Rating 15 A Body Type Cartridge Class RK1 Interrupt Rating 200/20 kA Voltage Rating 250 VAC/125 VDC All general purpose circuits Time-Delay Extremely current limiting - reduces damage to circuits and equipment under short circuit conditions Stops damaging short circuits faster than any mechanical protective device Reduced costs - current limiting design often permits use of readily available, less costly equipment Low resistance design reduces power consumption and utility bills Excellent time delay - true dual element construction, with separate non-fatiguing thermally-reversible spring loaded thermal overload element, withstands repeated surges within rated time delay without opening needlessly Eliminates needless downtime caused by power surges or equipment demands 200 kA at 250 VAC, 20 kA at 125 VDC interrupting rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LNRK015.T |
| Application | All general purpose circuits |
| ARRA Compliant | N |
| Body Size | 9/16 in Dia x 2 in L |
| Buy American Compliant | N |
| Catalog Number | LLNRK015 |
| Country of Origin | MX |
| Currency | USD |
| Element | Dual |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 1.8300 lb |
| Gross Weight per Pack Metric | 0.02 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536100040 |
| Indicating|Non~Indicating | Non-Indicating |
| Item Group | 079458-9N |
| Material | Melamine |
| Mounting Type | Holder |
| Rejection|Non~Rejection | Rejection |
| Series | LLNRK |
| Standard | Standard 248-12 UL Listed/CSA |
| Standards | RoHS CompliantUL 248-12UL File No. E81895CSA LR29862Federal Specification WF-1814PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer |
| Sub Brand | LLNRK Series |
| Terminal Type | Ferrule |
| Type | Class RK1 |
| UNSPSC | 39121609 |
| UPC 11 | 07945833068 |
| UPC 12 | 079458330687 |
| Stock Status | NONSTOCK |
| Brand | Littelfuse® |
| Manufacturer | Littelfuse Inc. |
| Amperage Rating | 15 A |
| Body Type | Cartridge |
| Class | RK1 |
| Interrupt Rating | 200/20 kA |
| Voltage Rating | 250 VAC/125 VDC |
| All general purpose circuits |
| Time-Delay |
| Extremely current limiting - reduces damage to circuits and equipment under short circuit conditions |
| Stops damaging short circuits faster than any mechanical protective device |
| Reduced costs - current limiting design often permits use of readily available, less costly equipment |
| Low resistance design reduces power consumption and utility bills |
| Excellent time delay - true dual element construction, with separate non-fatiguing thermally-reversible spring loaded thermal overload element, withstands repeated surges within rated time delay without opening needlessly |
| Eliminates needless downtime caused by power surges or equipment demands |
| 200 kA at 250 VAC, 20 kA at 125 VDC interrupting rating |
