Littelfuse® LFR604003C POWR-GARD® LFR Fuse Block, 600 VAC, 400 A, 1/0 AWG to 350 kcmil Wire, 3 Poles
Custom_Product_Images_Illustration
Littelfuse® LFR604003C POWR-GARD® LFR Fuse Block, 600 VAC, 400 A, 1/0 AWG to 350 kcmil Wire, 3 Poles
SKU721964
MFGR #LFR604003C
Your Cost: $1,514.01/ea

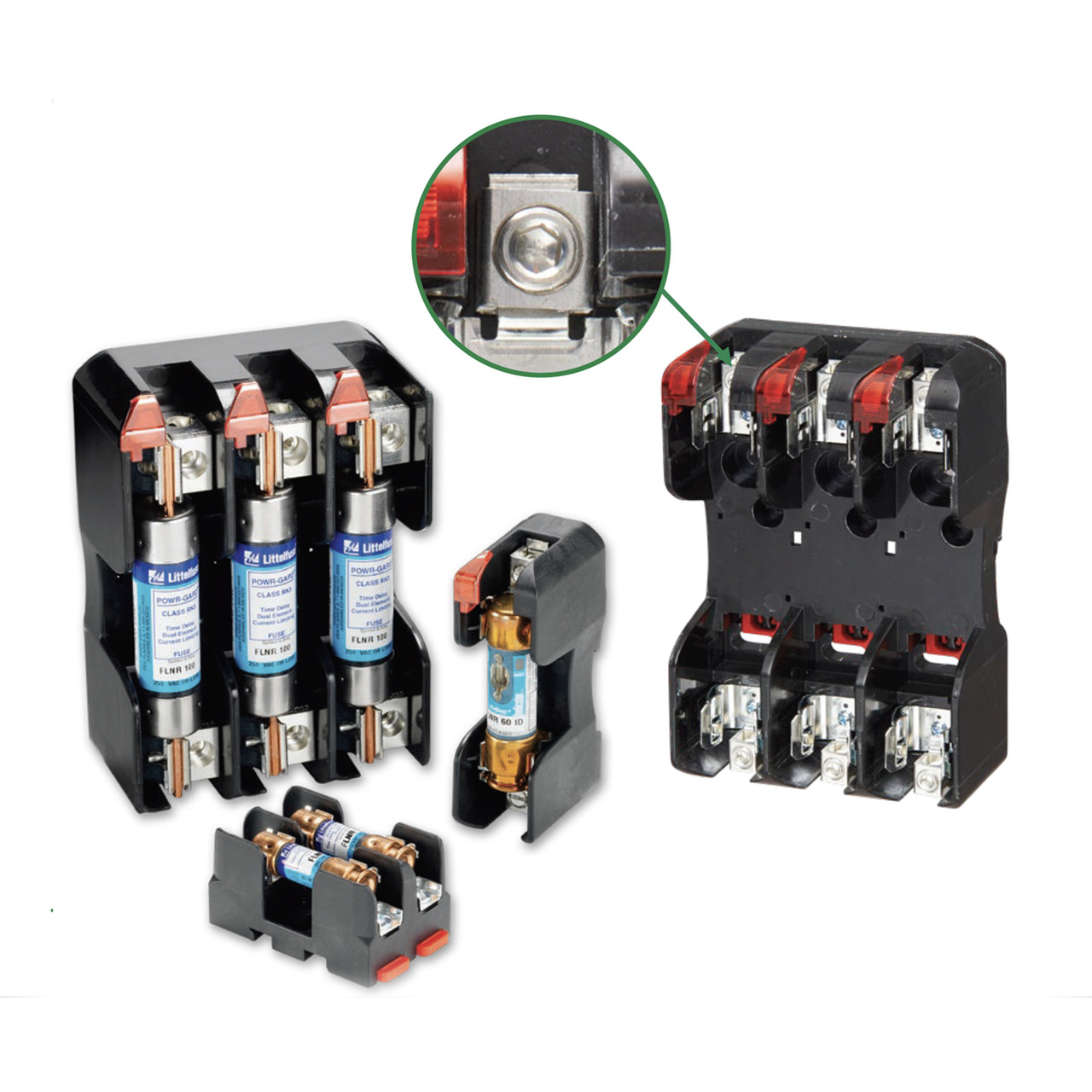

List: The Littelfuse Class H/K5 and R blocks offer many benefits such as indication, snap-to-release DIN rail mounting and universal mounting holes. Class H and Class R fuse blocks are dimensionally the same, but Class R blocks incorporate a rejection feature, which only allows Class R fuses to be inserted.
The Littelfuse Class H/K5 and R blocks offer many benefits such as indication, snap-to-release DIN rail mounting and universal mounting holes. Class H and Class R fuse blocks are dimensionally the same, but Class R blocks incorporate a rejection feature, which only allows Class R fuses to be inserted.
Alternate Catalog Number LFR604003C ARRA Compliant N Buy American Compliant N Catalog Number LFR604003C Connection Type Box Lug Country of Origin CN Currency USD Dimensions 14.5 in L x 10.5 in W x 3.32 in H EU RoHS Indicator Y Fuse Diameter 2.406 in Fuse Length 8.626 in Gross Weight Per Pack 0.1500 lb Gross Weight per Pack Metric 0.07 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536908585 Material Thermoplastic Mounting Type DIN Rail Number Of Poles 3 Series LFR Standard UL Listed and CSA Certified RoHS Standards RoHS CompliantUL ListedCSA CertifiedPROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer Sub Brand LFR Series Suitable For Use With FLSR/FLSR_ID, KLSR, LLSRK/LLSRK_ID and IDSR Series Fuse Temperature Rating 130 °C UNSPSC 39121629 UPC 11 07945818141 UPC 12 079458181418 Stock Status NONSTOCK Brand Littelfuse® Manufacturer Littelfuse Inc. Amperage Rating 400 A Class R Power Rating UL Listed and CSA Certified RoHS Type Fuse Block Voltage Rating 600 VAC Wire Size 1/0 AWG to 350 kcmil Universal mounting holes Universal mounting holes for easy replacement One hand release from DIN rail for ferrule style fuses Reinforced fuse clips are standard on all class H and class R fuse blocks <0.6 ma at 600 V leakage current 200 kA rms symmetrical withstand rating Clip designs maximize electrical contact and minimize heat rise DIN-Rail releasable for all non-knife blade style fuses UL94 V-0 flammability rating Lead (Pb) free
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | LFR604003C |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LFR604003C |
| Connection Type | Box Lug |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 14.5 in L x 10.5 in W x 3.32 in H |
| EU RoHS Indicator | Y |
| Fuse Diameter | 2.406 in |
| Fuse Length | 8.626 in |
| Gross Weight Per Pack | 0.1500 lb |
| Gross Weight per Pack Metric | 0.07 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536908585 |
| Material | Thermoplastic |
| Mounting Type | DIN Rail |
| Number Of Poles | 3 |
| Series | LFR |
| Standard | UL Listed and CSA Certified RoHS |
| Standards | RoHS CompliantUL ListedCSA CertifiedPROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer |
| Sub Brand | LFR Series |
| Suitable For Use With | FLSR/FLSR_ID, KLSR, LLSRK/LLSRK_ID and IDSR Series Fuse |
| Temperature Rating | 130 °C |
| UNSPSC | 39121629 |
| UPC 11 | 07945818141 |
| UPC 12 | 079458181418 |
| Stock Status | NONSTOCK |
| Brand | Littelfuse® |
| Manufacturer | Littelfuse Inc. |
| Amperage Rating | 400 A |
| Class | R |
| Power Rating | UL Listed and CSA Certified RoHS |
| Type | Fuse Block |
| Voltage Rating | 600 VAC |
| Wire Size | 1/0 AWG to 350 kcmil |
| Universal mounting holes |
| Universal mounting holes for easy replacement |
| One hand release from DIN rail for ferrule style fuses |
| Reinforced fuse clips are standard on all class H and class R fuse blocks |
| <0.6 ma at 600 V leakage current |
| 200 kA rms symmetrical withstand rating |
| Clip designs maximize electrical contact and minimize heat rise |
| DIN-Rail releasable for all non-knife blade style fuses |
| UL94 V-0 flammability rating |
| Lead (Pb) free |
