Littelfuse® LFR25100-3CID POWR-GARD® LFR Indicating Fuse Block, 250 VAC, 100 A, 14 to 10 AWG Wire, 3 Poles
Power Fuse Blocks
609150
MFG #: LFR25100-3CID
Littelfuse®
115.10000
/ ea

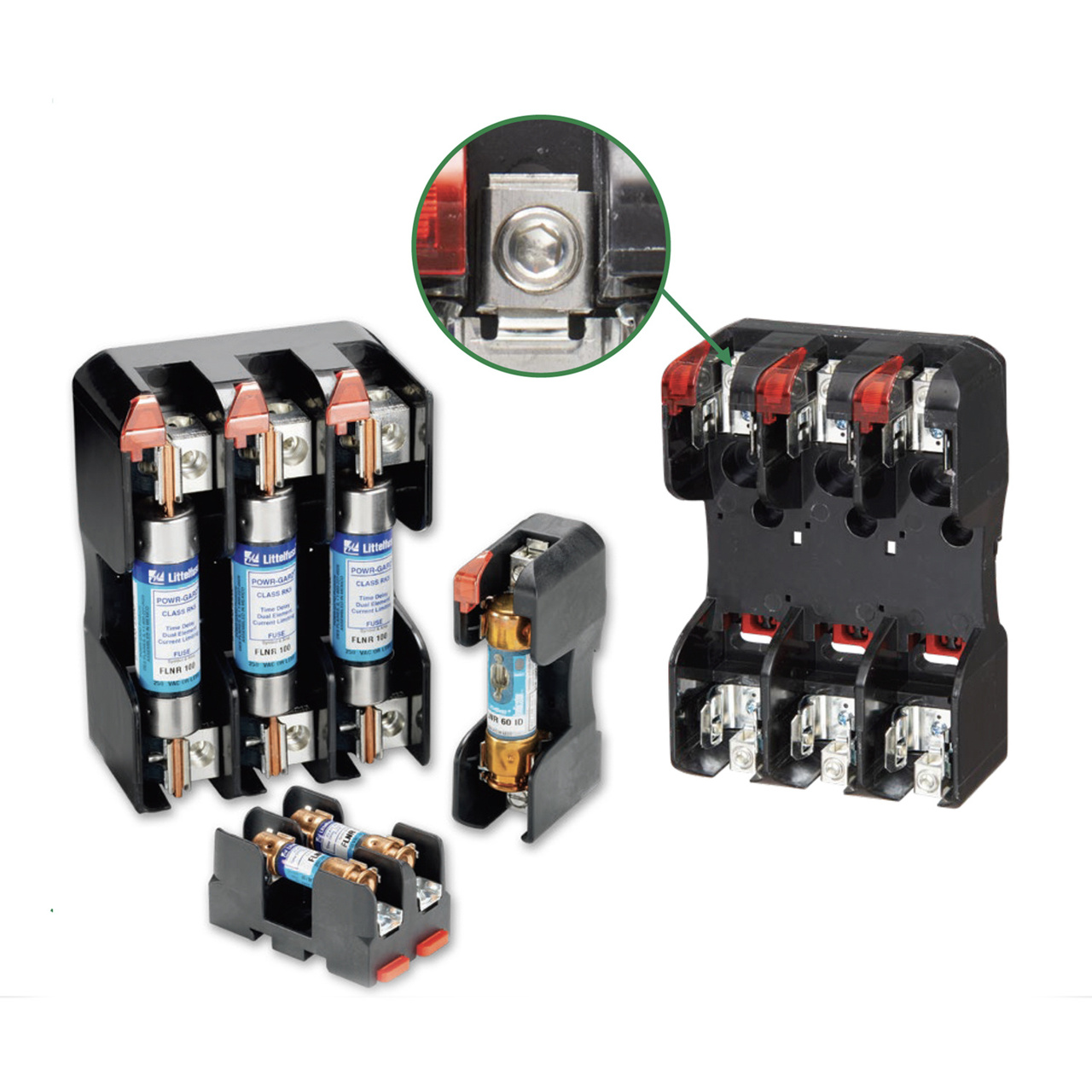

The Littelfuse Class H/K5 and R blocks offer many benefits such as indication, snap-to-release DIN rail mounting and universal mounting holes. Class H and Class R fuse blocks are dimensionally the same, but Class R blocks incorporate a rejection feature, which only allows Class R fuses to be inserted.
- 3D Rendering URL(3D Rendering URL)
- Brochure URL - 11468_ZMLGDEHVFOQAW4NX.pdf(Brochure URL)
- Brochure URL - littelfuse_industrial_distributor_handbook_pf159.pdf(Brochure URL)
- http://www.littelfuse.com(Seller Home Page URL)
- Spec Sheet URL - littelfuse_fuse_block_lfr_lfh_datasheet.pdf(Spec Sheet URL)
- Tech Drawing URL(Tech Drawing URL)
- www.littelfuse.com(Seller Home Page URL)
- Features
| Universal mounting holes |
| Universal mounting holes for easy replacement |
| One hand release from DIN rail for ferrule style fuses |
| Reinforced fuse clips are standard on all class H and class R fuse blocks |
| <0.6 ma at 600 V leakage current |
| 200 kA rms symmetrical withstand rating |
| Clip designs maximize electrical contact and minimize heat rise |
| DIN-Rail releasable for all non-knife blade style fuses |
| UL94 V-0 flammability rating |
| Lead (Pb) free |
