Littelfuse®

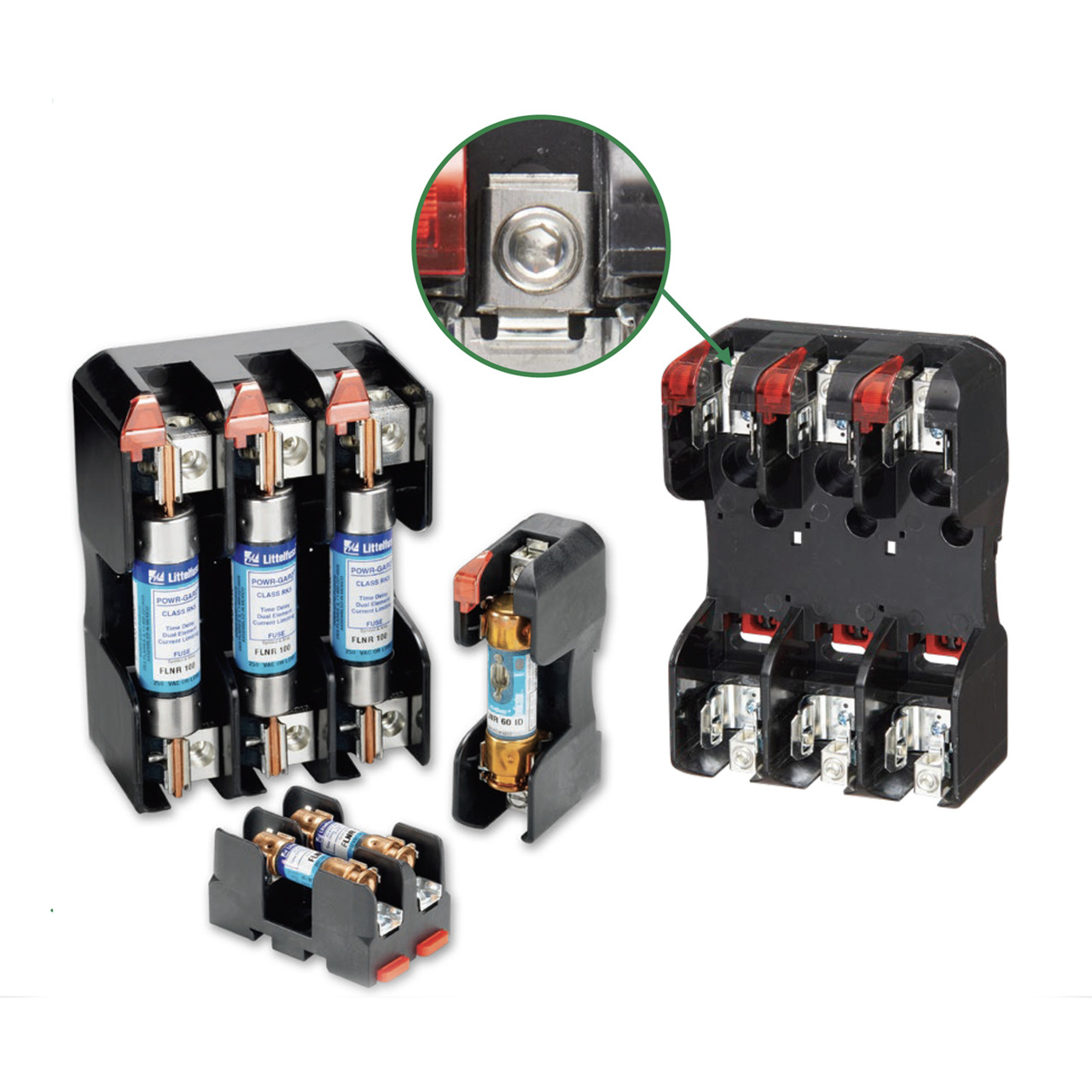

Littelfuse® LFR25030-3C POWR-GARD® LFR Fuse Block, 250 VAC, 30 A, 22 to 10 AWG Wire, 3 Poles
Custom_Product_Images_Illustration
Littelfuse®
Littelfuse® LFR25030-3C POWR-GARD® LFR Fuse Block, 250 VAC, 30 A, 22 to 10 AWG Wire, 3 Poles
SKU586160
MFGR #LFR25030-3C
Your Cost: $58.04/ea
List: The Littelfuse Class H/K5 and R blocks offer many benefits such as indication, snap-to-release DIN rail mounting and universal mounting holes. Class H and Class R fuse blocks are dimensionally the same, but Class R blocks incorporate a rejection feature, which only allows Class R fuses to be inserted.
The Littelfuse Class H/K5 and R blocks offer many benefits such as indication, snap-to-release DIN rail mounting and universal mounting holes. Class H and Class R fuse blocks are dimensionally the same, but Class R blocks incorporate a rejection feature, which only allows Class R fuses to be inserted.
Alternate Catalog Number LFR250303C ARRA Compliant N Buy American Compliant N Catalog Number LFR25030-3C Connection Type Box Lug Country of Origin CN Currency USD Dimensions 3.15 in L x 2.94 in W x 1.58 in H EU RoHS Indicator Y Fuse Diameter 0.563 in Fuse Length 2 in Gross Weight Per Pack 0.1500 lb Gross Weight per Pack Metric 0.07 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536908585 Material Thermoplastic Mounting Type DIN Rail Number Of Poles 3 Series LFR Standard UL Listed and CSA Certified RoHS Standards RoHS CompliantUL ListedCSA Certified94 V-0 Flammability Rating Sub Brand LFR Series Suitable For Use With FLNR/FLNR_ID, KLNR and LLNRK Series Fuse Temperature Rating 125 °C UNSPSC 39121629 UPC 11 07945818172 UPC 12 079458181722 Stock Status NONSTOCK Brand Littelfuse® Manufacturer Littelfuse Inc. Amperage Rating 30 A Class R Type Fuse Block Voltage Rating 250 VAC Wire Size 22 to 10 AWG Universal mounting holes Universal mounting holes for easy replacement Only 1-hand is required to release from DIN rail (lock open lock closed) Reinforced fuse clips are standard on all class H and class R fuse blocks <0.6 mA at 600 VAC leakage current 200 kA rms symmetrical withstand rating Clip designs maximize electrical contact and minimize heat rise DIN rail releasable for all non-knife blade style fuses Lead (Pb) free Indication offered on most 250 and 600 VAC versions
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | LFR250303C |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LFR25030-3C |
| Connection Type | Box Lug |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 3.15 in L x 2.94 in W x 1.58 in H |
| EU RoHS Indicator | Y |
| Fuse Diameter | 0.563 in |
| Fuse Length | 2 in |
| Gross Weight Per Pack | 0.1500 lb |
| Gross Weight per Pack Metric | 0.07 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536908585 |
| Material | Thermoplastic |
| Mounting Type | DIN Rail |
| Number Of Poles | 3 |
| Series | LFR |
| Standard | UL Listed and CSA Certified RoHS |
| Standards | RoHS CompliantUL ListedCSA Certified94 V-0 Flammability Rating |
| Sub Brand | LFR Series |
| Suitable For Use With | FLNR/FLNR_ID, KLNR and LLNRK Series Fuse |
| Temperature Rating | 125 °C |
| UNSPSC | 39121629 |
| UPC 11 | 07945818172 |
| UPC 12 | 079458181722 |
| Stock Status | NONSTOCK |
| Brand | Littelfuse® |
| Manufacturer | Littelfuse Inc. |
| Amperage Rating | 30 A |
| Class | R |
| Type | Fuse Block |
| Voltage Rating | 250 VAC |
| Wire Size | 22 to 10 AWG |
| Universal mounting holes |
| Universal mounting holes for easy replacement |
| Only 1-hand is required to release from DIN rail (lock open lock closed) |
| Reinforced fuse clips are standard on all class H and class R fuse blocks |
| <0.6 mA at 600 VAC leakage current |
| 200 kA rms symmetrical withstand rating |
| Clip designs maximize electrical contact and minimize heat rise |
| DIN rail releasable for all non-knife blade style fuses |
| Lead (Pb) free |
| Indication offered on most 250 and 600 VAC versions |
