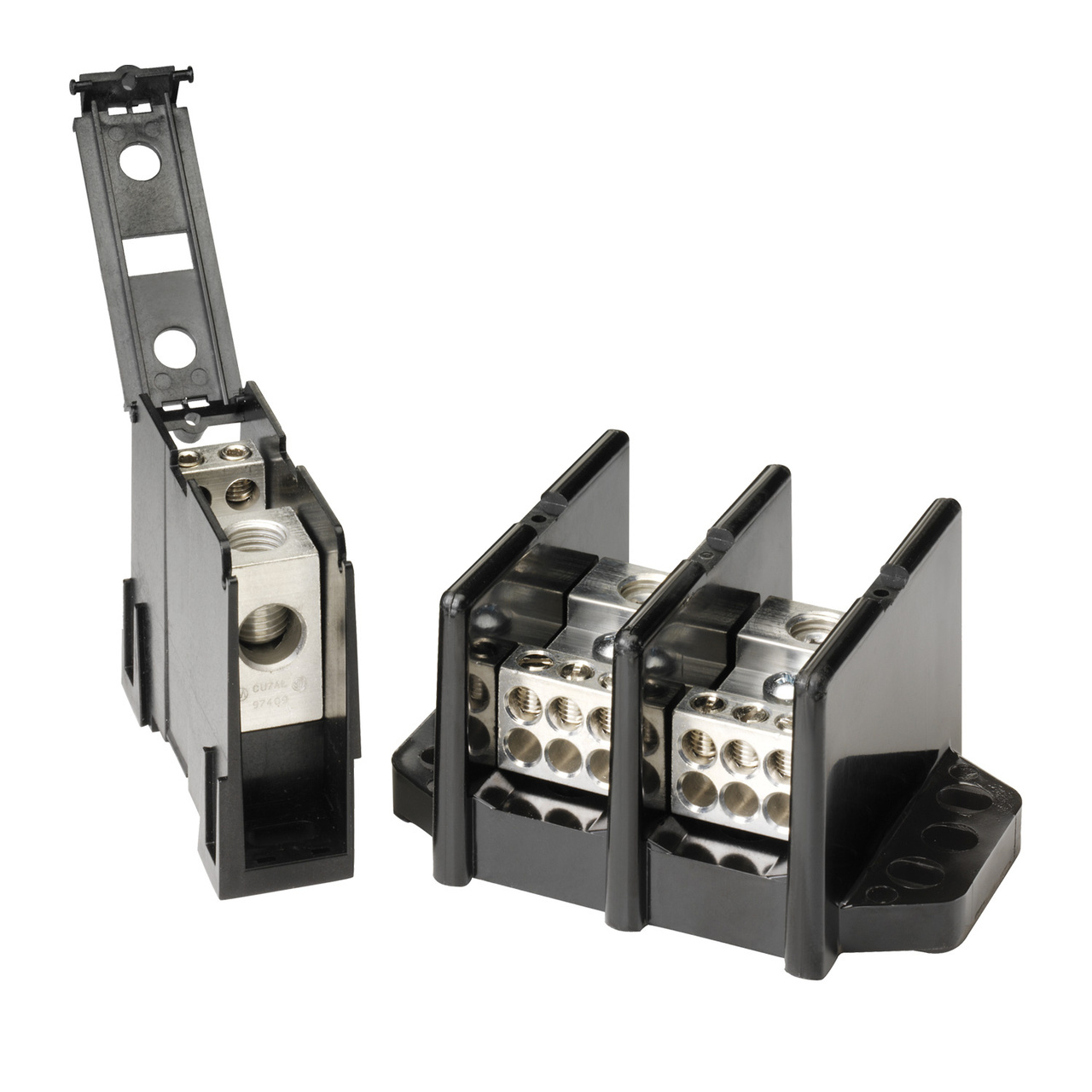

Littelfuse® LFD0401-3 POWR-GARD® POWR-BLOKS LD Splicer Terminal Power Distribution Block, 600 VAC, 175 A, 3 Poles, Thermoplastic
Multi Pole Distribution Blocks
703171
MFG #: LFD0401-3
Littelfuse®
72.99000
/ ea
POWR-BLOKS™ power distribution and splicer blocks offer a safe, convenient way of splicing cables, providing a fixed junction tap-off point, or splitting primary power into secondary circuits. Blocks have oneor two primary inputs, with up to twelve secondary outputs per pole. The number of poles available ranges from oneto four.
- 3D Rendering URL(3D Rendering URL)
- Brochure URL - 11468_ZMLGDEHVFOQAW4NX.pdf(Brochure URL)
- Brochure URL - littelfuse_industrial_distributor_handbook_pf159.pdf(Brochure URL)
- http://www.littelfuse.com(Seller Home Page URL)
- Spec Sheet URL - 11468_MA9L42YVSJOHUGQ1.pdf(Spec Sheet URL)
- Spec Sheet URL - littelfuse_powrbloks_ld_ls_datasheet.pdf(Spec Sheet URL)
- Tech Bulletin URL(Tech Bulletin URL)
- Tech Bulletin URL - 11468_YNSWF9J52A68X13K.pdf(Tech Bulletin URL)
- Tech Drawing URL(Tech Drawing URL)
- Applications
- Features
| Anywhere power needs to be distributed to more than 1 load |
| Bolt-in mount |
| Two thread cutting screws are furnished for each cover |
| Covers are slotted for easy installation |
| (1) 14 to 2/0 AWG line, (6) 14 to 4/0 AWG load rated wire range |
| (1) box lug primary, (6) box lug secondary |
| Covers are slotted for easy installation |
| (1) 14 to 2/0 AWG line, (6) 14 to 4/0 AWG load rated wire range |
| (1) box lug primary, (6) box lug secondary |
