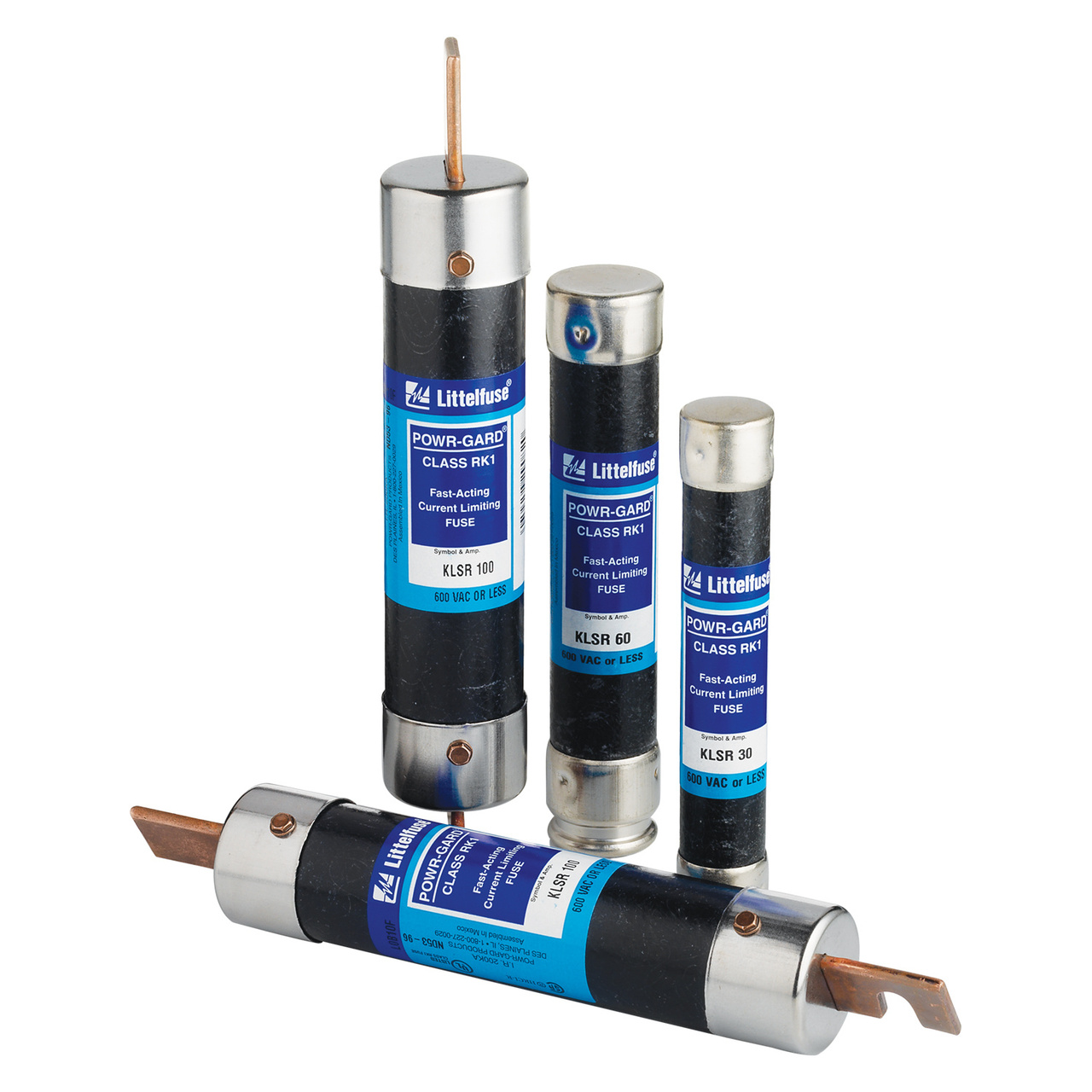

Littelfuse® KLSR035 POWR-GARD® KLSR Current Limiting High Speed Fast Acting Fuse, 35 A, 600 VAC/300 VDC, 200/20 kA Interrupt
Class RK1 Fuses
74031
MFG #: KLSR035
Littelfuse®
52.79000
/ ea
KLSR series RK1 fuses were the earliest type of current-limiting fuse developed. Their single-element, silver link design enables them to provide Fast-Acting overload and short circuit protection. When used to protect inductive loads such as motors, solenoids, and transformers, KLSR series fuses must be greatly oversized to prevent opening the fuses on harmless inrush currents. In such applications, KLSR series fuses may only provide short circuit protection.
- 3D Rendering URL(3D Rendering URL)
- Brochure URL(Brochure URL)
- Brochure URL - 11468_5FMXQKG764LCHR8I.pdf(Brochure URL)
- Catalog URL - Littelfuse_315_250P_Catalog.pdf(Catalog URL)
- http://www.littelfuse.com(Seller Home Page URL)
- Spec Sheet URL - 11468_N4E283MLDPXKVZTG.pdf(Spec Sheet URL)
- Spec Sheet URL - littelfuse_fuse_klnr_klsr_datasheet.pdf(Spec Sheet URL)
- Tech Bulletin URL(Tech Bulletin URL)
- Tech Bulletin URL - 11468_80Y1OURLJQBTXWCP.pdf(Tech Bulletin URL)
- Tech Drawing URL(Tech Drawing URL)
- Tech Drawing URL - 11468_452F8X6TYEQWIRGS.pdf(Tech Drawing URL)
- Applications
- Features
| mechanical indication |
| Time-Delay |
| Extremely current limiting - stops damaging short circuit current faster than any mechanical protective device |
| Fast-acting - provides fast-acting protection to equipment such as variable speed drives, rectifiers and other equipment containing surge-sensitive components |
| Reliable interruption of all over currents up to 200000 A |
| Longer equipment life - current limiting design reduces damage to equipment caused by heating and magnetic effects of short circuit currents |
| Often permits use of readily available, less costly equipment |
| North American style |
| 200 kA at 600 VAC, 20 kA at 300 VDC interrupting rating |
| North American style |
| 200 kA RMS symmetrical at 600 VAC/20 kA at 300 VAC |
