Littelfuse®
Littelfuse® KLPC600 POWR-GARD® KLPC Current Limiting Time Delay Fuse, 600 A, 600 VAC/480 VDC, 20/200 kA Interrupt, Class L

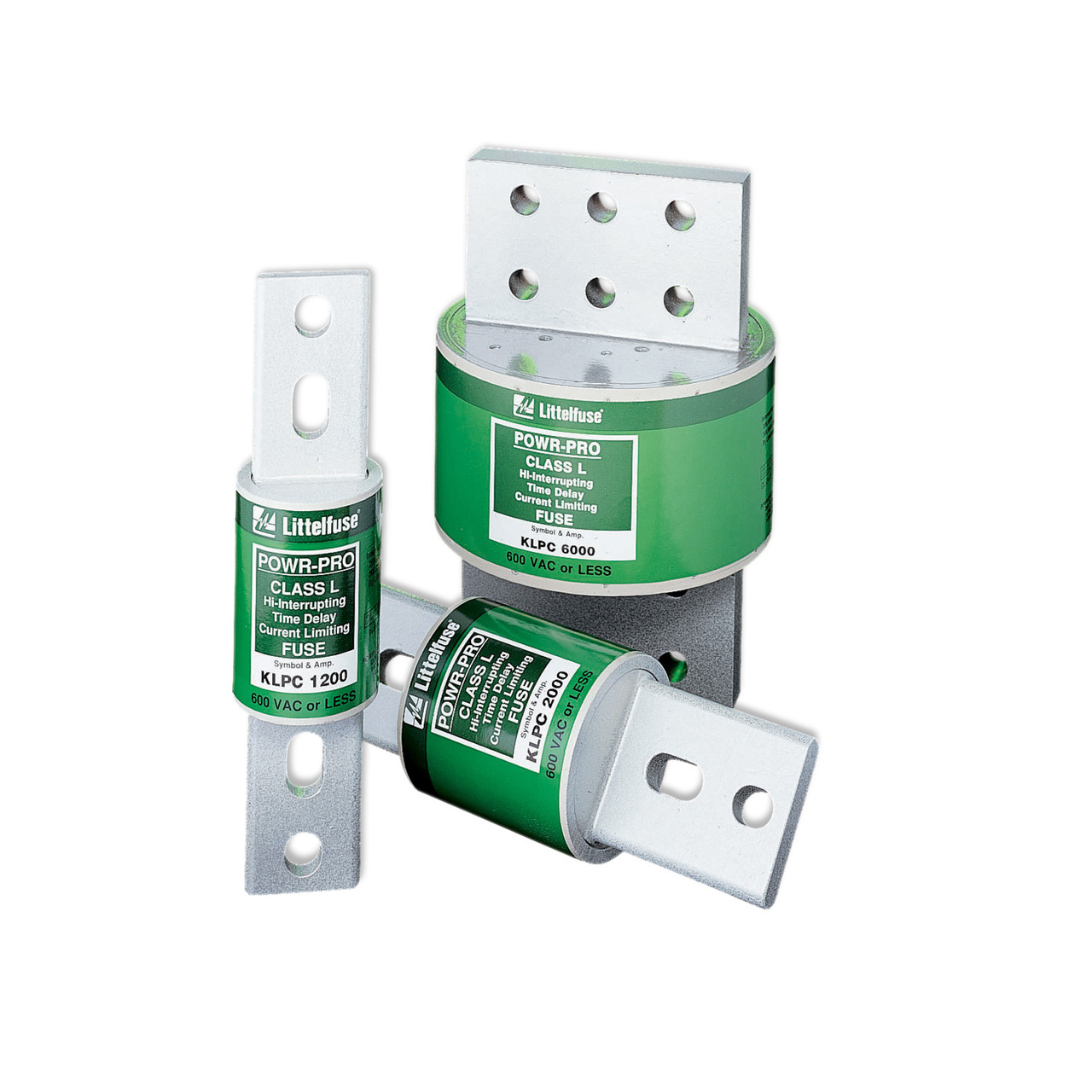

Custom_Product_Images_Illustration
Littelfuse®
Littelfuse® KLPC600 POWR-GARD® KLPC Current Limiting Time Delay Fuse, 600 A, 600 VAC/480 VDC, 20/200 kA Interrupt, Class L
SKU74039
MFGR #KLPC600
Your Cost: $730.36/ea
List: KLPC series POWR-PRO fuses provide ideal over current protection for circuits from 200 through 6000 amperes. KLPC series POWR-PRO fuses specification-grade construction and performance meet or exceed the most stringent project specifications: 99.9% pure silver links, silver-plated copper end bells, glass-reinforced melamine bodies, O-ring seals between body and end bells, and granular quartz fillers. KLPC series POWR-PRO fuses are the only UL listed Class L fuses that provide a minimum of ten seconds time delay at 500% rated current and are also as current-limiting as the fastest Class L fuse on the market. On average, the peak let-through currents of KLPC series fuses are 10% less than any other "time-delay" Class L fuse.
KLPC series POWR-PRO fuses provide ideal over current protection for circuits from 200 through 6000 amperes. KLPC series POWR-PRO fuses specification-grade construction and performance meet or exceed the most stringent project specifications: 99.9% pure silver links, silver-plated copper end bells, glass-reinforced melamine bodies, O-ring seals between body and end bells, and granular quartz fillers. KLPC series POWR-PRO fuses are the only UL listed Class L fuses that provide a minimum of ten seconds time delay at 500% rated current and are also as current-limiting as the fastest Class L fuse on the market. On average, the peak let-through currents of KLPC series fuses are 10% less than any other "time-delay" Class L fuse.
Alternate Catalog Number KLPC600.X Application small motors/high inrush ARRA Compliant N Body Size 2-1/2 in Dia x 8-5/8 in L Buy American Compliant N Catalog Number KLPC600 Country of Origin MX Currency USD EU RoHS Indicator N Gross Weight Per Pack 3.6600 lb Gross Weight per Pack Metric 1.64 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536100040 Indicating|Non~Indicating Non-Indicating Item Group 079458-5J Material Melamine Mounting Type Bolt Series KLPC Standard Supplemental Protection Standards RoHS CompliantUL 248-10, E71611CSA LR29862PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer Sub Brand POWR-GARD FLM Series Terminal Type Knife Blade Type UL Supplemental UNSPSC 39121609 UPC 11 07945829507 UPC 12 079458295078 Stock Status NONSTOCK Brand Littelfuse® Manufacturer Littelfuse Inc. Amperage Rating 2.8 A Body Type Cylindrical Class L Interrupt Rating 200/20 kA Voltage Rating 600 VAC/480 VDC small motors/high inrush Time-Delay Eliminate unnecessary downtime KLPC POWR-PRO® series fuses time delay withstands system surges and keeps your circuits in service Best protection for system components Co-ordinates with other system components KLPC series fuses provide maximum coordination with fuses and circuit breakers both on the line and load side of the fuses Eliminate need to oversize fuses This may permit the use of smaller less expensive switches and since the lower rated fuses are more current-limiting, equipment receives even better protection 300 kA AC interrupting rating (self certified) Silver links, silver plated copper end bells, glass reinforced melamine bodies, o-ring seals between body and end bells and granular quartz fillers Bolt-On blade termina
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | KLPC600.X |
| Application | small motors/high inrush |
| ARRA Compliant | N |
| Body Size | 2-1/2 in Dia x 8-5/8 in L |
| Buy American Compliant | N |
| Catalog Number | KLPC600 |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | N |
| Gross Weight Per Pack | 3.6600 lb |
| Gross Weight per Pack Metric | 1.64 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536100040 |
| Indicating|Non~Indicating | Non-Indicating |
| Item Group | 079458-5J |
| Material | Melamine |
| Mounting Type | Bolt |
| Series | KLPC |
| Standard | Supplemental Protection |
| Standards | RoHS CompliantUL 248-10, E71611CSA LR29862PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer |
| Sub Brand | POWR-GARD FLM Series |
| Terminal Type | Knife Blade |
| Type | UL Supplemental |
| UNSPSC | 39121609 |
| UPC 11 | 07945829507 |
| UPC 12 | 079458295078 |
| Stock Status | NONSTOCK |
| Brand | Littelfuse® |
| Manufacturer | Littelfuse Inc. |
| Amperage Rating | 2.8 A |
| Body Type | Cylindrical |
| Class | L |
| Interrupt Rating | 200/20 kA |
| Voltage Rating | 600 VAC/480 VDC |
| small motors/high inrush |
| Time-Delay |
| Eliminate unnecessary downtime |
| KLPC POWR-PRO® series fuses time delay withstands system surges and keeps your circuits in service |
| Best protection for system components |
| Co-ordinates with other system components |
| KLPC series fuses provide maximum coordination with fuses and circuit breakers both on the line and load side of the fuses |
| Eliminate need to oversize fuses |
| This may permit the use of smaller less expensive switches and since the lower rated fuses are more current-limiting, equipment receives even better protection |
| 300 kA AC interrupting rating (self certified) |
| Silver links, silver plated copper end bells, glass reinforced melamine bodies, o-ring seals between body and end bells and granular quartz fillers |
| Bolt-On blade termina |
