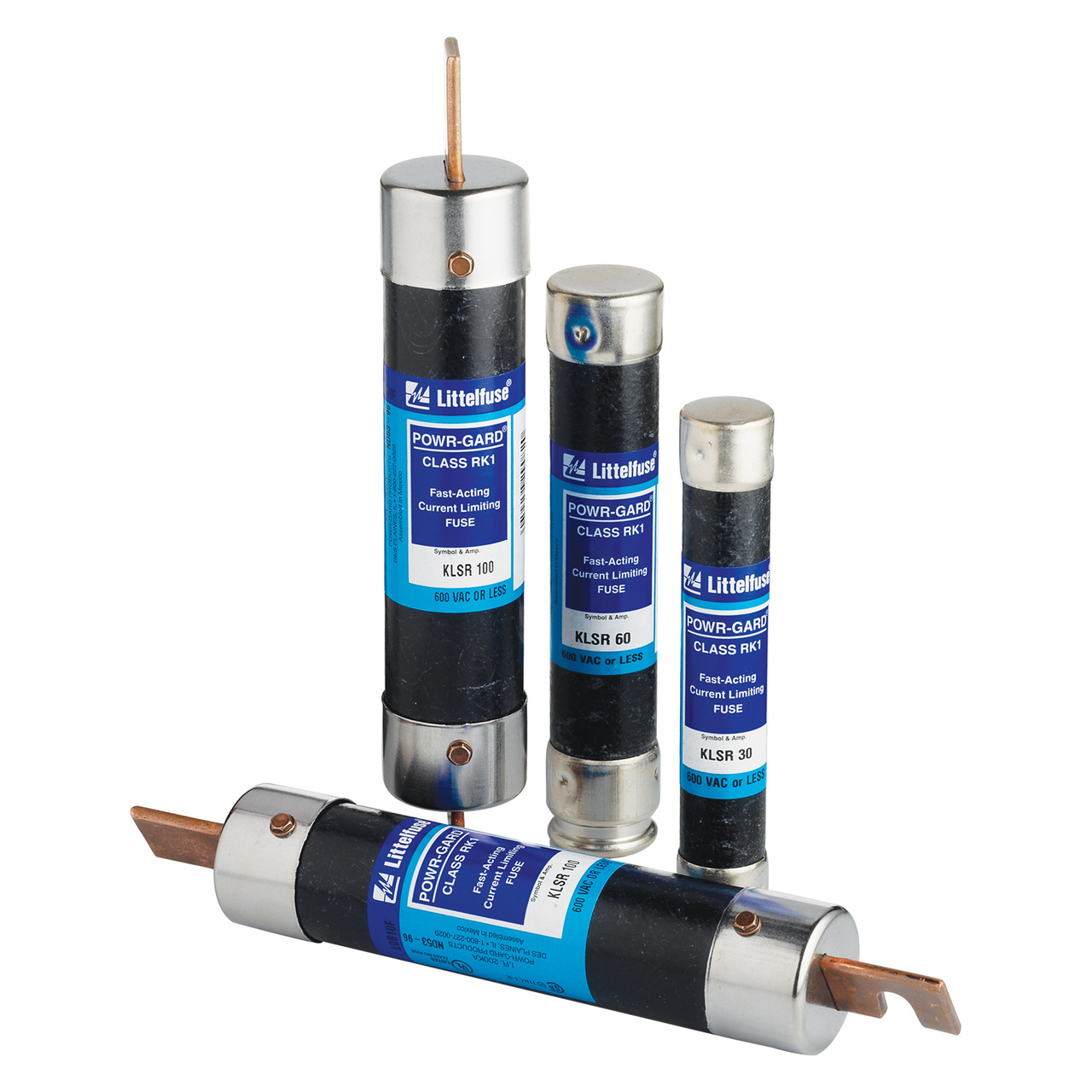

Littelfuse® KLNR015 POWR-GARD® KLNR Current Limiting High Speed Fast Acting Fuse, 15 A, 250 VAC/125 VDC, 200/20 kA Interrupt
Class RK1 Fuses
44536
MFG #: KLNR015
Littelfuse®
37.90000
/ ea
KLNR series RK1 fuses were the earliest type of current-limiting fuse developed. Their single-element, silver link design enables them to provide Fast-Acting overload and short circuit protection. When used to protect inductive loads such as motors, solenoids, and transformers, KLNR series fuses must be greatly oversized to prevent opening the fuses on harmless inrush currents. In such applications, KLNR series fuses may only provide short circuit protection.
- Brochure URL - littelfuse_industrial_distributor_handbook_pf159.pdf(Brochure URL)
- http://www.littelfuse.com(WEB SELLER HOME PAGE URL)
- Tech Bulletin URL(Tech Bulletin URL)
- Tech Drawing URL(Tech Drawing URL)
- WEB CATALOG URL - Littelfuse_315_250P_Catalog.pdf(WEB CATALOG URL)
- WEB SPEC SHEET URL - littelfuse_fuse_klnr_klsr_datasheet.pdf(WEB SPEC SHEET URL)
- Applications
- Features
| DC control circuits/Solar |
| Fast-Acting |
| Extremely current limiting - stops damaging short circuit current faster than any mechanical protective device |
| Fast-acting - provides fast-acting protection to equipment such as variable speed drives, rectifiers and other equipment containing surge-sensitive components |
| Reliable interruption of all over currents up to 200000 A |
| Longer equipment life - current limiting design reduces damage to equipment caused by heating and magnetic effects of short circuit currents |
| Often permits use of readily available, less costly equipment |
| North American style |
| 200 kA at 250 VAC, 20 kA at 125 VDC interrupting rating |
| North American style |
| 200 kA RMS symmetrical at 250 VAC/20 kA at 125 VDC |
