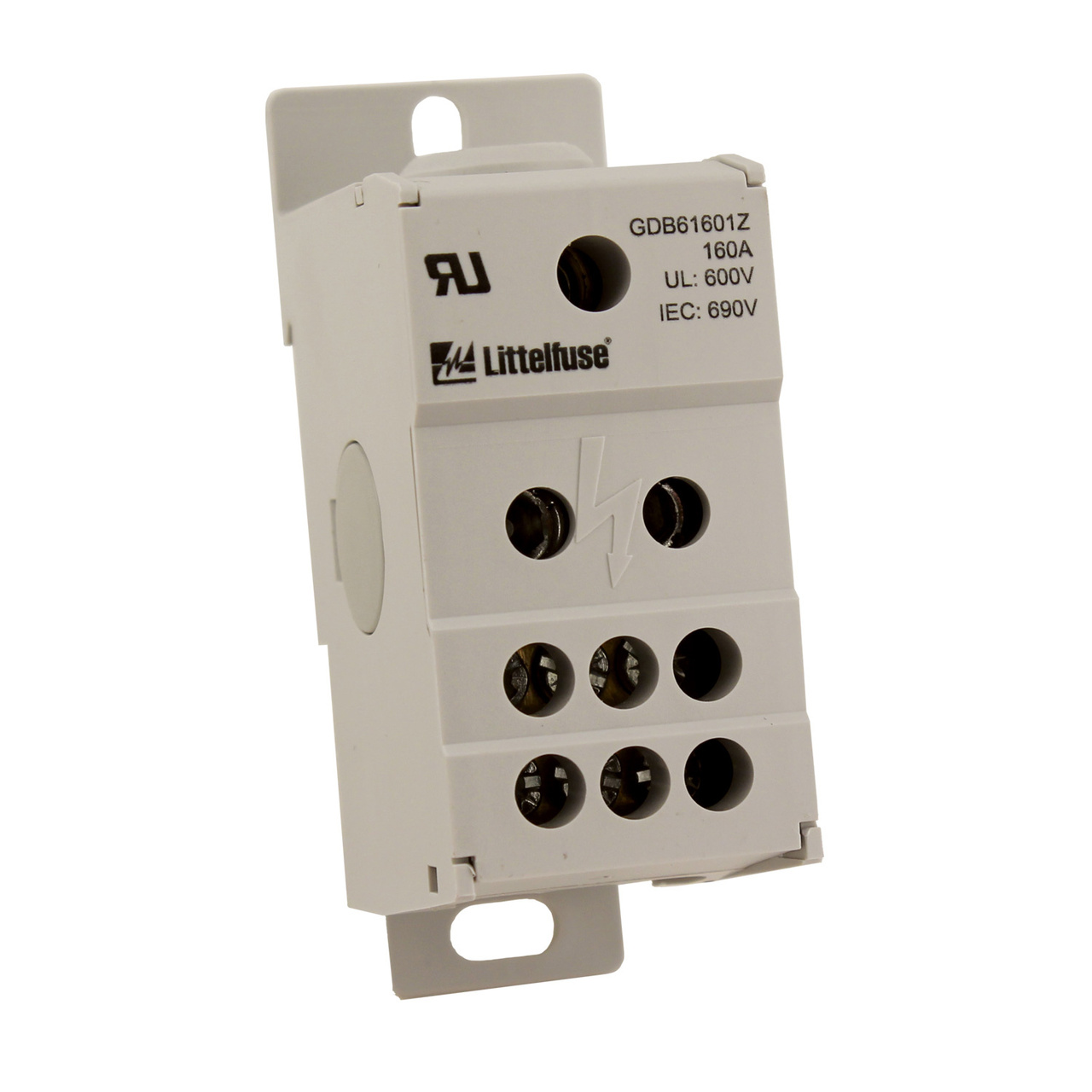

Littelfuse® GDB61601Z POWR-GARD® GDB Power Distribution Block, 600 VAC/VDC, 160 A, 1 Pole, 8 to 2/0 AWG Wire, Thermoplastic
Custom_Product_Images_Illustration
Littelfuse® GDB61601Z POWR-GARD® GDB Power Distribution Block, 600 VAC/VDC, 160 A, 1 Pole, 8 to 2/0 AWG Wire, Thermoplastic
SKUPDW~9972066
MFGR #GDB61601Z
Your Cost: $68.99/ea
List: POWR-BLOKSTM Global Distribution Blocks add safety and mounting versatility to our distribution block solutions. The Global Distribution Blocks are approved to UL standards. The Global Distribution Blocks are IP20 finger safe to reduce the risk of contact and eliminate the need for block or panel covers. Installation is quick and easy, all blocks can be mounted on DIN rail or to the panel.
POWR-BLOKSTM Global Distribution Blocks add safety and mounting versatility to our distribution block solutions. The Global Distribution Blocks are approved to UL standards. The Global Distribution Blocks are IP20 finger safe to reduce the risk of contact and eliminate the need for block or panel covers. Installation is quick and easy, all blocks can be mounted on DIN rail or to the panel.
Alternate Catalog Number GDB61601Z ARRA Compliant N Buy American Compliant N Catalog Number GDB61601Z Country of Origin FR Currency USD Dimensions 3.62 in H x 1.38 in W x 2 in D EU RoHS Indicator Y Fuse Type Class J Gross Weight Per Pack 1 lb Harmonization Tariff Schedule Code 8536908585 Number Of Poles 1 Primary Connections|Pole 1 Secondary Connection|Pole 6 Series GDB Short Circuit Current Rating 100 kA Standard UL LISTED Standards RoHS CompliantCE CertifiedcUL ListedIEC 60947-7-1 RatedUL File No. E309688 Sub Brand GDB Type Touch Safe UNSPSC 39121629 UPC 11 07945896383 UPC 12 079458963830 Stock Status NONSTOCK Brand Littelfuse® Manufacturer Littelfuse Inc. Amperage Rating 160 A Material Thermoplastic Voltage Rating 600 VAC//VDC Wire Size 8 to 2/0 AWG Din Rail or Panel Mount Space saving design Integrated touch-safe cover to increase safety Reliable brass connections for excellent continuity in a smaller design 8 to 2/0 AWG brass line, 14 to 4 AWG brass load 35.5 in-lb torque line, 17.5 in-lb torque load Tough safe Global distribution block (1) screw primary, (6) slotted screw secondary 5 mm hex screw line
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | GDB61601Z |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | GDB61601Z |
| Country of Origin | FR |
| Currency | USD |
| Dimensions | 3.62 in H x 1.38 in W x 2 in D |
| EU RoHS Indicator | Y |
| Fuse Type | Class J |
| Gross Weight Per Pack | 1 lb |
| Harmonization Tariff Schedule Code | 8536908585 |
| Number Of Poles | 1 |
| Primary Connections|Pole | 1 |
| Secondary Connection|Pole | 6 |
| Series | GDB |
| Short Circuit Current Rating | 100 kA |
| Standard | UL LISTED |
| Standards | RoHS CompliantCE CertifiedcUL ListedIEC 60947-7-1 RatedUL File No. E309688 |
| Sub Brand | GDB |
| Type | Touch Safe |
| UNSPSC | 39121629 |
| UPC 11 | 07945896383 |
| UPC 12 | 079458963830 |
| Stock Status | NONSTOCK |
| Brand | Littelfuse® |
| Manufacturer | Littelfuse Inc. |
| Amperage Rating | 160 A |
| Material | Thermoplastic |
| Voltage Rating | 600 VAC//VDC |
| Wire Size | 8 to 2/0 AWG |
| Din Rail or Panel Mount |
| Space saving design |
| Integrated touch-safe cover to increase safety |
| Reliable brass connections for excellent continuity in a smaller design |
| 8 to 2/0 AWG brass line, 14 to 4 AWG brass load |
| 35.5 in-lb torque line, 17.5 in-lb torque load |
| Tough safe |
| Global distribution block |
| (1) screw primary, (6) slotted screw secondary |
| 5 mm hex screw line |
