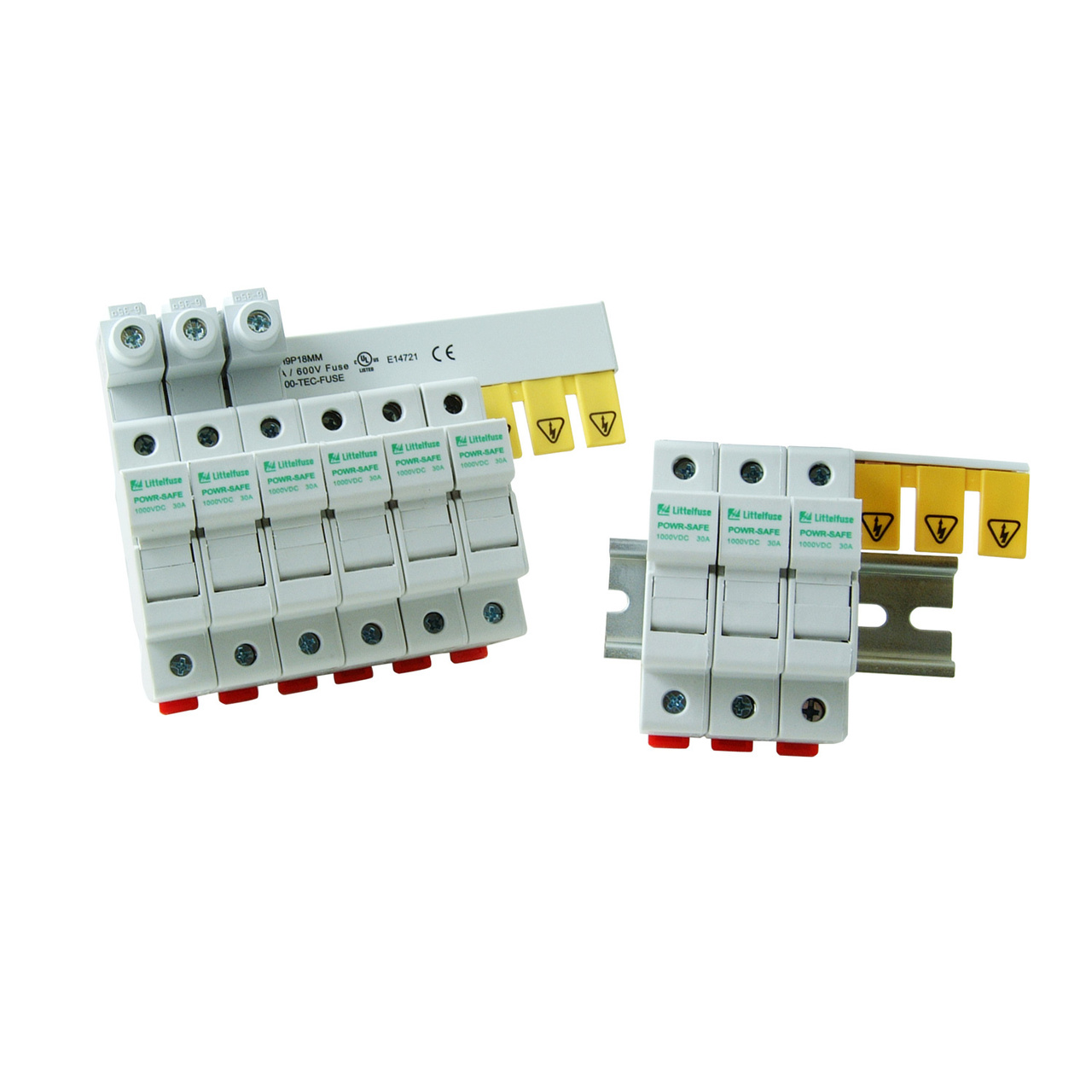

Littelfuse® 3PH15P18MM POWR-GARD® POWR Busbar Dead Front Fuse Holder, 600 VAC/VDC, 80/160 A, 15 Poles
UL Class Power Fuse Holders
PDW~6632300
MFG #: 3PH15P18MM
Littelfuse®
106.00000
/ ea
Safe distribution of power to multiple fuse holders in a compact design is a key objective for panel designers. The Littelfuse UL508 bus bar system eliminates most wire terminations in a time saving package. A power distribution block and associated conductors are no longer needed to feed multiple POWR-SAFE™ fuse holders.
- 3D Rendering URL(3D Rendering URL)
- Brochure URL - 11468_ZMLGDEHVFOQAW4NX.pdf(Brochure URL)
- Catalog URL - Littelfuse_3PH12P18MM_Catalog.pdf(Catalog URL)
- http://www.littelfuse.com(Seller Home Page URL)
- Spec Sheet URL - 11468_P42NF3GWY67EBH5I.pdf(Spec Sheet URL)
- Video - https://www.youtube.com/embed/q7jl6lHGX20(Video)
- Applications
- Features
| Industrial |
| RoHS compliant |
| Decreases wiring terminations |
| Small footprint reduces space requirements |
| Reduces assembly time |
| Prevents accidental finger exposure |
| Quick and safe method of changing fuse holder configurations |
| Allows for future expansion |
| Improves troubleshooting |
| Eliminates power distribution block |
| Lead-Free |
| Touch safe design offers protection when replacing fuses |
| 35 mm DIN rail mounting |
| No fuse pullers or tools required for fuse removal |
| Can be cut down to optimal size |
| Copper conductor |
| 17.8 mm pitch |
| 80 A for end fed and 160 A for center fed current ratings |
| 18 sq-mm cross section |
| 10/100 kA short circuit current rating |
