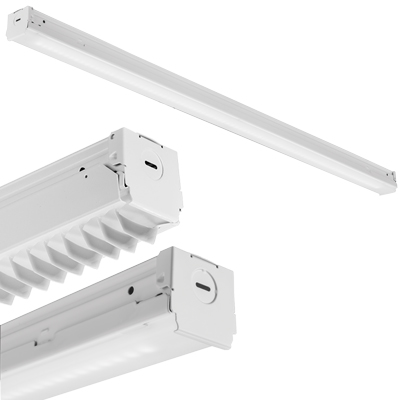

Lithonia Lighting® TZL1N Compact Low Profile Strip Light With Narrow Lens, LED Lamp, 120 to 277 VAC, Steel Housing
Indoor Strip Lighting
907446
MFG #: TZL1N L96 6000LM FST MVOLT 40K 80CRI WH
Lithonia Lighting®
288.86000
/ ea
Lithonia Lighting® Strip Light, Compact Low Profile, Series: TZL1N, 120 to 277 VAC, LED Lamp, 48 W at 120 VAC Lamp, White Light, 4000 K Color, 80 CRI, Acrylic/Snap-On Frosted Glass Lens, 6000 Lumens, Steel Housing, 96 in L
- http://www.lithonia.com(Seller Home Page URL)
- Install Instructions 1 URL - 10988_SKY8A9Q3GNMH156P.pdf(Install Instructions 1 URL)
- Line Drawing URL - 10988_7IEUFSNCQXHOLRBA.png(Line Drawing URL)
- Spec Sheet URL - 10988_4H205M9TZIAES1OW.pdf(Spec Sheet URL)
- Tech Bulletin URL - 10988_T7MFRKQPYNZ8G41C.pdf(Tech Bulletin URL)
- Warranty URL - terms-and-conditions(Warranty URL)
- Applications
- Features
| Automotive & Parking, Education, Government, Healthcare, Hospitality, Manufacturing, Offices & Banks, Power & Gas, Religious, Residential, Retail, Sports and Recreation, Transportation, Warehouses |
| The ZL Series LED strip lights provide aesthetic and performance choices, integrated controls options and innovative mounting accessories ideal for commercial, retail, manufacturing, warehouse, cove and display applications. When paired with occupancy sensors, dimming and intuitive controls, you save energy and extend the life of the fixtures. |
| Delivers the look of a conventional fluorescent strip, but proves it is anything but traditional |
| ZL1N series has been updated with the latest LEDs, allowing for enhanced performance |
| Continuous row mounting for aisle applications |
| Luma-Tilt angle bracket to aim ZL1N at 35, 45, 55 and 65 deg |
| After fabrication, five-stage iron phosphate pre-treatment ensures superior paint adhesion and rust resistance |
| Standard diffuse snap-on/snap off lens eliminates pixels, improves uniformity and minimizes glare |
| Utilizes high-output LEDs integrated on a two-layer circuit board, ensuring coolrunning operation |
| Electronic LED driver is rated for 75 input W maximum |
| Multi-volt input and 0 to 10 V dimming standard |
| Lumens output up to 2000 lumens per ft |
