Lithonia Lighting®

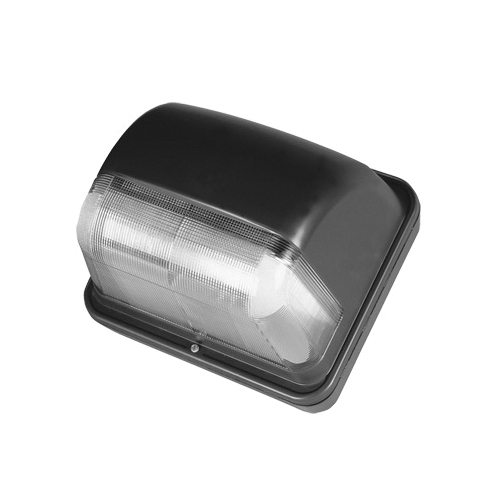

Lithonia Lighting® TWA Mini Wallpack, 1 Metal Halide Lamp, 70 W Fixture, 120/208/240/277/347 VAC
Custom_Product_Images_Illustration
Lithonia Lighting®
Lithonia Lighting® TWA Mini Wallpack, 1 Metal Halide Lamp, 70 W Fixture, 120/208/240/277/347 VAC
SKU1112908
MFGR #TWA-70M-TB-LPI
Your Cost: $362.17/ea
Lithonia Lighting® Mini Wallpack, Series: TWA, 120/208/240/277/347 VAC, 70 W Fixture, Metal Halide Lamp, 70 W Lamp, Medium Lamp Base, 1 Lamp, 100000 hr Average Life, Magnetic Ballast, Polycarbonate Glass Lens, IP65, Surface Mount, Die Cast Aluminum Housing, Dark Bronze Painted Housing, 10 in H x 11-1/2 in W x 8-15/16 in D
Lithonia Lighting® Mini Wallpack, Series: TWA, 120/208/240/277/347 VAC, 70 W Fixture, Metal Halide Lamp, 70 W Lamp, Medium Lamp Base, 1 Lamp, 100000 hr Average Life, Magnetic Ballast, Polycarbonate Glass Lens, IP65, Surface Mount, Die Cast Aluminum Housing, Dark Bronze Painted Housing, 10 in H x 11-1/2 in W x 8-15/16 in D
Average Life 100000 hr Ballast Type Electronic Catalog Number TWA-70M-TB-LPI Country of Origin MX Dimensions 10 in H x 11-1/2 in W x 9 in D Enclosure Type IP65 Gross Weight Per Pack 12.0000 lb Housing Material Die Cast Aluminum Lamp Base Type Medium Lamp Wattage 70 W Lens Type Polycarbonate Mounting Type Surface Number Of Lamps 1 Series TWA Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL Listed UNSPSC 39111613 UPC 11 78423113857 UPC 12 78423113857 Stock Status NONSTOCK Brand Lithonia Lighting® Manufacturer Acuity Brands Housing Finish Dark Bronze Lamp Type HID Voltage Rating 120/208/240/277/347 VAC For entrances, stairwells, corridors and other pedestrian areas. Not recommended for applications with frequent exposure to harsh chemicals or commercial cleaning fluids (e.g. car washes). Installations in such environments may lead to premature failure of the luminaire and void the warranty. Lamp included Mount to any vertical surface or to a 4 in round square outlet box Back access through gasketed slot Top wiring access through 1/2 in threaded conduit entry Rear housing is rugged, corrosion-resistant, die cast aluminum housing Front cover is one-piece UV-resistant injection molded polycarbonate, internally painted Captive external hardware is specially treated for corrosion resistance and includes slotted hex head and tamperproof fasteners Dark bronze (DDB) corrosion resistant polyester powder finish One-piece die-formed reflector is diffused aluminum Refractor is clear UV stabilized polycarbonate, front cover is sealed and gasketed to inhibit the entrance of outside contaminants High reactance, high power factor magnetic ballast Ballasts are 100% factory tested Porcelain, horizontally oriented medium base socket with copper alloy, nickel plated screw shell and center contact For entrances, stairwells, corridors and other pedestrian areas Not recommended for applications with frequent exposure to harsh chemicals or commercial cleaning fluids (e.g. car washes) Installations in such environments may lead to premature failure of the luminaire and void the warranty
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Average Life | 100000 hr |
| Ballast Type | Electronic |
| Catalog Number | TWA-70M-TB-LPI |
| Country of Origin | MX |
| Dimensions | 10 in H x 11-1/2 in W x 9 in D |
| Enclosure Type | IP65 |
| Gross Weight Per Pack | 12.0000 lb |
| Housing Material | Die Cast Aluminum |
| Lamp Base Type | Medium |
| Lamp Wattage | 70 W |
| Lens Type | Polycarbonate |
| Mounting Type | Surface |
| Number Of Lamps | 1 |
| Series | TWA |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL Listed |
| UNSPSC | 39111613 |
| UPC 11 | 78423113857 |
| UPC 12 | 78423113857 |
| Stock Status | NONSTOCK |
| Brand | Lithonia Lighting® |
| Manufacturer | Acuity Brands |
| Housing Finish | Dark Bronze |
| Lamp Type | HID |
| Voltage Rating | 120/208/240/277/347 VAC |
| For entrances, stairwells, corridors and other pedestrian areas. Not recommended for applications with frequent exposure to harsh chemicals or commercial cleaning fluids (e.g. car washes). Installations in such environments may lead to premature failure of the luminaire and void the warranty. |
| Lamp included |
| Mount to any vertical surface or to a 4 in round square outlet box |
| Back access through gasketed slot |
| Top wiring access through 1/2 in threaded conduit entry |
| Rear housing is rugged, corrosion-resistant, die cast aluminum housing |
| Front cover is one-piece UV-resistant injection molded polycarbonate, internally painted |
| Captive external hardware is specially treated for corrosion resistance and includes slotted hex head and tamperproof fasteners |
| Dark bronze (DDB) corrosion resistant polyester powder finish |
| One-piece die-formed reflector is diffused aluminum |
| Refractor is clear UV stabilized polycarbonate, front cover is sealed and gasketed to inhibit the entrance of outside contaminants |
| High reactance, high power factor magnetic ballast |
| Ballasts are 100% factory tested |
| Porcelain, horizontally oriented medium base socket with copper alloy, nickel plated screw shell and center contact |
| For entrances, stairwells, corridors and other pedestrian areas |
| Not recommended for applications with frequent exposure to harsh chemicals or commercial cleaning fluids (e.g. car washes) |
| Installations in such environments may lead to premature failure of the luminaire and void the warranty |
