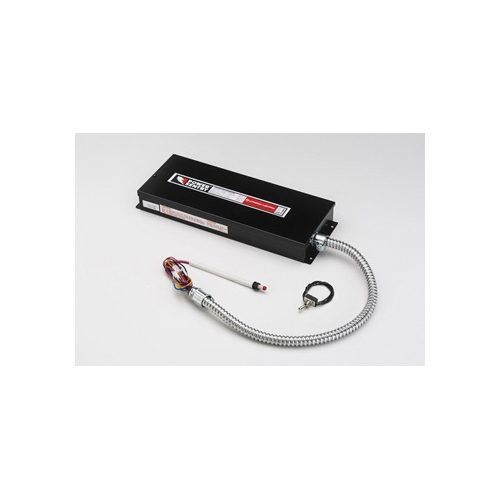

Lithonia Lighting® PS3000-M3 Emergency Ballast, Fluorescent Lamp, 120/277 VAC
Custom_Product_Images_Illustration
Lithonia Lighting® PS3000-M3 Emergency Ballast, Fluorescent Lamp, 120/277 VAC
SKU1112032
MFGR #PS3000-M3
Price Not Available
Power Sentry batteries fit in the tightest of applications, including low-profile lensed troffers, downlighting and industrial lighting fixtures. They also feature an innovative Quick-Disconnect wiring harness that makes field maintenance and upgrades quick and easy. Designed for applications requiring full light output. Field installed with fluorescent fixture to operate lamp(s), based on one32W T8 linear lamp.
Power Sentry batteries fit in the tightest of applications, including low-profile lensed troffers, downlighting and industrial lighting fixtures. They also feature an innovative Quick-Disconnect wiring harness that makes field maintenance and upgrades quick and easy. Designed for applications requiring full light output. Field installed with fluorescent fixture to operate lamp(s), based on one32W T8 linear lamp.
Amperage Rating 0.092/0.041 A Catalog Number PS3000-M3 Color Black Country of Origin CN Dimensions 15-3/8 in L x 5-5/8 in W x 2 in H Frequency Rating 50/60 Hz Gross Weight Per Pack 10.3000 lb Lamp Base Type T12/T8 Material Steel Mounting Type Fixture Number Of Lamps 1 Series PS3000 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 924NFPA 101NEC CompliantOSHA Approved Sub Brand Power Sentry® Temperature Range 32 to 100 °F Type Battery Pack UNSPSC 39111710 UPC 11 78423108529 UPC 12 78423108529 Wattage 10 W Stock Status NONSTOCK Brand Lithonia Lighting® Manufacturer Acuity Brands Lamp Type Fluorescent Voltage Rating 120/277 VAC Designed for applications requiring full light output. Field installed with fluorescent fixture to operate lamp(s), based on one 32W T8 linear lamp. Sealed, maintenance free, high temperature range nickel cadmium battery ensures long life over wide temperature ranges Automatic recharge after discharge Emergency ballast may be remote mounted up to 50 ft from fixture or half the distance recommended by the AC ballast manufacturer, whichever is less For indoor environment Constant current series resistor type charger, provides high efficiency and reliable operation High efficiency push-pull inverter is the most effective method of converting DC power to AC power It provides maximum light output, battery life and reliability AC/LVD reset allows battery connection before AC power is applied and prevents battery damage from deep discharge Ensures long life over wide temperature ranges, battery automatically recharges after a 90 min discharge External battery connectors allow battery pack to be disabled for maintenance and installation Pilot light and test switch provide visual and manual means of monitoring system operation Two 1/2 in holes are required to permit mounting of pilot light/test switch in fixture housing Designed for applications requiring full light output Field installed with fluorescent fixture to operate lamp(s), based on one 32W T8 linear lamp
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Amperage Rating | 0.092/0.041 A |
| Catalog Number | PS3000-M3 |
| Color | Black |
| Country of Origin | CN |
| Dimensions | 15-3/8 in L x 5-5/8 in W x 2 in H |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 10.3000 lb |
| Lamp Base Type | T12/T8 |
| Material | Steel |
| Mounting Type | Fixture |
| Number Of Lamps | 1 |
| Series | PS3000 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 924NFPA 101NEC CompliantOSHA Approved |
| Sub Brand | Power Sentry® |
| Temperature Range | 32 to 100 °F |
| Type | Battery Pack |
| UNSPSC | 39111710 |
| UPC 11 | 78423108529 |
| UPC 12 | 78423108529 |
| Wattage | 10 W |
| Stock Status | NONSTOCK |
| Brand | Lithonia Lighting® |
| Manufacturer | Acuity Brands |
| Lamp Type | Fluorescent |
| Voltage Rating | 120/277 VAC |
| Designed for applications requiring full light output. Field installed with fluorescent fixture to operate lamp(s), based on one 32W T8 linear lamp. |
| Sealed, maintenance free, high temperature range nickel cadmium battery ensures long life over wide temperature ranges |
| Automatic recharge after discharge |
| Emergency ballast may be remote mounted up to 50 ft from fixture or half the distance recommended by the AC ballast manufacturer, whichever is less |
| For indoor environment |
| Constant current series resistor type charger, provides high efficiency and reliable operation |
| High efficiency push-pull inverter is the most effective method of converting DC power to AC power |
| It provides maximum light output, battery life and reliability |
| AC/LVD reset allows battery connection before AC power is applied and prevents battery damage from deep discharge |
| Ensures long life over wide temperature ranges, battery automatically recharges after a 90 min discharge |
| External battery connectors allow battery pack to be disabled for maintenance and installation |
| Pilot light and test switch provide visual and manual means of monitoring system operation |
| Two 1/2 in holes are required to permit mounting of pilot light/test switch in fixture housing |
| Designed for applications requiring full light output |
| Field installed with fluorescent fixture to operate lamp(s), based on one 32W T8 linear lamp |
