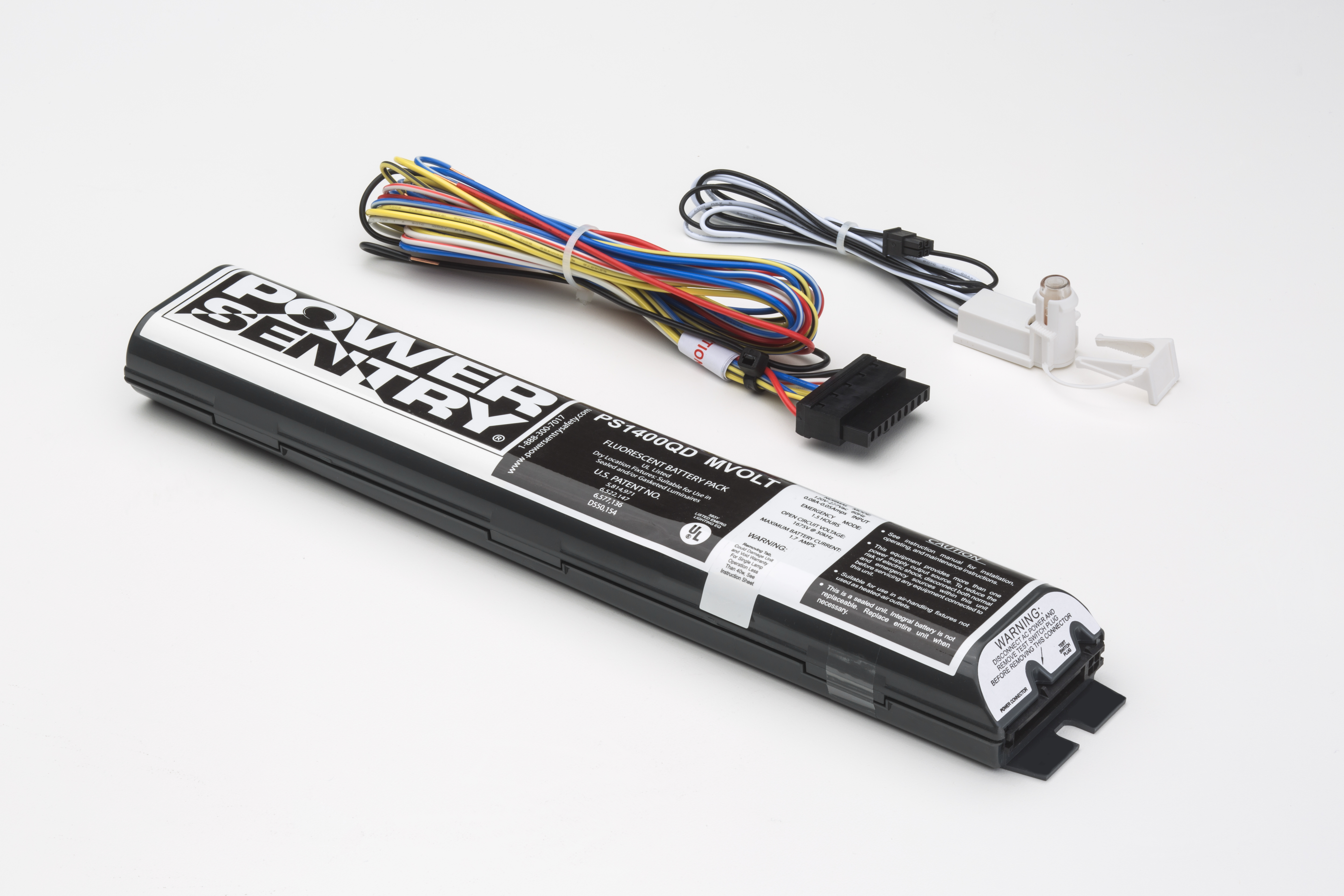

Lithonia Lighting® PS1400QDMVOLTM8 Quick Disconnect Emergency Ballast, Fluorescent Lamp, 120/277 VAC
Fluorescent Emergency Ballasts
244331
MFG #: PS1400QD MVOLT M8
Lithonia Lighting®
202.00000
/ ea
Power Sentry batteries fit in the tightest of applications, including low-profile lensed troffers, downlighting and industrial lighting fixtures. They also feature an innovative Quick-Disconnect wiring harness that makes field maintenance and upgrades quick and easy. Specification-grade emergency ballast operates oneor two lamps (4' or shorter) or one8' lamp. Factory or field installed within fluorescent fixture ballast channel. Upon interruption of normal power battery pack automatically strikes and operates lamps at reduced light output, providing glare-free illumination for 90 minutes.
- http://www.lithonia.com(Seller Home Page URL)
- Install Instructions 1 URL - 10988_7CEI41LUG0ZNVJOR.pdf(Install Instructions 1 URL)
- Safety Data Sheet URL - contactus.aspx(Safety Data Sheet URL)
- Spec Sheet URL - 10988_E8JO7MUX0L5FIH3W.pdf(Spec Sheet URL)
- Spec Sheet URL - 10988_VKAYW8JRN4EBUG0M.pdf(Spec Sheet URL)
- Spec Sheet URL - PS1400QD_MVOLT.pdf(Spec Sheet URL)
- Warranty URL - terms-and-conditions(Warranty URL)
- Applications
- Features
| Education,Government,Healthcare,Hospitality,Manufacturing,Offices & Banks,Religious,Retail |
| Specification-grade emergency ballast operates one or two lamps (4' or shorter) or one 8' lamp. Factory or field installed within fluorescent fixture ballast channel. Upon interruption of normal power battery pack automatically strikes and operates lamps at reduced light output, providing glare-free illumination for 90 minutes. |
| Automatic battery recharge after 90 min discharge |
| Constant current type charger |
| Sealed, maintenance free, high temperature range nickel cadmium battery ensures long life over wide temperature ranges |
| For indoor environment |
| Durable thermoplastic/metal housing resists impact, scratches and corrosion |
| UL94 VAC-0 flame rating |
| Reduced profile footprint fits in the tightest applications |
| Polarized quick-connect pilot light/test switch assembly simplifies installation |
| Pilot light and test switch provide visual and manual means of monitoring system operation |
| Lamp selector switch optimizes single or dual lamp performance |
| Input circuit provides high efficiency and reliable operation |
| High efficiency push-pull inverter is the most effective method of converting DC power to AC power |
| It provides maximum light output, battery life and reliability |
| Fully charged after 24 hr |
| 1400 lumens reduced profile |
| Specification grade emergency ballast to operate one or two lamps (4 ft or shorter) or one 8 ft lamp |
| Factory or field installed within fluorescent fixture ballast channel. upon interruption of normal power battery pack automatically strikes and operates lamps at reduced light output, providing glare-free illumination for 90 minutes |
