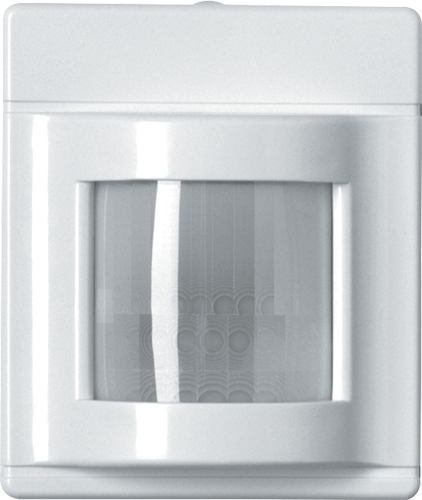

Lithonia Lighting® HW13 Sensor Switch™ HW-13 Low Voltage Hallway Sensor, 12 to 24 VAC/VDC, Passive Infrared Sensor
Custom_Product_Images_Illustration
Lithonia Lighting® HW13 Sensor Switch™ HW-13 Low Voltage Hallway Sensor, 12 to 24 VAC/VDC, Passive Infrared Sensor
SKU975394
MFGR #HW13
Your Cost: $136.17/ea
Long narrow PIR detection for control of hallway lighting is provided by the HW13 Series sensor. Applied in pairs and mounted at either end of a long corridor, the HW13 detects occupants entering the hallway up to 130 ft (39.62 m) away (when mounted at 10 ft (3.05 m)). Detection at these distances is for entrances at right angles to the beam pattern. The HW13 may also be used with other low voltage sensors to adequately view a space. For example, a CM 10 ceiling sensor may be in a vestibule at one end while the HW13 is at the other. The HW13 is best mounted at 7 ft (2.13 m).
Long narrow PIR detection for control of hallway lighting is provided by the HW13 Series sensor. Applied in pairs and mounted at either end of a long corridor, the HW13 detects occupants entering the hallway up to 130 ft (39.62 m) away (when mounted at 10 ft (3.05 m)). Detection at these distances is for entrances at right angles to the beam pattern. The HW13 may also be used with other low voltage sensors to adequately view a space. For example, a CM 10 ceiling sensor may be in a vestibule at one end while the HW13 is at the other. The HW13 is best mounted at 7 ft (2.13 m).
Alternate Catalog Number 184CHF Application Corridor ARRA Compliant C Buy American Compliant C Catalog Number HW13 Color White Country of Origin MX Currency USD Environmental Conditions Indoor EU RoHS Indicator C Gross Weight Per Pack 0.3000 lb Gross Weight per Pack Metric 0.14 Gross Weight UOM Metric kg Height 3.00 in Height [Metric] 7.6200 cm Length 3.60 in Length [Metric] 9.1440 cm Material Plastic Mounting Wall Pallet Quantity 1500 ea Sensing Range 100 degrees Standard cUL, UL Supply Voltage Low Voltage Type Occupancy Sensor UNSPSC 39122236 UPC 11 74597580956 UPC 12 745975809561 Warranty Description 5 Year Limited. Warranty varies by product. See warranty information at: www.acuitybrands.com/resources/terms-and-conditions Width 1.75 in Width [Metric] 4.4450 cm Stock Status NONSTOCK Brand SensorSwitch™ Manufacturer Acuity Brands Corridor Long narrow PIR detection for control of hallway lighting is provided by the HW13 Series sensor. Typically mounted at either end of a long corridor, the HW13 detects occupants entering the hallway up to 130 ft away. Detection at these distances is for entrances at right angles to the beam pattern. The HW13 may also be used with other low voltage sensors to adequately view a space. For example, a CM 10 ceiling sensor may be in a vestibule at one end while the HW13 is at the other. The HW13 is best mounted at 7 ft. PP20 Rcmd power pack
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 184CHF |
| Application | Corridor |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HW13 |
| Color | White |
| Country of Origin | MX |
| Currency | USD |
| Environmental Conditions | Indoor |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.3000 lb |
| Gross Weight per Pack Metric | 0.14 |
| Gross Weight UOM Metric | kg |
| Height | 3.00 in |
| Height [Metric] | 7.6200 cm |
| Length | 3.60 in |
| Length [Metric] | 9.1440 cm |
| Material | Plastic |
| Mounting | Wall |
| Pallet Quantity | 1500 ea |
| Sensing Range | 100 degrees |
| Standard | cUL, UL |
| Supply Voltage | Low Voltage |
| Type | Occupancy Sensor |
| UNSPSC | 39122236 |
| UPC 11 | 74597580956 |
| UPC 12 | 745975809561 |
| Warranty Description | 5 Year Limited. Warranty varies by product. See warranty information at: www.acuitybrands.com/resources/terms-and-conditions |
| Width | 1.75 in |
| Width [Metric] | 4.4450 cm |
| Stock Status | NONSTOCK |
| Brand | SensorSwitch™ |
| Manufacturer | Acuity Brands |
| Corridor |
| Long narrow PIR detection for control of hallway lighting is provided by the HW13 Series sensor. Typically mounted at either end of a long corridor, the HW13 detects occupants entering the hallway up to 130 ft away. Detection at these distances is for entrances at right angles to the beam pattern. The HW13 may also be used with other low voltage sensors to adequately view a space. For example, a CM 10 ceiling sensor may be in a vestibule at one end while the HW13 is at the other. The HW13 is best mounted at 7 ft. |
| PP20 Rcmd power pack |
