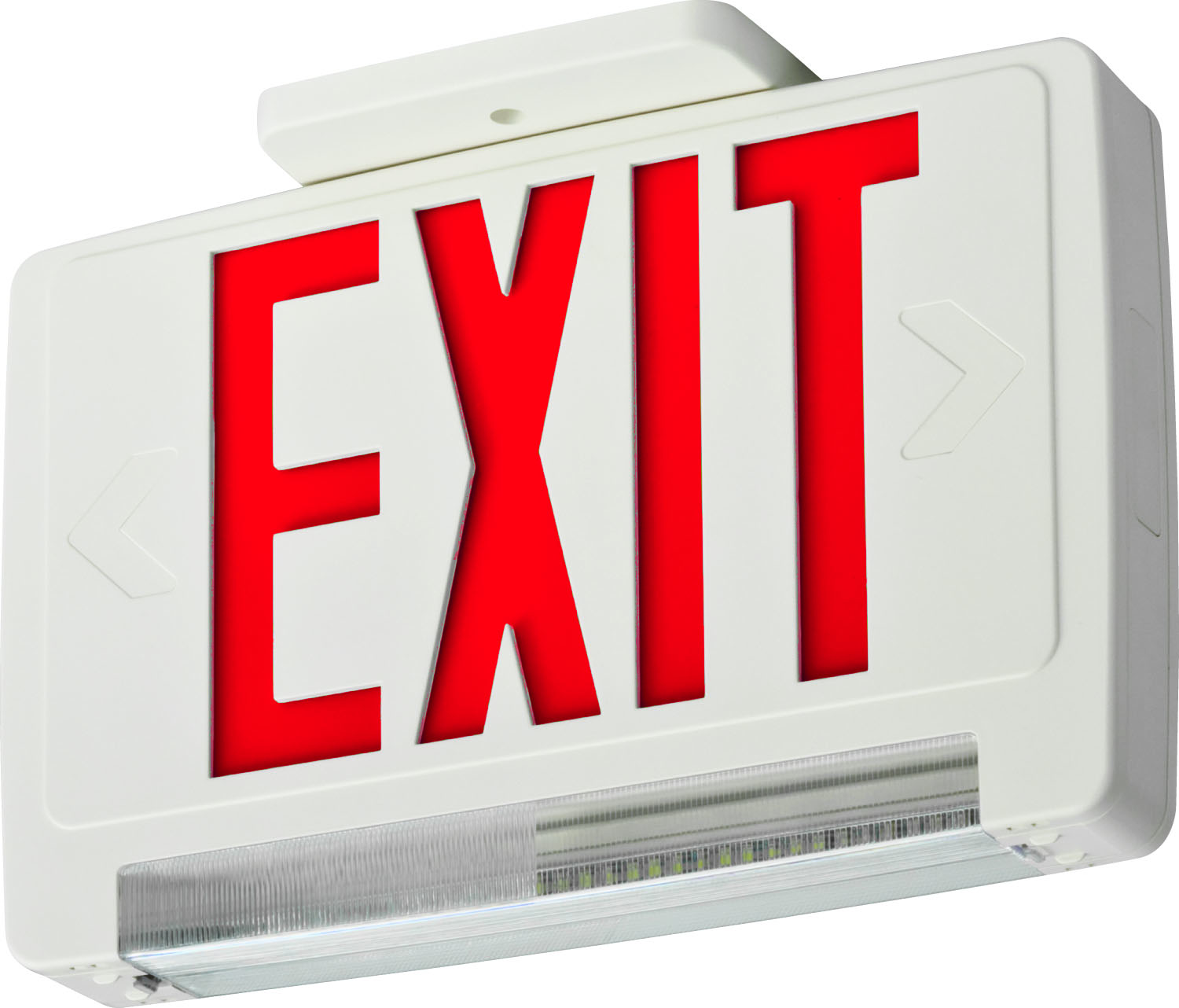

Lithonia Lighting® ECBR-LED-M6 LED Combination Exit Sign With Emergency Light, 8-1/4 in H x 12-5/8 in W, White
Combo Lighting Unit & Exits
855242
MFG #: ECBR LED M6
Lithonia Lighting®
152.33000
/ ea
Lithonia Lighting® LED Combination Exit Sign, Letter Legend, EXIT Legend, Thermoplastic, Surface Mount, 8-1/4 in Height, 12-5/8 in Width, White
- http://www.lithonia.com(Seller Home Page URL)
- Install Instructions 1 URL - 10988_HF4MP8S3CD5U9LYT.pdf(Install Instructions 1 URL)
- Safety Data Sheet URL - contactus.aspx(Safety Data Sheet URL)
- Spec Sheet URL - 10988_FTMISKYWBZ86NL4D.pdf(Spec Sheet URL)
- Spec Sheet URL - 10988_ID-SPE-v1-LED_INTEGRATED_EXIT-UNIT_COMBOS.pdf(Spec Sheet URL)
- Spec Sheet URL - LED%20INTEGRATED%20EXIT-UNIT%20COMBOS.PDF(Spec Sheet URL)
- Warranty URL - terms-and-conditions(Warranty URL)
- Applications
- Features
| Emergency and Safety |
| Energy - efficient LED exit sign with integrated LED light bar, into one low-profile unit. |
| Energy-efficient led exit sign with integrated led light bar, into one low-profile unit |
| High impact, injection-molded, flame retardant thermoplastic housing snap-fit design components for easy installation |
| The typical life of the led lamp is 10 years |
| Red letter, static led lamp |
| Unique design, top or back mounting capabilities |
| Fully assembled single face with extra faceplate for easy field conversion to double face |
| Sealed, maintenance-free Ni-Cad battery delivers 90 min of emergency power |
| Integrated led emergency light bar swivels to allow for full range of light adjustment |
| 3 W input power, 1 or 2 number of faces, white housing, 120-277 VAC voltage |
| Field selectable chevrons directional indicators, nickel cadmium battery |
| Remote capable standard, universal J-box pattern |
| Letters 6 in high with 3/4 in stroke, with 100 ft viewing distance rating |
| Remote capable standard, universal J-box pattern |
| Letters 6 in high with 3/4 in stroke, with 100 ft viewing distance rating |
