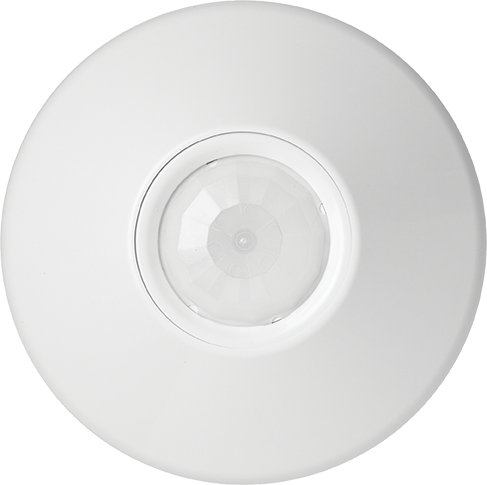

Lithonia Lighting® CMR-10-LT CMR Occupancy Sensor, 347 VAC, 32 ft Coverage, 360 deg, Flush Mount
Custom_Product_Images_Illustration
Lithonia Lighting® CMR-10-LT CMR Occupancy Sensor, 347 VAC, 32 ft Coverage, 360 deg, Flush Mount
SKU761094
MFGR #CMR10LT
Your Cost: $123.43/ea
The CMR 10 Series incorporates Passive Infrared (PIR) technology into an attractive and economical line powered sensor to provide maximum viewing from the ceiling. When mountedat 9 ft (2.74 m), this sensor views up to 28 ft (8.53 m) in all directions. Its circular coverage pattern is designed for walking motions; making it ideal for T-shaped intersections in corridors, or otherareas where wall mounting a sensor is not practical. Low ceiling heights are also best coveredwith the CMR 10. For example, when mounted at only 7 ft (2.13 m), the height of pick aisles in many distribution centers, the CMR 10 provides a 32 ft (9.75 m) diameter pattern of coverage, For detection of minor motion is also required, the CMR PDT 10 Series Dual Technology sensoris recommended.
The CMR 10 Series incorporates Passive Infrared (PIR) technology into an attractive and economical line powered sensor to provide maximum viewing from the ceiling. When mountedat 9 ft (2.74 m), this sensor views up to 28 ft (8.53 m) in all directions. Its circular coverage pattern is designed for walking motions; making it ideal for T-shaped intersections in corridors, or otherareas where wall mounting a sensor is not practical. Low ceiling heights are also best coveredwith the CMR 10. For example, when mounted at only 7 ft (2.13 m), the height of pick aisles in many distribution centers, the CMR 10 provides a 32 ft (9.75 m) diameter pattern of coverage, For detection of minor motion is also required, the CMR PDT 10 Series Dual Technology sensoris recommended.
Alternate Catalog Number 184F0X Application Automotive & Parking,Education,Government,Healthcare,Hospitality,House of Worship,Manufacturing,Offices & Banks,Power & Gas,Residential,Retail,Roadways, Bridges & Tunnels,Sports and Recreation,Transportation,Warehouses ARRA Compliant C Buy American Compliant C Catalog Number CMR10LT Color White Country of Origin MX Currency USD Dimensions 4.55 in Dia x 1.55 in D Environmental Conditions Indoor EU RoHS Indicator C Gross Weight Per Pack 0.3800 lb Gross Weight per Pack Metric 0.17 Gross Weight UOM Metric kg Height 4.50 in Height [Metric] 11.4300 cm Length 4.50 in Length [Metric] 11.4300 cm Material Plastic Mounting Flush,Surface Power Rating 1/4 hp Response Frequency 50/60 Hz Sensing Range 360 degrees Series CMR Standard cUL, UL Supply Voltage 120, 277 Time Delay 30 s to 20 min Type SENSOR UNSPSC 39122236 UPC 11 74597586085 UPC 12 745975860852 Warranty Description 5 Year Limited. Warranty varies by product. See warranty information at: www.acuitybrands.com/resources/terms-and-conditions Width 2.50 in Width [Metric] 6.3500 cm Stock Status NONSTOCK Brand SensorSwitch™ Manufacturer Acuity Brands Coverage 32 ft Mounting Type Flush Sensor Type PIR Viewing Angle 360 ° Voltage Rating 120/277 VAC Automotive & Parking,Education,Government,Healthcare,Hospitality,House of Worship,Manufacturing,Offices & Banks,Power & Gas,Residential,Retail,Roadways, Bridges & Tunnels,Sports and Recreation,Transportation,Warehouses The CMR 10 Series incorporates Passive Infrared (PIR) technology into an attractive and economical line powered sensor to provide maximum viewing from the ceiling. When mounted at 9 ft (2.74 m), this sensor views up to 28 ft (8.53 m) in all direction
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 184F0X |
| Application | Automotive & Parking,Education,Government,Healthcare,Hospitality,House of Worship,Manufacturing,Offices & Banks,Power & Gas,Residential,Retail,Roadways, Bridges & Tunnels,Sports and Recreation,Transportation,Warehouses |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | CMR10LT |
| Color | White |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 4.55 in Dia x 1.55 in D |
| Environmental Conditions | Indoor |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.3800 lb |
| Gross Weight per Pack Metric | 0.17 |
| Gross Weight UOM Metric | kg |
| Height | 4.50 in |
| Height [Metric] | 11.4300 cm |
| Length | 4.50 in |
| Length [Metric] | 11.4300 cm |
| Material | Plastic |
| Mounting | Flush,Surface |
| Power Rating | 1/4 hp |
| Response Frequency | 50/60 Hz |
| Sensing Range | 360 degrees |
| Series | CMR |
| Standard | cUL, UL |
| Supply Voltage | 120, 277 |
| Time Delay | 30 s to 20 min |
| Type | SENSOR |
| UNSPSC | 39122236 |
| UPC 11 | 74597586085 |
| UPC 12 | 745975860852 |
| Warranty Description | 5 Year Limited. Warranty varies by product. See warranty information at: www.acuitybrands.com/resources/terms-and-conditions |
| Width | 2.50 in |
| Width [Metric] | 6.3500 cm |
| Stock Status | NONSTOCK |
| Brand | SensorSwitch™ |
| Manufacturer | Acuity Brands |
| Coverage | 32 ft |
| Mounting Type | Flush |
| Sensor Type | PIR |
| Viewing Angle | 360 ° |
| Voltage Rating | 120/277 VAC |
| Automotive & Parking,Education,Government,Healthcare,Hospitality,House of Worship,Manufacturing,Offices & Banks,Power & Gas,Residential,Retail,Roadways, Bridges & Tunnels,Sports and Recreation,Transportation,Warehouses |
| The CMR 10 Series incorporates Passive Infrared (PIR) technology into an attractive and economical line powered sensor to provide maximum viewing from the ceiling. When mounted at 9 ft (2.74 m), this sensor views up to 28 ft (8.53 m) in all direction |
