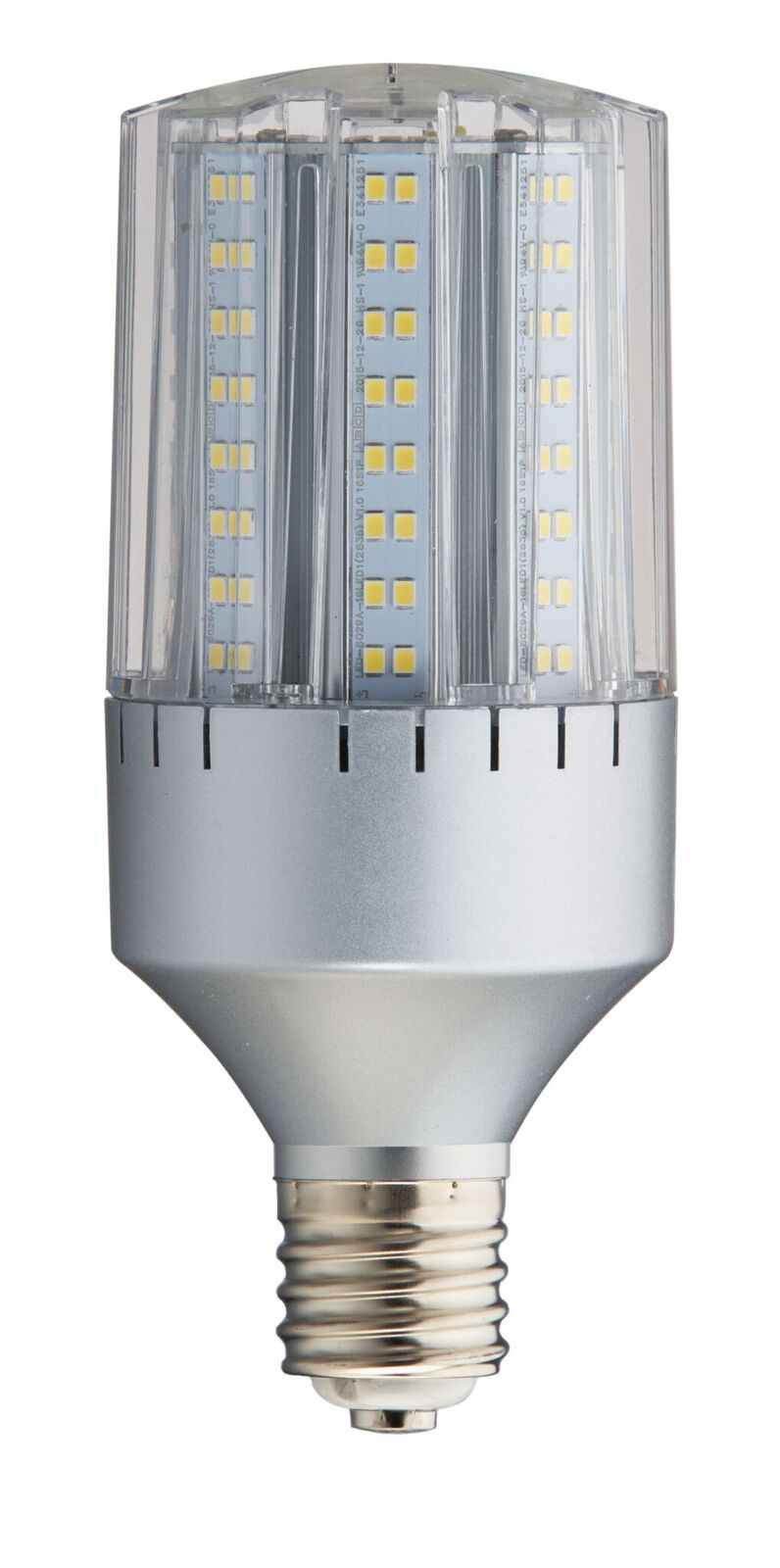

Light Efficient Design LED-8029M40-A 24W BOLLARD RETROFIT REPLACES UP TO 150W HID EX39 4000K
Custom_Product_Images_Illustration
Light Efficient Design LED-8029M40-A 24W BOLLARD RETROFIT REPLACES UP TO 150W HID EX39 4000K
SKU954219
MFGR #LED-8029M40-A
Your Cost: $58.80/ea
24W LED Retrofit Lamp for replacing HID lamps up to 100W, 120 - 277 Volt, E39 base, Approved by UL for enclosed fixtures, Active cooling is provided by long life "Mag-Lev" cooling fan which keeps LED's cool even when operating within enclosed light fixtures. UL1993 certified and UL1598C classified for USA and Canada. Note: UL1598C keeps UL approval for fixture after ballast is removed or wired past. Available in Daylight (5700K), Cool White (4000K) or Neutral White (3000K).
24W LED Retrofit Lamp for replacing HID lamps up to 100W, 120 - 277 Volt, E39 base, Approved by UL for enclosed fixtures, Active cooling is provided by long life "Mag-Lev" cooling fan which keeps LED's cool even when operating within enclosed light fixtures. UL1993 certified and UL1598C classified for USA and Canada. Note: UL1598C keeps UL approval for fixture after ballast is removed or wired past. Available in Daylight (5700K), Cool White (4000K) or Neutral White (3000K).
ARRA Compliant N Average Life 50000 hr Ballast Type Bypass Base EX39 Beam Angle 360 ° Beam Type Omni Directional Buy American Compliant N Catalog Number LED-8029M40-A Color Rendering Index [CRI] 82 Country of Origin CHN Currency USD Diameter 2.9 in Dimensions 3 in Dia x 6.9 in H Dimmable NON DIMMABLE EU RoHS Indicator Y Fixture Type Enclosed Gross Weight Per Pack 0.7600 lb Gross Weight per Pack Metric 0.34 Gross Weight UOM Metric kg Lamp Base Type EX39 Mogul Lamp Type LED Length 7.01 in Length [Metric] 17.8054 cm Standard cULus Standards RoHS CompliantcULus ListedCE CertifiedFCC ApprovedDLC Listed Type Type B Non-Dimmable UNSPSC 39101628 UPC 11 84400608155 UPC 12 844006081553 Width 2.90 in Width [Metric] 7.3660 cm Stock Status NONSTOCK Brand Light Efficient Design Manufacturer Light Efficient Design Color Temperature 4000 K Lumens 3374 lm Shape Cylindrical Voltage Rating 120-277 V Wattage 24 W Replaces up to 150 W HID Safety rated and heat tested within fully enclosed fixtures from -40 to 122 deg F ambient temperature Multi-directional mounting capability and 360 deg design Use base down, base up or base sideways without affecting performance Pretested and potted drivers are burnt in 3x prior to shipping and protected against vibration and moisture Expertly engineered to work efficiently in enclosed fixtures and damp environments, while also protected against insects and dust Dual stage MOV protection with integrated 6 kA surge USA designed and specified LED driver
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | N |
| Average Life | 50000 hr |
| Ballast Type | Bypass |
| Base | EX39 |
| Beam Angle | 360 ° |
| Beam Type | Omni Directional |
| Buy American Compliant | N |
| Catalog Number | LED-8029M40-A |
| Color Rendering Index [CRI] | 82 |
| Country of Origin | CHN |
| Currency | USD |
| Diameter | 2.9 in |
| Dimensions | 3 in Dia x 6.9 in H |
| Dimmable | NON DIMMABLE |
| EU RoHS Indicator | Y |
| Fixture Type | Enclosed |
| Gross Weight Per Pack | 0.7600 lb |
| Gross Weight per Pack Metric | 0.34 |
| Gross Weight UOM Metric | kg |
| Lamp Base Type | EX39 Mogul |
| Lamp Type | LED |
| Length | 7.01 in |
| Length [Metric] | 17.8054 cm |
| Standard | cULus |
| Standards | RoHS CompliantcULus ListedCE CertifiedFCC ApprovedDLC Listed |
| Type | Type B Non-Dimmable |
| UNSPSC | 39101628 |
| UPC 11 | 84400608155 |
| UPC 12 | 844006081553 |
| Width | 2.90 in |
| Width [Metric] | 7.3660 cm |
| Stock Status | NONSTOCK |
| Brand | Light Efficient Design |
| Manufacturer | Light Efficient Design |
| Color Temperature | 4000 K |
| Lumens | 3374 lm |
| Shape | Cylindrical |
| Voltage Rating | 120-277 V |
| Wattage | 24 W |
| Replaces up to 150 W HID |
| Safety rated and heat tested within fully enclosed fixtures from -40 to 122 deg F ambient temperature |
| Multi-directional mounting capability and 360 deg design |
| Use base down, base up or base sideways without affecting performance |
| Pretested and potted drivers are burnt in 3x prior to shipping and protected against vibration and moisture |
| Expertly engineered to work efficiently in enclosed fixtures and damp environments, while also protected against insects and dust |
| Dual stage MOV protection with integrated 6 kA surge |
| USA designed and specified LED driver |
