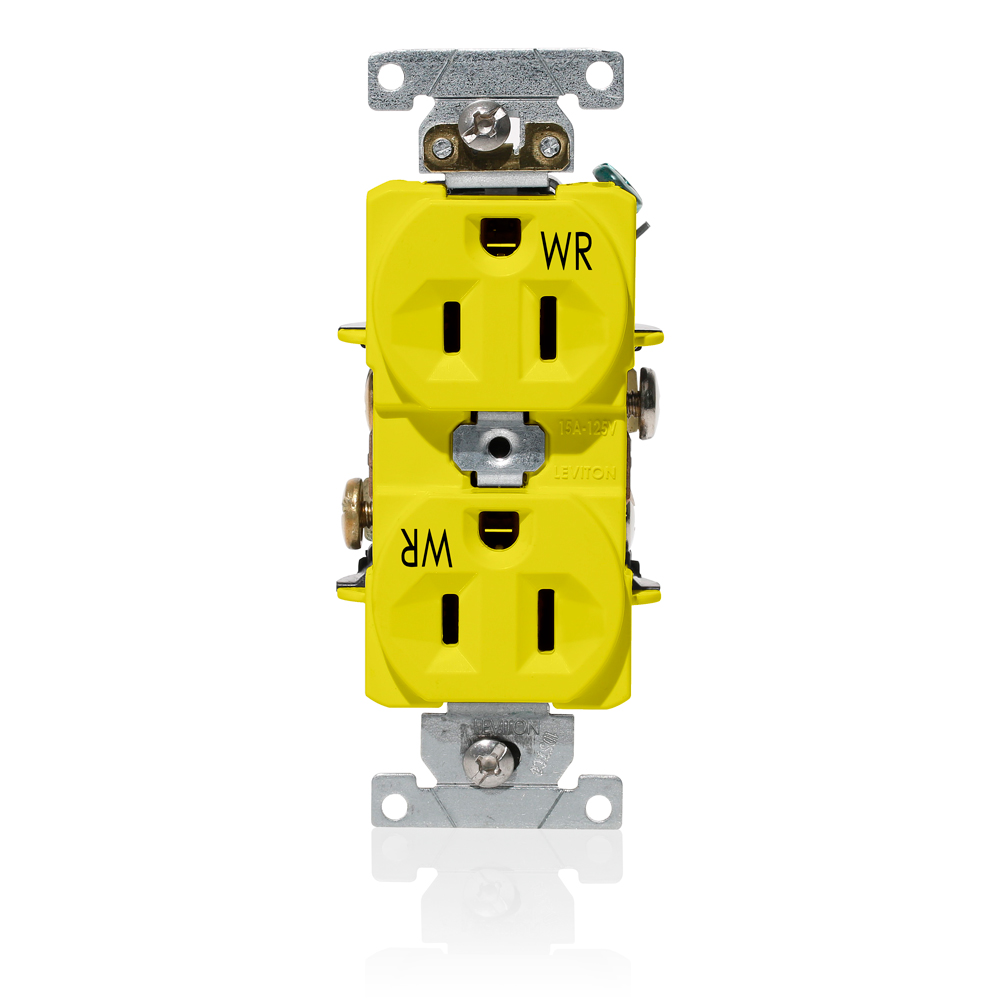

Leviton® WBR15-Y 1-Phase Duplex Self-Grounding Weather Resistant Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Custom_Product_Images_Illustration
Leviton®
Leviton® WBR15-Y 1-Phase Duplex Self-Grounding Weather Resistant Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
SKU1289512
MFGR #WBR15-Y
Your Cost: $14.99/ea
List: Leviton® Straight Blade Receptacle, 1-Phase Duplex Self-Grounding Weather Resistant, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, Yellow, 46 in H x 1.53 in W x 1.11 in D Dimensions
Leviton® Straight Blade Receptacle, 1-Phase Duplex Self-Grounding Weather Resistant, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, Yellow, 46 in H x 1.53 in W x 1.11 in D Dimensions
Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number WBR15-Y Connection Back and Side Wired Country of Origin MX Currency USD Depth 1.11 in Dielectric Strength 2000 (Min.) Environmental Conditions Flammability (Rated V-2 per UL94) EU RoHS Indicator C Gross Weight Per Pack 0.2200 lb Gross Weight per Pack Metric 0.10 Gross Weight UOM Metric kg Hazard Class N Height 8.5000 in Length 12.7500 in Material Thermoplastic Mounting Wall Box NEMA Rating 5-15R Phase 1 Standard ANSI (C-73);CSA C22.2 No. 42 (File 152105);NEMA (WD-1, WD-6);NOM Certified (057);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399) Temperature Rating -40 to +60 DEG C Type Duplex Outlet;Straight Blade UNSPSC 39121406 UPC 11 07847733529 UPC 12 078477335291 Width 1.53 in Wire Size 14-10 Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 15 AMP Number of Wires 3 Voltage Rating 125 Commercial Manufactured to withstand the demands of commercial and institutional applications Heavy duty brass power contacts for maximum conductivity and plug retention Shallow design for maximum wiring room in box
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | WBR15-Y |
| Connection | Back and Side Wired |
| Country of Origin | MX |
| Currency | USD |
| Depth | 1.11 in |
| Dielectric Strength | 2000 (Min.) |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.2200 lb |
| Gross Weight per Pack Metric | 0.10 |
| Gross Weight UOM Metric | kg |
| Hazard Class | N |
| Height | 8.5000 in |
| Length | 12.7500 in |
| Material | Thermoplastic |
| Mounting | Wall Box |
| NEMA Rating | 5-15R |
| Phase | 1 |
| Standard | ANSI (C-73);CSA C22.2 No. 42 (File 152105);NEMA (WD-1, WD-6);NOM Certified (057);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399) |
| Temperature Rating | -40 to +60 DEG C |
| Type | Duplex Outlet;Straight Blade |
| UNSPSC | 39121406 |
| UPC 11 | 07847733529 |
| UPC 12 | 078477335291 |
| Width | 1.53 in |
| Wire Size | 14-10 |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 15 AMP |
| Number of Wires | 3 |
| Voltage Rating | 125 |
| Commercial |
| Manufactured to withstand the demands of commercial and institutional applications |
| Heavy duty brass power contacts for maximum conductivity and plug retention |
| Shallow design for maximum wiring room in box |
