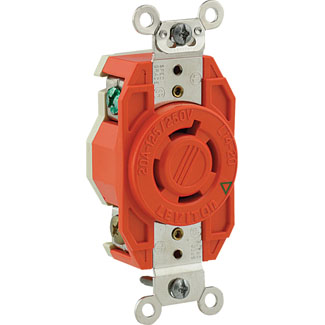

Leviton® V-0-Max™ 2410-IG Single Locking Receptacle, 125/250 VAC, 20 A, 3 Poles, 4 Wires, Orange
Custom_Product_Images_Illustration
Leviton® V-0-Max™ 2410-IG Single Locking Receptacle, 125/250 VAC, 20 A, 3 Poles, 4 Wires, Orange
SKU309758
MFGR #2410-IG
Your Cost: $50.11/ea
List: Leviton's Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
Leviton's Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number 2410-IG Connection Back Wired;Side Wired Cord Diameter Orange Country of Origin MX Currency USD Depth 1.31 in Dielectric Strength 2000 (Min.) V Dimensions 46 in H x 1.69 in W x 1.31 in D Enclosure PBT Environmental Conditions Flammability (Rated V-2, Rated V-0 per UL94) EU RoHS Indicator C Frequency Rating 3 V Gross Weight Per Pack 0.2900 lb Gross Weight per Pack Metric 0.13 Gross Weight UOM Metric kg Height 9.7500 in Height [Metric] 10.4775 cm Horsepower 2 hp Length 13.3750 in Length [Metric] 4.6050 cm Material PBT Mounting Box NEMA Rating L14-20R Number Of Poles 3 Series V-0-Max Size 46 H x 1.69 W x 1.31 D in Standard NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399) Standards ARRA CompliantBuy American Act CompliantRoHS CompliantNEMA WD-1/WD-6ANSI C-73NOM 057CSA C22.2 No. 42/LR406Federal Specification WC596/E13399UL 498 File No. E13399UL94 V-0/V-2 Flammability Rating Sub Brand V-0-Max Temperature Rating -40 to +60 °C Terminal Type Back/Side Wired Type Flush Mount Locking Receptacle UNSPSC 39121406 UPC 11 07847780933 UPC 12 078477809334 Width 1.88 in Width [Metric] 4.7625 cm Wire Size 14-8 AWG Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 20 A Color Orange Number of Wires 4 Voltage Rating 125/250 V Commercial Box mounting 14 to 8 AWG terminal accommodation Flush mount 2000 VAC minimum dielectric strength Flush mounting Single-piece contacts for superior conductivity Nickel-plated solid brass strap for a lower resistance grounding path and superior corrosion resistance Valox® construction for endurance and resistance to impact and abuse Triple head brass #10 terminal screws for faster, more secure installation Isolated ground 2 hp L-L/1 hp L-N 14 to 8 AWG
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 2410-IG |
| Connection | Back Wired;Side Wired |
| Cord Diameter | Orange |
| Country of Origin | MX |
| Currency | USD |
| Depth | 1.31 in |
| Dielectric Strength | 2000 (Min.) V |
| Dimensions | 46 in H x 1.69 in W x 1.31 in D |
| Enclosure | PBT |
| Environmental Conditions | Flammability (Rated V-2, Rated V-0 per UL94) |
| EU RoHS Indicator | C |
| Frequency Rating | 3 V |
| Gross Weight Per Pack | 0.2900 lb |
| Gross Weight per Pack Metric | 0.13 |
| Gross Weight UOM Metric | kg |
| Height | 9.7500 in |
| Height [Metric] | 10.4775 cm |
| Horsepower | 2 hp |
| Length | 13.3750 in |
| Length [Metric] | 4.6050 cm |
| Material | PBT |
| Mounting | Box |
| NEMA Rating | L14-20R |
| Number Of Poles | 3 |
| Series | V-0-Max |
| Size | 46 H x 1.69 W x 1.31 D in |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399) |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantNEMA WD-1/WD-6ANSI C-73NOM 057CSA C22.2 No. 42/LR406Federal Specification WC596/E13399UL 498 File No. E13399UL94 V-0/V-2 Flammability Rating |
| Sub Brand | V-0-Max |
| Temperature Rating | -40 to +60 °C |
| Terminal Type | Back/Side Wired |
| Type | Flush Mount Locking Receptacle |
| UNSPSC | 39121406 |
| UPC 11 | 07847780933 |
| UPC 12 | 078477809334 |
| Width | 1.88 in |
| Width [Metric] | 4.7625 cm |
| Wire Size | 14-8 AWG |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 20 A |
| Color | Orange |
| Number of Wires | 4 |
| Voltage Rating | 125/250 V |
| Commercial |
| Box mounting |
| 14 to 8 AWG terminal accommodation |
| Flush mount |
| 2000 VAC minimum dielectric strength |
| Flush mounting |
| Single-piece contacts for superior conductivity |
| Nickel-plated solid brass strap for a lower resistance grounding path and superior corrosion resistance |
| Valox® construction for endurance and resistance to impact and abuse |
| Triple head brass #10 terminal screws for faster, more secure installation |
| Isolated ground |
| 2 hp L-L/1 hp L-N |
| 14 to 8 AWG |
