Leviton®

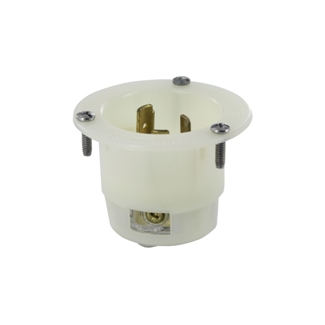

Leviton® V-0-Max™ 2325 Grounding Flanged Inlet Locking Receptacle, 250 VAC, 20 A, 2 Poles, 3 Wires, White
Custom_Product_Images_Illustration
Leviton®
Leviton® V-0-Max™ 2325 Grounding Flanged Inlet Locking Receptacle, 250 VAC, 20 A, 2 Poles, 3 Wires, White
SKU153703
MFGR #2325
Your Cost: $28.42/ea
Leviton®'s industry leading locking devices, such as our Black & White® line of industrial grade plugs and connectors and our V-0-Max line of industrial grade flush receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.
Leviton®'s industry leading locking devices, such as our Black & White® line of industrial grade plugs and connectors and our V-0-Max line of industrial grade flush receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.
Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number 2325 Connection Back Wired Country of Origin UKN Currency USD Dielectric Strength 2000 (Min.) V Dimensions 2.5 in Dia x 1.78 in H Environmental Conditions Flammability (Rated V-2 per UL94) EU RoHS Indicator C Grade Industrial Gross Weight Per Pack 3.2000 lb Height 8.5000 in Height [Metric] 10.1600 cm Horsepower 2 hp Length 16.6250 in Length [Metric] 8.2550 cm Material Nylon Mounting Flange NEMA Rating L6-20P Number Of Poles 2 Size 2.50 Dia x 1.78 H in Standard NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Fed Spec WC-596 (File E13393);UL Listed 498 (File E13393) Standards ARRA CompliantBuy American Act CompliantRoHS CompliantANSI C73NOM 057NEMA WD1/WD6CSA C22.2 No.42 File No. LR406Federal Specification WC596UL 498 File No. E13393UL94 V-2 Flammability Rating Sub Brand V-0-Max Temperature Rating -40 to +60 °C Terminal Type Back Wired Type Locking Flanged Inlet UNSPSC 39121406 UPC 11 07847780119 UPC 12 078477801192 Width 3.25 in Width [Metric] 8.2550 cm Wire Size 16-8 AWG Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 20 A Color White Number of Wires 3 Voltage Rating 250 V Commercial Withstands 2000 VAC per UL498 dielectric voltage Full-rated current limiting Maximum 30 deg C temperature rise after 250 cycles OL at 200% rated current V-2 per UL94 flammability rated Brass-hot, green-ground, silver-neutral color for terminal identification 18 to 10 AWG terminal accommodation Product ID ratings and NEMA ID permanently marked on device Solid brass line contacts Brass 10 to 32 terminal screws Brass 8 to 32 grounding screw Thermoplastic nylon strap
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 2325 |
| Connection | Back Wired |
| Country of Origin | UKN |
| Currency | USD |
| Dielectric Strength | 2000 (Min.) V |
| Dimensions | 2.5 in Dia x 1.78 in H |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| EU RoHS Indicator | C |
| Grade | Industrial |
| Gross Weight Per Pack | 3.2000 lb |
| Height | 8.5000 in |
| Height [Metric] | 10.1600 cm |
| Horsepower | 2 hp |
| Length | 16.6250 in |
| Length [Metric] | 8.2550 cm |
| Material | Nylon |
| Mounting | Flange |
| NEMA Rating | L6-20P |
| Number Of Poles | 2 |
| Size | 2.50 Dia x 1.78 H in |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Fed Spec WC-596 (File E13393);UL Listed 498 (File E13393) |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantANSI C73NOM 057NEMA WD1/WD6CSA C22.2 No.42 File No. LR406Federal Specification WC596UL 498 File No. E13393UL94 V-2 Flammability Rating |
| Sub Brand | V-0-Max |
| Temperature Rating | -40 to +60 °C |
| Terminal Type | Back Wired |
| Type | Locking Flanged Inlet |
| UNSPSC | 39121406 |
| UPC 11 | 07847780119 |
| UPC 12 | 078477801192 |
| Width | 3.25 in |
| Width [Metric] | 8.2550 cm |
| Wire Size | 16-8 AWG |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 20 A |
| Color | White |
| Number of Wires | 3 |
| Voltage Rating | 250 V |
| Commercial |
| Withstands 2000 VAC per UL498 dielectric voltage |
| Full-rated current limiting |
| Maximum 30 deg C temperature rise after 250 cycles OL at 200% rated current |
| V-2 per UL94 flammability rated |
| Brass-hot, green-ground, silver-neutral color for terminal identification |
| 18 to 10 AWG terminal accommodation |
| Product ID ratings and NEMA ID permanently marked on device |
| Solid brass line contacts |
| Brass 10 to 32 terminal screws |
| Brass 8 to 32 grounding screw |
| Thermoplastic nylon strap |
