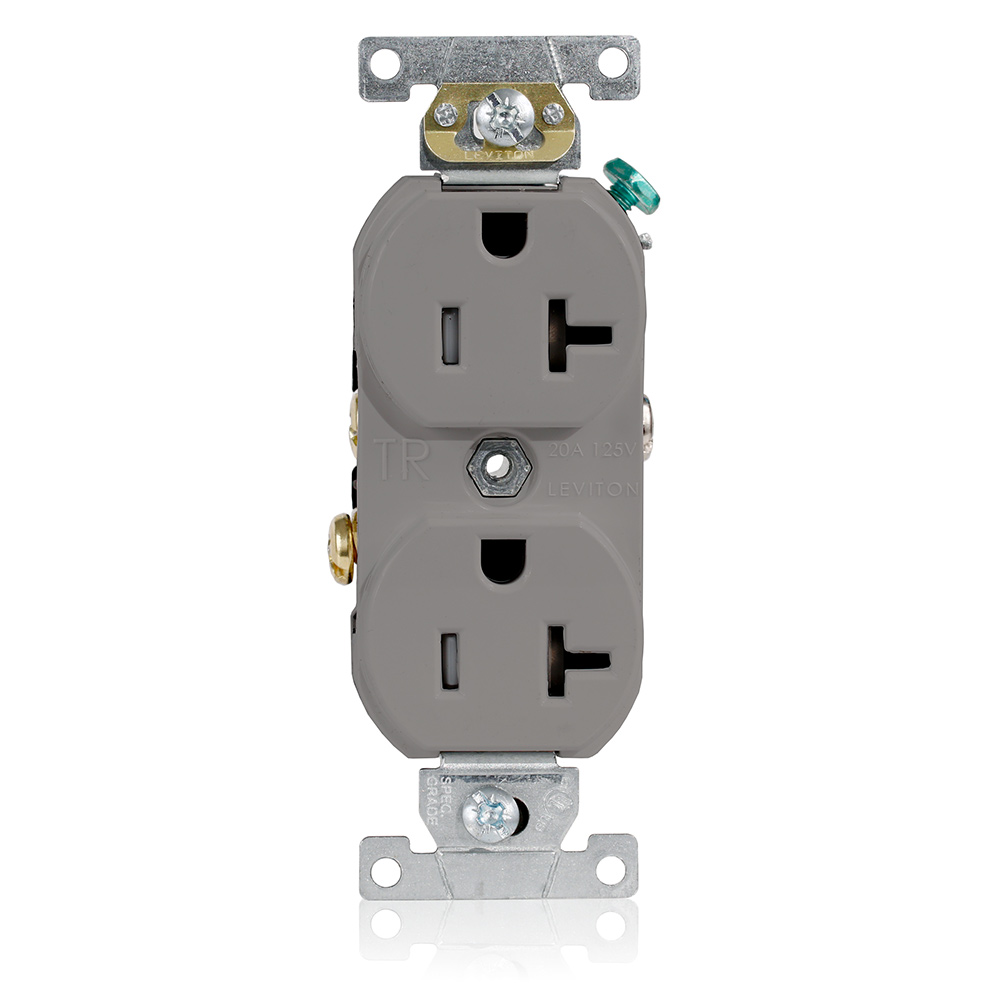

Leviton® TCR20-GY Duplex Self Grounding Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray
Custom_Product_Images_Illustration
Leviton® TCR20-GY Duplex Self Grounding Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray
SKU859661
MFGR #TCR20-GY
Your Cost: $4.38/ea
List: Plug into safety with Leviton tamper-resistant (TR) Receptacles. As a long-time manufacturer of tamper-resistant devices, we are pleased to be at the forefront of this safety measure with an expanded product line that encompasses a wide range of TR devices in residential, commercial, industrial and hospital Grades. The national electrical Code® mandates the use of tamper-resistant receptacles in various applications and has expanded the usage requirements over the course of several code cycles.
Plug into safety with Leviton tamper-resistant (TR) Receptacles. As a long-time manufacturer of tamper-resistant devices, we are pleased to be at the forefront of this safety measure with an expanded product line that encompasses a wide range of TR devices in residential, commercial, industrial and hospital Grades. The national electrical Code® mandates the use of tamper-resistant receptacles in various applications and has expanded the usage requirements over the course of several code cycles.
Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number TCR20-GY Country of Origin MX Currency USD Dimensions 1.36 in L x 1.2 in W x 46 in H EU RoHS Indicator C Grade Commercial Gross Weight Per Pack 0.2500 lb Gross Weight per Pack Metric 0.09 Gross Weight UOM Metric kg Height 8.7500 in Height [Metric] 10.4775 cm Horsepower 1 hp Length 12.2500 in Length [Metric] 4.7625 cm Material Thermoplastic NEMA Rating NEMA 5-20R Number Of Poles 2 Standard NEMA (WD 1, WD 6);ANSI (C73);NOM Certified (057);cULus (E13399) Standards ARRA CompliantBuy American Act CompliantRoHS CompliantNEMA WD-1/WD-6ANSI C-73NOM 057cULus File No. E13399 Style Straight Blade Temperature Rating -40 to 60 °C Terminal Type Side Wired Type Duplex Receptacle UNSPSC 39111503 UPC 11 07847765535 UPC 12 078477655351 Width 1.38 in Width [Metric] 3.4925 cm Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 20 A Color Gray Number of Wires 3 Voltage Rating 125 V Commercial 10-Year Limited Warranty, Country of Origin Mexico, Self Grounding, Tamper-Resistant, Self Grounding Manufactured to withstand the demands of commercial and institutional applications Heavy duty brass power contacts for maximum conductivity and plug retention Shallow design for maximum wiring room in box V-2 per UL94 flammability rated Brass ground clip Plated steel grounding screw Brass 0.031 thick line contacts Delrin® acetal shutter mechanism Zinc plated steel strap Plated steel terminal screws Ratings are permanently marked on device product ID 10 to 14 AWG terminal accommodation Brass-hot, green-ground, silver-neutral terminal Solid or stranded building wire type, narrow body Tamper-resistant
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | TCR20-GY |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 1.36 in L x 1.2 in W x 46 in H |
| EU RoHS Indicator | C |
| Grade | Commercial |
| Gross Weight Per Pack | 0.2500 lb |
| Gross Weight per Pack Metric | 0.09 |
| Gross Weight UOM Metric | kg |
| Height | 8.7500 in |
| Height [Metric] | 10.4775 cm |
| Horsepower | 1 hp |
| Length | 12.2500 in |
| Length [Metric] | 4.7625 cm |
| Material | Thermoplastic |
| NEMA Rating | NEMA 5-20R |
| Number Of Poles | 2 |
| Standard | NEMA (WD 1, WD 6);ANSI (C73);NOM Certified (057);cULus (E13399) |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantNEMA WD-1/WD-6ANSI C-73NOM 057cULus File No. E13399 |
| Style | Straight Blade |
| Temperature Rating | -40 to 60 °C |
| Terminal Type | Side Wired |
| Type | Duplex Receptacle |
| UNSPSC | 39111503 |
| UPC 11 | 07847765535 |
| UPC 12 | 078477655351 |
| Width | 1.38 in |
| Width [Metric] | 3.4925 cm |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 20 A |
| Color | Gray |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Commercial |
| 10-Year Limited Warranty, Country of Origin Mexico, Self Grounding, Tamper-Resistant, Self Grounding |
| Manufactured to withstand the demands of commercial and institutional applications |
| Heavy duty brass power contacts for maximum conductivity and plug retention |
| Shallow design for maximum wiring room in box |
| V-2 per UL94 flammability rated |
| Brass ground clip |
| Plated steel grounding screw |
| Brass 0.031 thick line contacts |
| Delrin® acetal shutter mechanism |
| Zinc plated steel strap |
| Plated steel terminal screws |
| Ratings are permanently marked on device product ID |
| 10 to 14 AWG terminal accommodation |
| Brass-hot, green-ground, silver-neutral terminal |
| Solid or stranded building wire type, narrow body |
| Tamper-resistant |
