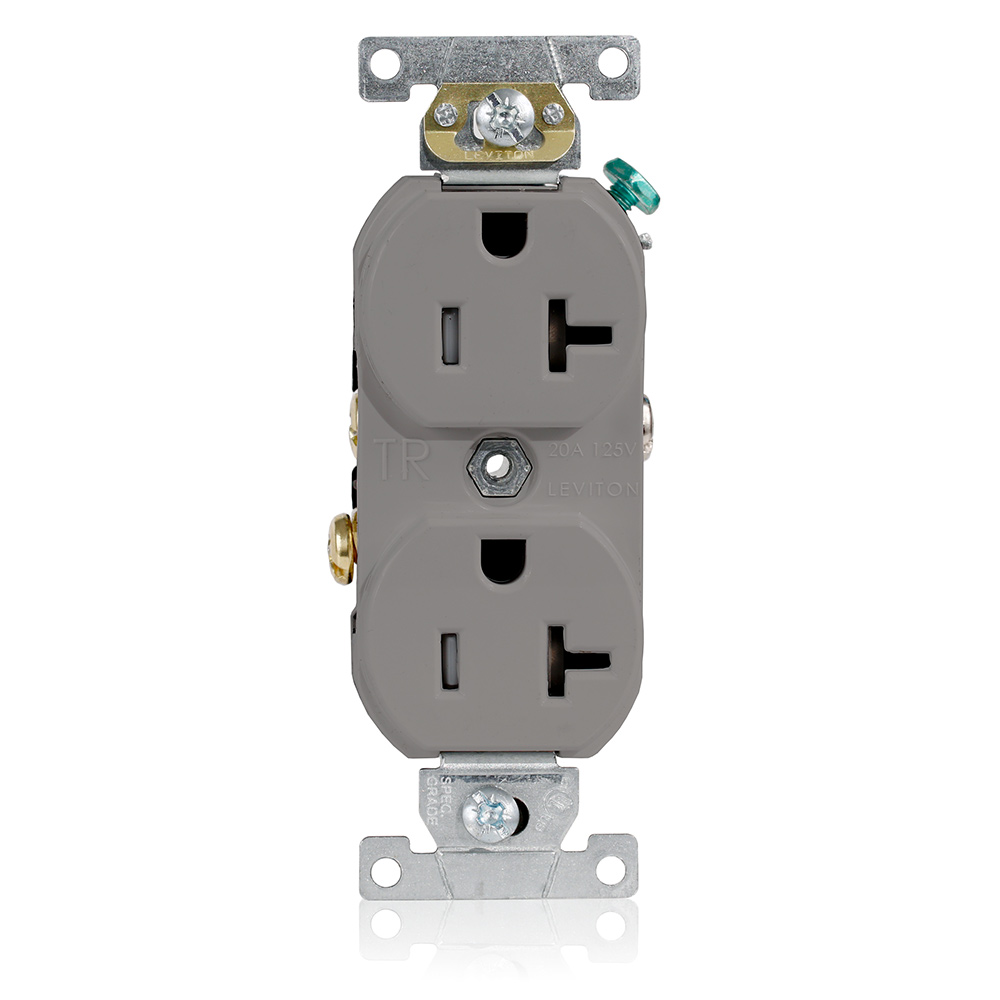

Leviton® TBR20-GY Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray
Straight Blade Receptacles
489636
MFG #: TBR20-GY
Leviton®
5.04000
/ ea
Plug into safety with Leviton® line of tamper resistant receptacles. As a long-time manufacturer of tamper-resistant devices, we are pleased to be at the forefront of this safety measure with an expanded product line that encompasses a wide range of TR devices in Residential , Commercial, Industrial and Hospital Grades.
- Application GDE URL - Leviton_TBR15_GY_Application_Guide.pdf(Application GDE URL)
- http://www.leviton.com(Seller Home Page URL)
- Install Instructions URL - Leviton_TBR20_T_Installation_Instructions.pdf(Install Instructions URL)
- Line Drawing URL(Line Drawing URL)
- Safety Data Sheet URL - MSDS.pdf(Safety Data Sheet URL)
- Spec Sheet 1 URL - ID-SPE-v1-TBR20-GY.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - ProductDetail.jsp?partnumber=TBR20-GY§ion=42525&minisite=10251(Spec Sheet URL)
- Tech Drawing URL - 10962_4RCIVKZT8H3M1OQW.jpg(Tech Drawing URL)
- Tech Drawing URL - ibcGetAttachment.jsp?cItemId=35783&label=IBE&appName=IBE(Tech Drawing URL)
- Applications
- Features
| Commercial |
| Shutter mechanism inside the receptacle blocks access to the contacts unless a two-prong plug is inserted, helping ensure hairpins, keys, etc. will be locked out |
| TR symbol on residential receptacles assures they meet the 2008 NEC requirement |
| TR selection includes Residential and Commercial Grade receptacles |
| Heavy duty construction offers long, trouble-free service life |
| Self grounding |
| Narrow body |
| Tamper resistant |
| 2000 V (min) dielectric strength |
| UL 94 V-2 flammability rating |
| Zinc plated steel strap |
| 14 - 10 AWG |
