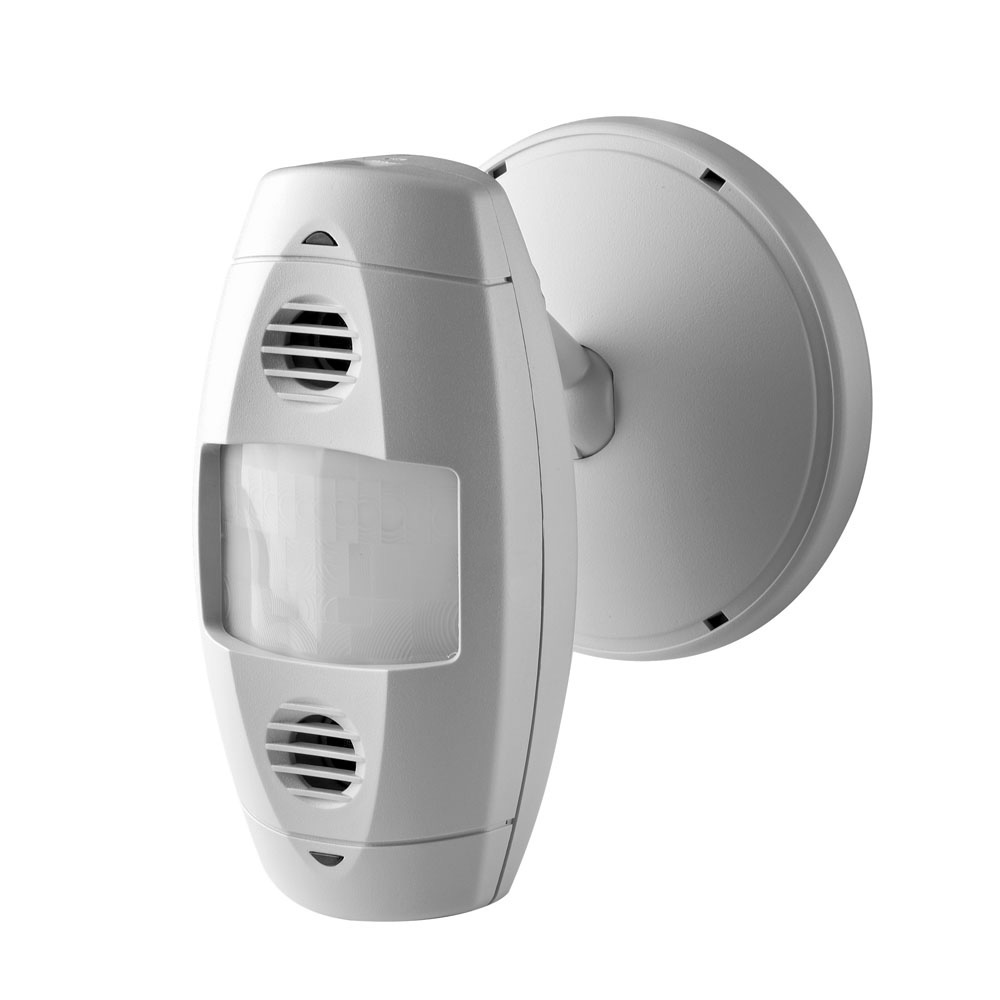

Leviton® OSW12-M0W Relay Switching Wall Mount Occupancy Sensor, 24 VAC, Multi-Technology (PIR/Ultrasonic) Sensor
Custom_Product_Images_Illustration
Leviton® OSW12-M0W Relay Switching Wall Mount Occupancy Sensor, 24 VAC, Multi-Technology (PIR/Ultrasonic) Sensor
SKU245390
MFGR #OSW12-M0W
Your Cost: $194.64/ea
The OSW12-M occupancy sensor uses ultrasonic sensing for maximum motion sensitivity and infrared sensing for highest lights-off reliability. The sensor continually analyzes and adjusts to changing conditions. The OSW12-M occupancy sensor uses the latest microprocessor based technology which permits the detector to continually adjust and optimize its performance. The detector requires a 24 volt OSPxx series power pack. By combining ultrasonic and infrared technology, the OSW12-M occupancy sensor provides excellent small motion sensitivity (US) and error immunity (IR). The mounting base, provided with the sensor, allows quick and easy mounting in corners, on wall or on ceilings. With ultrasonic and infrared sensing, this top-of-the-line sensor provides the highest-degree of immunity to false tripping. Auto adapting circuitry fine-tunes delay settings for "install and forget" simplicity.
The OSW12-M occupancy sensor uses ultrasonic sensing for maximum motion sensitivity and infrared sensing for highest lights-off reliability. The sensor continually analyzes and adjusts to changing conditions. The OSW12-M occupancy sensor uses the latest microprocessor based technology which permits the detector to continually adjust and optimize its performance. The detector requires a 24 volt OSPxx series power pack. By combining ultrasonic and infrared technology, the OSW12-M occupancy sensor provides excellent small motion sensitivity (US) and error immunity (IR). The mounting base, provided with the sensor, allows quick and easy mounting in corners, on wall or on ceilings. With ultrasonic and infrared sensing, this top-of-the-line sensor provides the highest-degree of immunity to false tripping. Auto adapting circuitry fine-tunes delay settings for "install and forget" simplicity.
Application Commercial ARRA Compliant C Brand Leviton® Buy American Compliant C Catalog Number OSW12-M0W Color White Control Output Automatic ON Country of Origin CN Coverage 1200 ft² Currency USD Dimensions 4.67 in H x 6.43 in W x 4.23 in D Environmental Conditions Operating Humidity (0 PCT to 95 PCT) EU RoHS Indicator C Frequency Response 32 kHz Gross Weight Per Pack 0.4650 lb Gross Weight per Pack Metric 0.40 Gross Weight UOM Metric kg Height 12.6250 in Height [Metric] 7.4625 cm Length 14.8750 in Length [Metric] 15.5575 cm Manufacturer Leviton Manufacturing Co., Inc. Mounting Ceiling;Wall Mounting Type Ceiling Power Rating 0.6 W Response Frequency 32 kHz Sensing Distance 1200 ft² Sensor Type Multi-Technology/PIR/Ultrasonic Size 4.67 H x 6.43 W x 4.23 D IN Standard ANCE Compliant;ASHRAE (Standard 90.1 Compliant);Code Compliance (California Title 24);CUL\US Listed 9034;FCC Compliant;NOM (057) Standards ARRA CompliantBuy American Act CompliantRoHS CompliantANCE CompliantASHRAE 90.1California Title 24 CompliantcULus 9034FCC ApprovedNOM 057 Stock Status NORMALLY STOCKED Temperature Rating 0 to +40 °C Time Delay 30 s to 30 min Type Multi-Technology Wall Corner UNSPSC 41111961 UPC 11 07847718645 UPC 12 078477186459 Viewing Angle 110 ° Voltage Rating 24 VDC Width 5.75 in Width [Metric] 14.6050 cm Commercial 5-Year Limited Warranty, Made in USA Neutral wire required Grounding wire required 24 VDC power pack required Commercial grade Ambient light Override Operating humidity 0 PCT to 95 PCT Combines PIR technology with a microprocessor based digital architecture. by eliminating false triggering, the sensor provides a trouble-free "install and forget" solution for lighting control Self-adjusting settings continuously analyze and adjust infrared sensitivity, timer operation, and long term performance Adjustable swivel neck rotates 80 deg vertically and 60 deg horizontally, can be used for ceiling or wall mounting Ambient light override prevents lights from turning on when there is ample natural light Non-volatile memory preserves all automatic and manual settings during power outages
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial |
| ARRA Compliant | C |
| Brand | Leviton® |
| Buy American Compliant | C |
| Catalog Number | OSW12-M0W |
| Color | White |
| Control Output | Automatic ON |
| Country of Origin | CN |
| Coverage | 1200 ft² |
| Currency | USD |
| Dimensions | 4.67 in H x 6.43 in W x 4.23 in D |
| Environmental Conditions | Operating Humidity (0 PCT to 95 PCT) |
| EU RoHS Indicator | C |
| Frequency Response | 32 kHz |
| Gross Weight Per Pack | 0.4650 lb |
| Gross Weight per Pack Metric | 0.40 |
| Gross Weight UOM Metric | kg |
| Height | 12.6250 in |
| Height [Metric] | 7.4625 cm |
| Length | 14.8750 in |
| Length [Metric] | 15.5575 cm |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Mounting | Ceiling;Wall |
| Mounting Type | Ceiling |
| Power Rating | 0.6 W |
| Response Frequency | 32 kHz |
| Sensing Distance | 1200 ft² |
| Sensor Type | Multi-Technology/PIR/Ultrasonic |
| Size | 4.67 H x 6.43 W x 4.23 D IN |
| Standard | ANCE Compliant;ASHRAE (Standard 90.1 Compliant);Code Compliance (California Title 24);CUL\US Listed 9034;FCC Compliant;NOM (057) |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantANCE CompliantASHRAE 90.1California Title 24 CompliantcULus 9034FCC ApprovedNOM 057 |
| Stock Status | NORMALLY STOCKED |
| Temperature Rating | 0 to +40 °C |
| Time Delay | 30 s to 30 min |
| Type | Multi-Technology Wall Corner |
| UNSPSC | 41111961 |
| UPC 11 | 07847718645 |
| UPC 12 | 078477186459 |
| Viewing Angle | 110 ° |
| Voltage Rating | 24 VDC |
| Width | 5.75 in |
| Width [Metric] | 14.6050 cm |
| Commercial |
| 5-Year Limited Warranty, Made in USA |
| Neutral wire required |
| Grounding wire required |
| 24 VDC power pack required |
| Commercial grade |
| Ambient light Override |
| Operating humidity 0 PCT to 95 PCT |
| Combines PIR technology with a microprocessor based digital architecture. by eliminating false triggering, the sensor provides a trouble-free "install and forget" solution for lighting control |
| Self-adjusting settings continuously analyze and adjust infrared sensitivity, timer operation, and long term performance |
| Adjustable swivel neck rotates 80 deg vertically and 60 deg horizontally, can be used for ceiling or wall mounting |
| Ambient light override prevents lights from turning on when there is ample natural light |
| Non-volatile memory preserves all automatic and manual settings during power outages |
