Leviton®

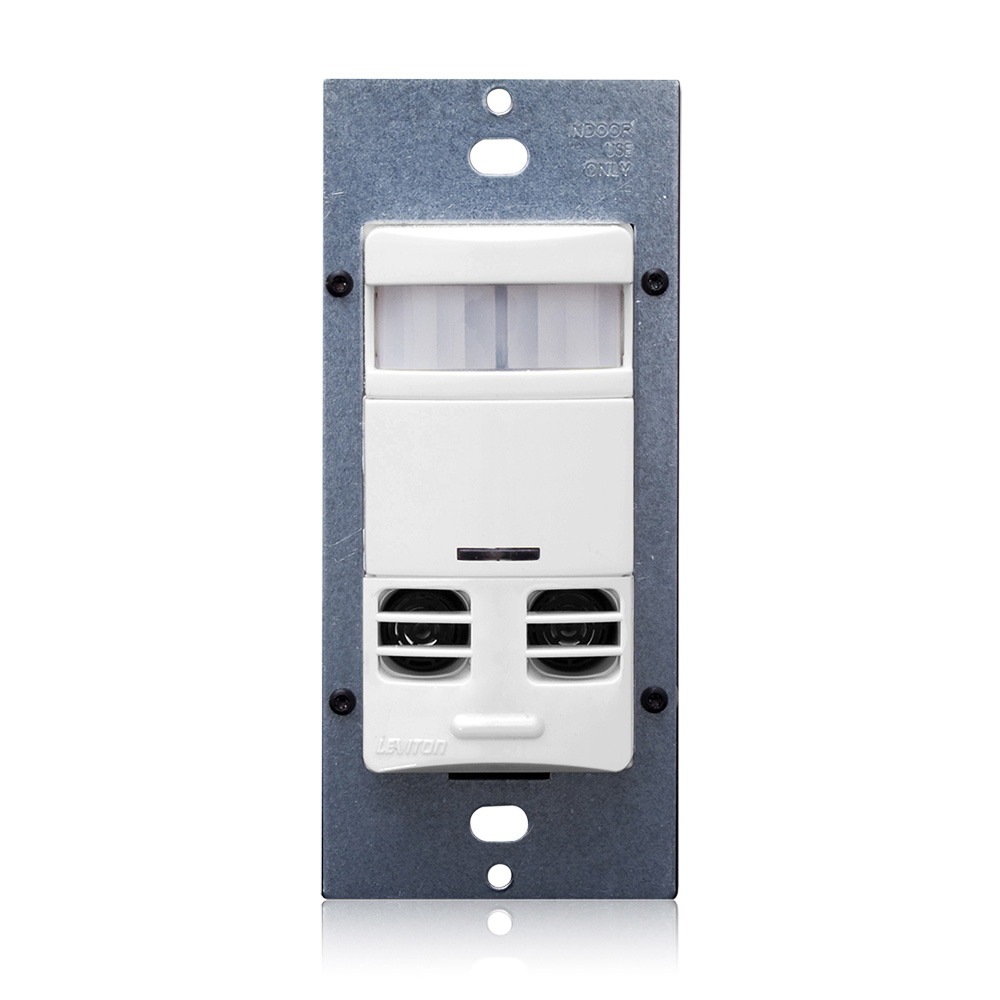

Leviton® OSSMT-M3W OSSMT Occupancy Sensor, 347 VAC, 2400 sq-ft Coverage, 180 deg, Wall Mount
Custom_Product_Images_Illustration
Leviton®
Leviton® OSSMT-M3W OSSMT Occupancy Sensor, 347 VAC, 2400 sq-ft Coverage, 180 deg, Wall Mount
SKU834280
MFGR #OSSMT-M3W
Your Cost: $105.36/ea
Leviton®'s OSSMT Multi-Technology Decora® wall switch occupancy sensor is used to provide automatic lighting control for energy savings and convenience in a variety of commercial applications.
Leviton®'s OSSMT Multi-Technology Decora® wall switch occupancy sensor is used to provide automatic lighting control for energy savings and convenience in a variety of commercial applications.
Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number OSSMT-M3W Color White Country of Origin UKN Currency USD Dimensions 46 in H x 1.75 in W x 1.85 in D Environmental Conditions Operating Temperature (0 to +40 DEG C);Storage Temperature (-10 to +85 DEG C);Humidity (20% to 90% Non-Condensing) EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Weight Per Pack 0.3800 lb Gross Weight per Pack Metric 0.17 Gross Weight UOM Metric kg Height 6.0000 in Height [Metric] 11.7475 cm Lamp Type LED Length 11.7500 in Length [Metric] 7.3025 cm Mounting Wall Power Consumption 390 @ 120V (U/S & PIR);190 @ 120V (PIR only);480 @ 277V (U/S & PIR);270 @ 277V (PIR only);500 @ 347V (U/S & PIR);350 @ 347V (PIR only) MILWTT Power Rating 190/270/350/390 mW Response Frequency 50/60 Hz Size 46 H x 1.75 W x 1.85 D in Standard cETL Listed;CEC Title 24 Compliant;FCC Compliant;NAFTA (CF434) Standards ARRA CompliantBuy American Act CompliantRoHS CompliantcULus/cETL ListedCEC Title 24 CompliantFCC ApprovedNAFTA CF434 Sub Brand Decora Supply Voltage 120/230/277/347 VAC Temperature Rating 0 to 40 °C Time Delay 30 s to 30 min Type Occupancy Sensor;Single-Pole Switch UNSPSC 39122236 UPC 11 07847755403 UPC 12 078477554036 Width 1.88 in Width [Metric] 4.7625 cm Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Coverage 2400 ft² Mounting Type Wall Sensor Type Multi Technology Viewing Angle 180 ° Voltage Rating 120/230/277/347 VAC Commercial Fast, Simple Installation Fits in a Standard Wall Box and Replaces a Single-Pole Wall-Switch, Neutral and No Neutral Options Available, Convenient Pushbutton Provides Manual-ON/OFF Light Switching at any Time, Segmented Fresnel Lens Provides Optimum Sensi Fast, simple installation, fits in a standard wallbox and replaces a 1-pole wall switch, neutral and no neutral options available, sensor can be ganged together with other units in a multiple-switch wallplate Low profile design eliminates obtrusive "scanning device" look, elegant Decora® wallplates complement any interior for sleek aesthetics, uses Decora® wallplates and coordinates with Leviton® popular line of Decora® wiring devices Convenient pushbutton provides manual ON/OFF light switching at any time Segmented fresnel lens provides optimum sensitivity and performance designed with an extensive "minor motion" area where even slight body movements will be detected Manual ON/auto OFF mode for installations where manual ON switching is required but auto OFF switching is still desired for CEC title 24 energy savings Ambient light recognition, integrated light sensor prevents lights from turning ON when the room is adequately illuminated by natural light Self-adaptive technology, callbacks for adjustment are eliminated, time delay and sensitivity settings are continually adjusted to occupant patterns of use in auto adapt mode Exclusive Walk-through feature provides increased energy savings by not leaving the lights ON for an extended period after only momentary occupancy False detection circuitry Small motion sensitivity ultrasonic technology provides excellent minor motion sensitivity Ability to disable U/S (OSSMT-M), for added flexibility OSSMT-G has the ability to disable both PIR and U/S Presentation mode feature for slide or film presentations allows pushbuttons to turn lights OFF and keep them OFF while the room is occupied True zero cross relay switches at the zero crossing point of the AC power curve to ensure maximum contactor life and compatibility with electronic ballasts 1/4 hp at 120 V power rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | OSSMT-M3W |
| Color | White |
| Country of Origin | UKN |
| Currency | USD |
| Dimensions | 46 in H x 1.75 in W x 1.85 in D |
| Environmental Conditions | Operating Temperature (0 to +40 DEG C);Storage Temperature (-10 to +85 DEG C);Humidity (20% to 90% Non-Condensing) |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 0.3800 lb |
| Gross Weight per Pack Metric | 0.17 |
| Gross Weight UOM Metric | kg |
| Height | 6.0000 in |
| Height [Metric] | 11.7475 cm |
| Lamp Type | LED |
| Length | 11.7500 in |
| Length [Metric] | 7.3025 cm |
| Mounting | Wall |
| Power Consumption | 390 @ 120V (U/S & PIR);190 @ 120V (PIR only);480 @ 277V (U/S & PIR);270 @ 277V (PIR only);500 @ 347V (U/S & PIR);350 @ 347V (PIR only) MILWTT |
| Power Rating | 190/270/350/390 mW |
| Response Frequency | 50/60 Hz |
| Size | 46 H x 1.75 W x 1.85 D in |
| Standard | cETL Listed;CEC Title 24 Compliant;FCC Compliant;NAFTA (CF434) |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantcULus/cETL ListedCEC Title 24 CompliantFCC ApprovedNAFTA CF434 |
| Sub Brand | Decora |
| Supply Voltage | 120/230/277/347 VAC |
| Temperature Rating | 0 to 40 °C |
| Time Delay | 30 s to 30 min |
| Type | Occupancy Sensor;Single-Pole Switch |
| UNSPSC | 39122236 |
| UPC 11 | 07847755403 |
| UPC 12 | 078477554036 |
| Width | 1.88 in |
| Width [Metric] | 4.7625 cm |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Coverage | 2400 ft² |
| Mounting Type | Wall |
| Sensor Type | Multi Technology |
| Viewing Angle | 180 ° |
| Voltage Rating | 120/230/277/347 VAC |
| Commercial |
| Fast, Simple Installation Fits in a Standard Wall Box and Replaces a Single-Pole Wall-Switch, Neutral and No Neutral Options Available, Convenient Pushbutton Provides Manual-ON/OFF Light Switching at any Time, Segmented Fresnel Lens Provides Optimum Sensi |
| Fast, simple installation, fits in a standard wallbox and replaces a 1-pole wall switch, neutral and no neutral options available, sensor can be ganged together with other units in a multiple-switch wallplate |
| Low profile design eliminates obtrusive "scanning device" look, elegant Decora® wallplates complement any interior for sleek aesthetics, uses Decora® wallplates and coordinates with Leviton® popular line of Decora® wiring devices |
| Convenient pushbutton provides manual ON/OFF light switching at any time |
| Segmented fresnel lens provides optimum sensitivity and performance designed with an extensive "minor motion" area where even slight body movements will be detected |
| Manual ON/auto OFF mode for installations where manual ON switching is required but auto OFF switching is still desired for CEC title 24 energy savings |
| Ambient light recognition, integrated light sensor prevents lights from turning ON when the room is adequately illuminated by natural light |
| Self-adaptive technology, callbacks for adjustment are eliminated, time delay and sensitivity settings are continually adjusted to occupant patterns of use in auto adapt mode |
| Exclusive Walk-through feature provides increased energy savings by not leaving the lights ON for an extended period after only momentary occupancy |
| False detection circuitry |
| Small motion sensitivity ultrasonic technology provides excellent minor motion sensitivity |
| Ability to disable U/S (OSSMT-M), for added flexibility OSSMT-G has the ability to disable both PIR and U/S |
| Presentation mode feature for slide or film presentations allows pushbuttons to turn lights OFF and keep them OFF while the room is occupied |
| True zero cross relay switches at the zero crossing point of the AC power curve to ensure maximum contactor life and compatibility with electronic ballasts |
| 1/4 hp at 120 V power rating |
