Leviton®

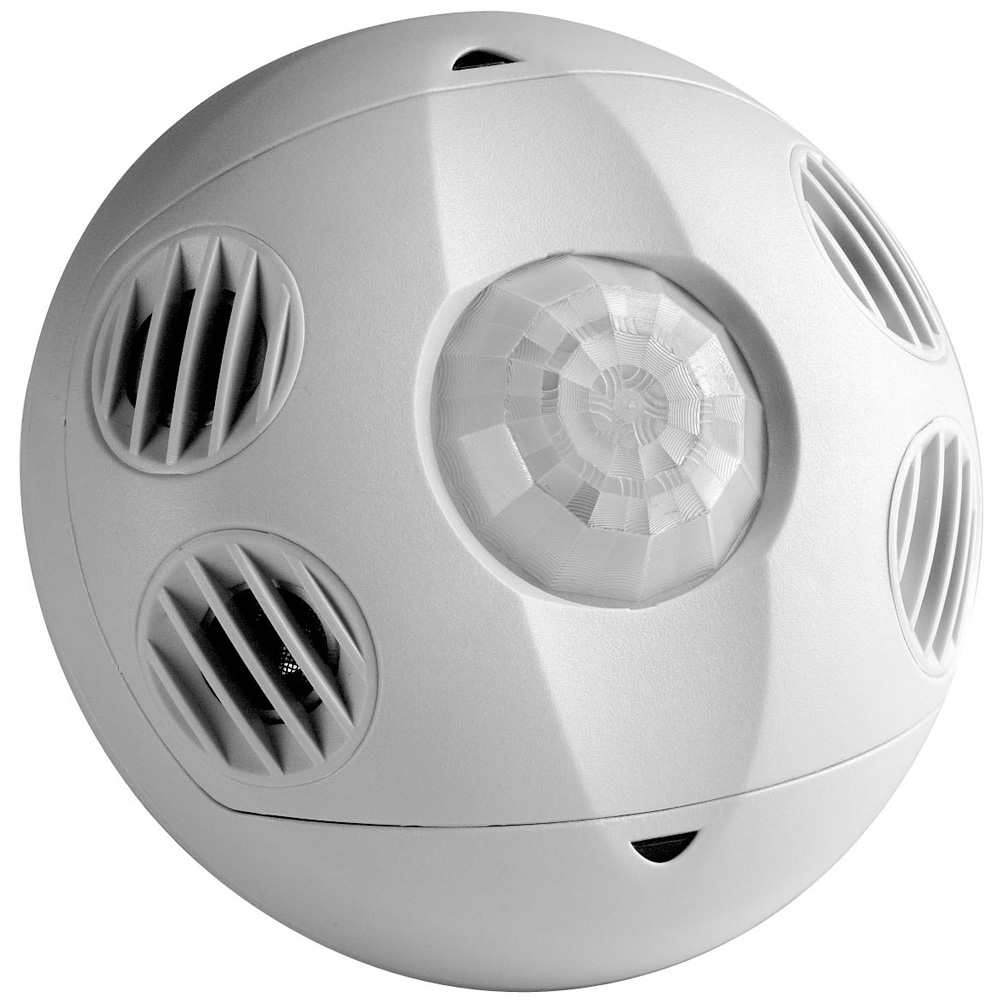

Leviton® OSC20-MWW Auto Adapting Low Voltage Multi-Technology Walk Through Occupancy Sensor, 24 VDC, PIR/Ultrasonic Sensor, 2000 sq-ft Coverage, 180 deg Viewing, Ceiling Mount
Custom_Product_Images_Illustration
Leviton®
Leviton® OSC20-MWW Auto Adapting Low Voltage Multi-Technology Walk Through Occupancy Sensor, 24 VDC, PIR/Ultrasonic Sensor, 2000 sq-ft Coverage, 180 deg Viewing, Ceiling Mount
SKU1284563
MFGR #OSC20-MWW
$/ea
Leviton® Occupancy Sensor, Auto Adapting Low Voltage Multi-Technology Walk Through, 24 VDC, 25 mA, PIR/Ultrasonic Sensor, 2000 sq-ft Coverage, 180 deg Viewing, 30 s to 30 min Time Delay, LED Lamp, 32 kHz Response, Wired Connection, 24 VDC Control Output, Ceiling Mounting, 32 to 104 deg F, Plastic, True White
Leviton® Occupancy Sensor, Auto Adapting Low Voltage Multi-Technology Walk Through, 24 VDC, 25 mA, PIR/Ultrasonic Sensor, 2000 sq-ft Coverage, 180 deg Viewing, 30 s to 30 min Time Delay, LED Lamp, 32 kHz Response, Wired Connection, 24 VDC Control Output, Ceiling Mounting, 32 to 104 deg F, Plastic, True White
Amperage Rating 25 Application Cafeterias, Classrooms, Computer Rooms, Conference Rooms, Day Care Centers, Filing Rooms, Works ARRA Compliant C Buy American Compliant C Catalog Number OSC20-MWW Color True White Connection Type Wired Control Output 24 Country of Origin CN Currency USD Dimensions 4.2 in W x 1.57 in D EU RoHS Indicator C Gross Weight Per Pack 5.5100 lb Gross Weight per Pack Metric 0.25 Gross Weight UOM Metric kg Hazard Class N Height 9.5000 in Lamp Type LED Length 11.7500 in Material Plastic Measuring Range 2000 Sq. Ft. Mounting Ceiling Response Frequency 32 Temperature Rating 32 to 104 Time Delay 30 s to 30 min Type Auto Adapting Low Voltage Multi-Technology Walk Through UNSPSC 41111961 UPC 11 07847790107 UPC 12 078477901076 Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Coverage 2000 Mounting Type Ceiling Sensor Type PIR/Ultrasonic Viewing Angle 180 Voltage Rating 24 VDC Cafeterias, Classrooms, Computer Rooms, Conference Rooms, Day Care Centers, Filing Rooms, Works Multi-Technology Self-adjusting - internal microprocessor continually analyzes, evaluates and adjusts sensitivity and time delay settings, performance is kept at a maximum and user complaints are Fast, simple installation - easy ceiling mount, 3-wire connection and twist lock sensor a Maximum reliability, low cost - digital circuitry uses a minimum of components Small motion sensitivity: the ultrasonic technology provides excellent small motion sensitivity Wide coverage - units from 500 to 2000 sq-ft Rugged, high impact, injection molded plastic device, custom true white color to meet true white applications
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 25 |
| Application | Cafeterias, Classrooms, Computer Rooms, Conference Rooms, Day Care Centers, Filing Rooms, Works |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | OSC20-MWW |
| Color | True White |
| Connection Type | Wired |
| Control Output | 24 |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 4.2 in W x 1.57 in D |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 5.5100 lb |
| Gross Weight per Pack Metric | 0.25 |
| Gross Weight UOM Metric | kg |
| Hazard Class | N |
| Height | 9.5000 in |
| Lamp Type | LED |
| Length | 11.7500 in |
| Material | Plastic |
| Measuring Range | 2000 Sq. Ft. |
| Mounting | Ceiling |
| Response Frequency | 32 |
| Temperature Rating | 32 to 104 |
| Time Delay | 30 s to 30 min |
| Type | Auto Adapting Low Voltage Multi-Technology Walk Through |
| UNSPSC | 41111961 |
| UPC 11 | 07847790107 |
| UPC 12 | 078477901076 |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Coverage | 2000 |
| Mounting Type | Ceiling |
| Sensor Type | PIR/Ultrasonic |
| Viewing Angle | 180 |
| Voltage Rating | 24 VDC |
| Cafeterias, Classrooms, Computer Rooms, Conference Rooms, Day Care Centers, Filing Rooms, Works |
| Multi-Technology |
| Self-adjusting - internal microprocessor continually analyzes, evaluates and adjusts sensitivity and time delay settings, performance is kept at a maximum and user complaints are |
| Fast, simple installation - easy ceiling mount, 3-wire connection and twist lock sensor a |
| Maximum reliability, low cost - digital circuitry uses a minimum of components |
| Small motion sensitivity: the ultrasonic technology provides excellent small motion sensitivity |
| Wide coverage - units from 500 to 2000 sq-ft |
| Rugged, high impact, injection molded plastic device, custom true white color to meet true white applications |
