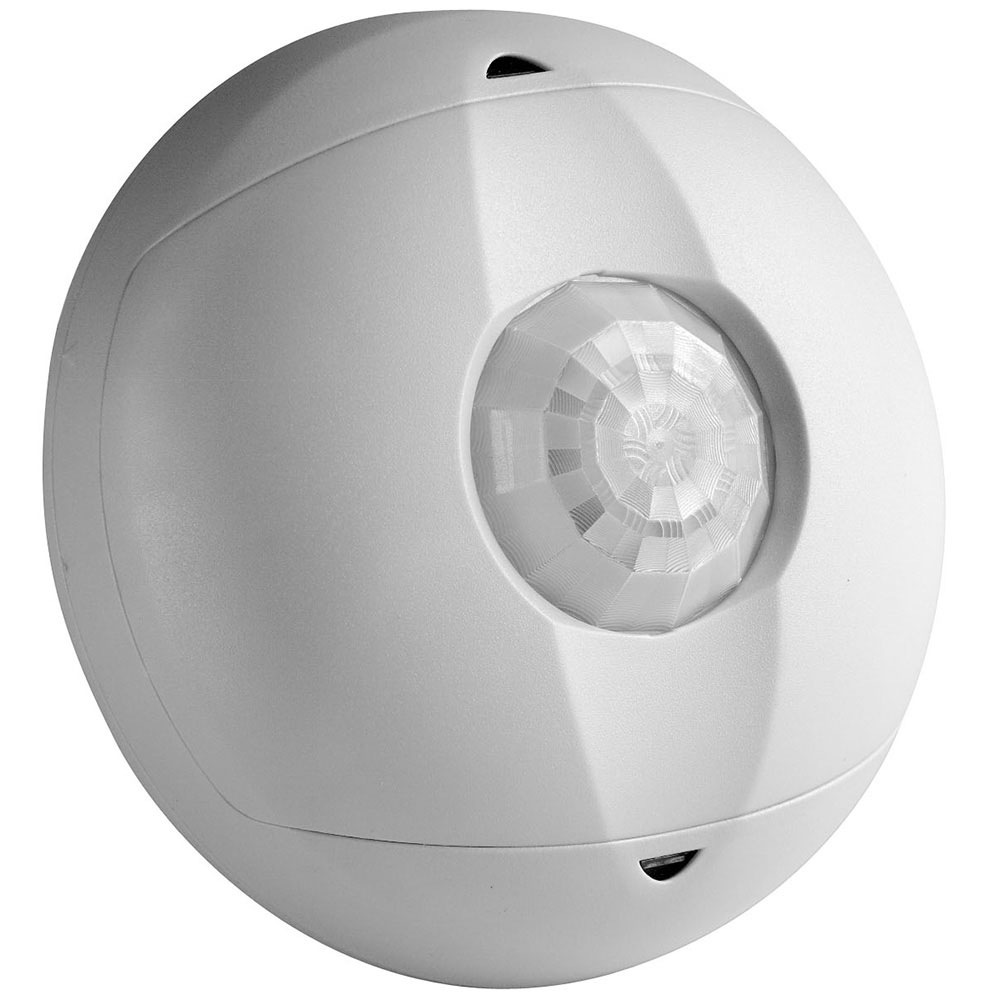

Leviton® OSC15-IAW OSC Commercial Grade Low Voltage Occupancy Sensor, 24 VDC, Passive Infrared Sensor, 1500 sq-ft Coverage
Custom_Product_Images_Illustration
Leviton® OSC15-IAW OSC Commercial Grade Low Voltage Occupancy Sensor, 24 VDC, Passive Infrared Sensor, 1500 sq-ft Coverage
SKU834251
MFGR #OSC15-IAW
Your Cost: $128.55/ea
The OSCxx-I0W infrared ceiling sensor is a low-voltage occupancy sensor that works in conjunction with the Leviton OSPxx power pack to control lighting. The sensor's main function is to turn the lights ON or maintain the lights ON while movement is detected within the sensor's range and to turn the lights OFF when the space is left unoccupied. The sensor uses a dual element PIR heat detector that resides behind a multi-zone optical lens. This fresnel lens establishes dozens of zones of detection. The sensor is sensitive to the heat emitted by the human body. In order to trigger the sensor, the source of heat must move from one zone of sensing to another. Nonmoving hot objects will not cause the lights to turn ON (like incandescent lights).
The OSCxx-I0W infrared ceiling sensor is a low-voltage occupancy sensor that works in conjunction with the Leviton OSPxx power pack to control lighting. The sensor's main function is to turn the lights ON or maintain the lights ON while movement is detected within the sensor's range and to turn the lights OFF when the space is left unoccupied. The sensor uses a dual element PIR heat detector that resides behind a multi-zone optical lens. This fresnel lens establishes dozens of zones of detection. The sensor is sensitive to the heat emitted by the human body. In order to trigger the sensor, the source of heat must move from one zone of sensing to another. Nonmoving hot objects will not cause the lights to turn ON (like incandescent lights).
Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number OSC15-IAW Country of Origin US Currency USD Environmental Conditions Operating Humidity (0 PCT to 95 PCT) EU RoHS Indicator C Gross Weight Per Pack 0.3000 lb Gross Weight per Pack Metric 0.14 Gross Weight UOM Metric kg Height 9.5000 in Height [Metric] 6.6675 cm Length 11.7500 in Length [Metric] 11.2725 cm Mounting Ceiling Sensing Distance 1500 ft² Size 4.20 (Dia) x 1.55 D in Standard ANCE Compliant;ASHRAE (Standard 90.1 Compliant);Code Compliance (California Title 24);CUL\US (Listed 9034);FCC Compliant;NOM (057) Temperature Rating 0 to +40 °C Type Passive Infrared UNSPSC 41111961 UPC 11 07847750864 UPC 12 078477508640 Width 4.44 in Width [Metric] 11.2725 cm Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Voltage Rating 24 VDC Commercial Small Size, Accurate, Consistant Switching, 5-Year Limited Waranty
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
Application | Commercial |
ARRA Compliant | C |
Buy American Compliant | C |
Catalog Number | OSC15-IAW |
Country of Origin | US |
Currency | USD |
Environmental Conditions | Operating Humidity (0 PCT to 95 PCT) |
EU RoHS Indicator | C |
Gross Weight Per Pack | 0.3000 lb |
Gross Weight per Pack Metric | 0.14 |
Gross Weight UOM Metric | kg |
Height | 9.5000 in |
Height [Metric] | 6.6675 cm |
Length | 11.7500 in |
Length [Metric] | 11.2725 cm |
Mounting | Ceiling |
Sensing Distance | 1500 ft² |
Size | 4.20 (Dia) x 1.55 D in |
Standard | ANCE Compliant;ASHRAE (Standard 90.1 Compliant);Code Compliance (California Title 24);CUL\US (Listed 9034);FCC Compliant;NOM (057) |
Temperature Rating | 0 to +40 °C |
Type | Passive Infrared |
UNSPSC | 41111961 |
UPC 11 | 07847750864 |
UPC 12 | 078477508640 |
Width | 4.44 in |
Width [Metric] | 11.2725 cm |
Stock Status | NONSTOCK |
Brand | Leviton® |
Manufacturer | Leviton Manufacturing Co., Inc. |
Voltage Rating | 24 VDC |
Commercial |
Small Size, Accurate, Consistant Switching, 5-Year Limited Waranty |
