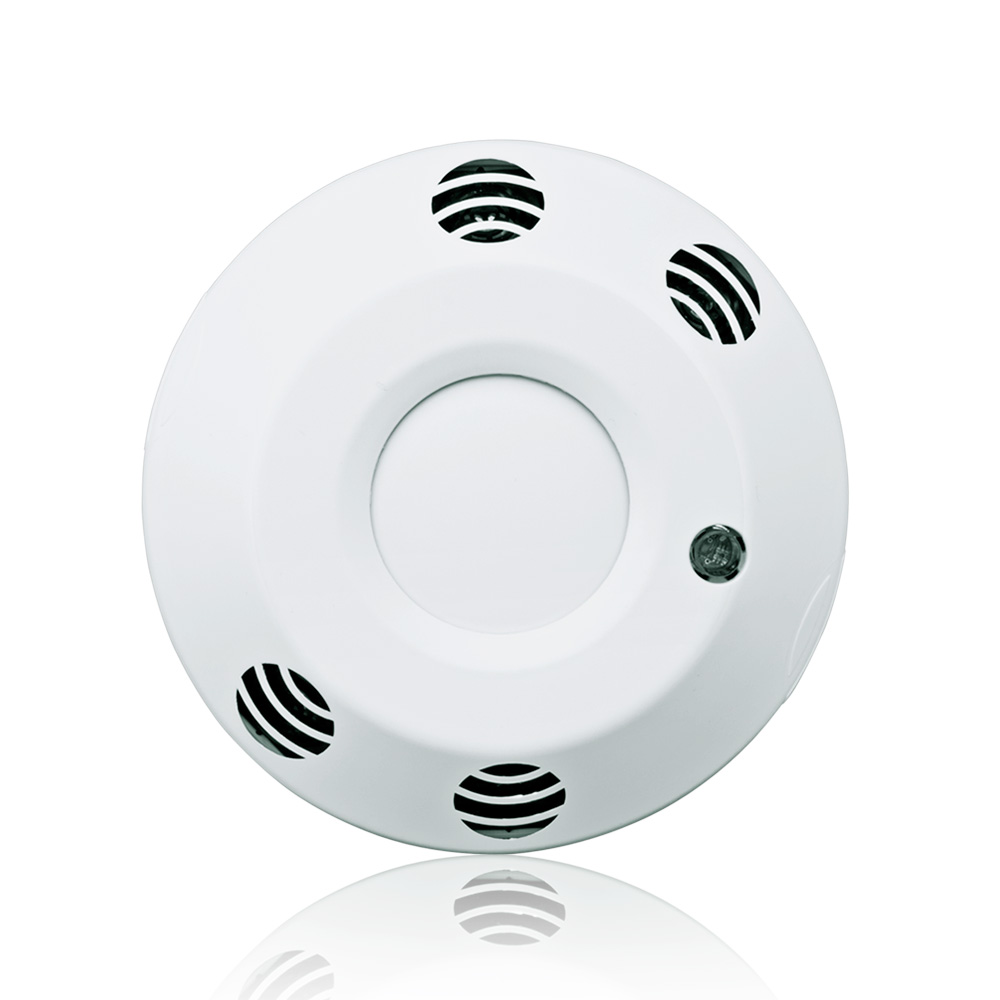

Leviton® ODC10-UDW Provolt™ ODC Line Voltage Occupancy Sensor, 120/230/277 VAC, Ultrasonic Sensor, 1000 sq-ft Coverage, 360 deg
Custom_Product_Images_Illustration
Leviton® ODC10-UDW Provolt™ ODC Line Voltage Occupancy Sensor, 120/230/277 VAC, Ultrasonic Sensor, 1000 sq-ft Coverage, 360 deg
SKU827553
MFGR #ODC10-UDW
Your Cost: $191.50/ea
The Leviton Provolt series combine line voltage occupancy sensors and photocells into a self-contained unit. The integrated design alleviates the need for separate power pack and occupancy sensor wiring making it a low-cost, efficient energy solution for new construction and retrofits.
The Leviton Provolt series combine line voltage occupancy sensors and photocells into a self-contained unit. The integrated design alleviates the need for separate power pack and occupancy sensor wiring making it a low-cost, efficient energy solution for new construction and retrofits.
Amperage Rating 60 to 30 mA Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number ODC10-UDW Color White Connection Type Wired Control Output Automatic On/Off/Manual On Country of Origin CN Currency USD Dimensions 4.8 in Dia x 2.27 in H Enclosure Type NEMA 410 Environmental Conditions Storage Temperature (-26 DEG C to +71 DEG C);Relative Humidity (0 to 90 PCT) EU RoHS Indicator C Frequency Response 50 Hz Gross Weight Per Pack 0.8600 lb Gross Weight per Pack Metric 0.39 Gross Weight UOM Metric kg Height 10.5000 in Height [Metric] 19.6850 cm Length 16.0000 in Length [Metric] 14.6050 cm Mounting Ceiling Replaced Catalog Number ODC10-MDW Response Frequency 50 Hz Sensing Distance 1000 ft² Size 4.80 (Dia) x 2.27 H in Standard CA Title 20 Complaint;UL 924;NEMA 410;UL (773A);NOM Certified;RoHS Complaint;NY LLC48 Complaint Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCA Title 20UL 924/773ANOM CertifiedNY LLC48 Temperature Rating 0 to +40 °C Time Delay 30 s to 30 min Type Ultrasonic UNSPSC 41111961.0 UPC 11 07847754000 UPC 12 078477540008 Width 4.38 in Width [Metric] 11.1125 cm Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Coverage 1000 ft² Mounting Type Ceiling Sensor Type Ultrasonic Voltage Rating 120 to 277 V Commercial Adjustable Time Delay, Configurable for Manual ON/Auto OFF or Auto ON/Auto OFF, 5-Year Limited Warranty Utilizes sensors which emit non-audible sound waves and sense movement Any movement within the sensor's field of view causes a shift in the original emitted frequency, the sensor identifies the change as movement and controls light accordingly U/S models are immune to external ultrasonic signals from other sources such as white boards delivering uninterrupted performance Auto-adapting time delay and sensitivity are continually adjusted to occupancy pattern of use Delayed OFF timer the sensor will turn lights OFF if no motion is detected after a specified time Exclusive Walk-through feature provides increased energy savings by not leaving the lights ON for an extended period after only momentary occupancy Time delay and saved settings are protected during power outages and will return to the last known state Industry exclusive self-configuring local manual switch input, momentary or maintained switches are supported Presentation mode feature for slide or film presentations allows pushbuttons to turn lights OFF and keep them OFF while the room is occupied Manual switch and emergency override are class 1 and 2 circuits, class 2 circuits provided for flexibility Industry exclusive "fail safe" circuitry in the event of product failure, return to closed feature causes the relay to default ON which eliminates life safety concerns Industry exclusive HIS (high inrush stability) technology designed to handle today's high inrush electronic ballast loads and offer unmatched durability and service Robust and reliable mechanically held 10 A latching relay provides dependability and robust performance for all load types and provides energy savings over electronically held relays Adjustable time delay Configurable for manual ON/automatic OFF or automatic ON/automatic OFF
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 60 to 30 mA |
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | ODC10-UDW |
| Color | White |
| Connection Type | Wired |
| Control Output | Automatic On/Off/Manual On |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 4.8 in Dia x 2.27 in H |
| Enclosure Type | NEMA 410 |
| Environmental Conditions | Storage Temperature (-26 DEG C to +71 DEG C);Relative Humidity (0 to 90 PCT) |
| EU RoHS Indicator | C |
| Frequency Response | 50 Hz |
| Gross Weight Per Pack | 0.8600 lb |
| Gross Weight per Pack Metric | 0.39 |
| Gross Weight UOM Metric | kg |
| Height | 10.5000 in |
| Height [Metric] | 19.6850 cm |
| Length | 16.0000 in |
| Length [Metric] | 14.6050 cm |
| Mounting | Ceiling |
| Replaced Catalog Number | ODC10-MDW |
| Response Frequency | 50 Hz |
| Sensing Distance | 1000 ft² |
| Size | 4.80 (Dia) x 2.27 H in |
| Standard | CA Title 20 Complaint;UL 924;NEMA 410;UL (773A);NOM Certified;RoHS Complaint;NY LLC48 Complaint |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCA Title 20UL 924/773ANOM CertifiedNY LLC48 |
| Temperature Rating | 0 to +40 °C |
| Time Delay | 30 s to 30 min |
| Type | Ultrasonic |
| UNSPSC | 41111961.0 |
| UPC 11 | 07847754000 |
| UPC 12 | 078477540008 |
| Width | 4.38 in |
| Width [Metric] | 11.1125 cm |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Coverage | 1000 ft² |
| Mounting Type | Ceiling |
| Sensor Type | Ultrasonic |
| Voltage Rating | 120 to 277 V |
| Commercial |
| Adjustable Time Delay, Configurable for Manual ON/Auto OFF or Auto ON/Auto OFF, 5-Year Limited Warranty |
| Utilizes sensors which emit non-audible sound waves and sense movement |
| Any movement within the sensor's field of view causes a shift in the original emitted frequency, the sensor identifies the change as movement and controls light accordingly |
| U/S models are immune to external ultrasonic signals from other sources such as white boards delivering uninterrupted performance |
| Auto-adapting time delay and sensitivity are continually adjusted to occupancy pattern of use |
| Delayed OFF timer the sensor will turn lights OFF if no motion is detected after a specified time |
| Exclusive Walk-through feature provides increased energy savings by not leaving the lights ON for an extended period after only momentary occupancy |
| Time delay and saved settings are protected during power outages and will return to the last known state |
| Industry exclusive self-configuring local manual switch input, momentary or maintained switches are supported |
| Presentation mode feature for slide or film presentations allows pushbuttons to turn lights OFF and keep them OFF while the room is occupied |
| Manual switch and emergency override are class 1 and 2 circuits, class 2 circuits provided for flexibility |
| Industry exclusive "fail safe" circuitry in the event of product failure, return to closed feature causes the relay to default ON which eliminates life safety concerns |
| Industry exclusive HIS (high inrush stability) technology designed to handle today's high inrush electronic ballast loads and offer unmatched durability and service |
| Robust and reliable mechanically held 10 A latching relay provides dependability and robust performance for all load types and provides energy savings over electronically held relays |
| Adjustable time delay |
| Configurable for manual ON/automatic OFF or automatic ON/automatic OFF |
