Leviton®

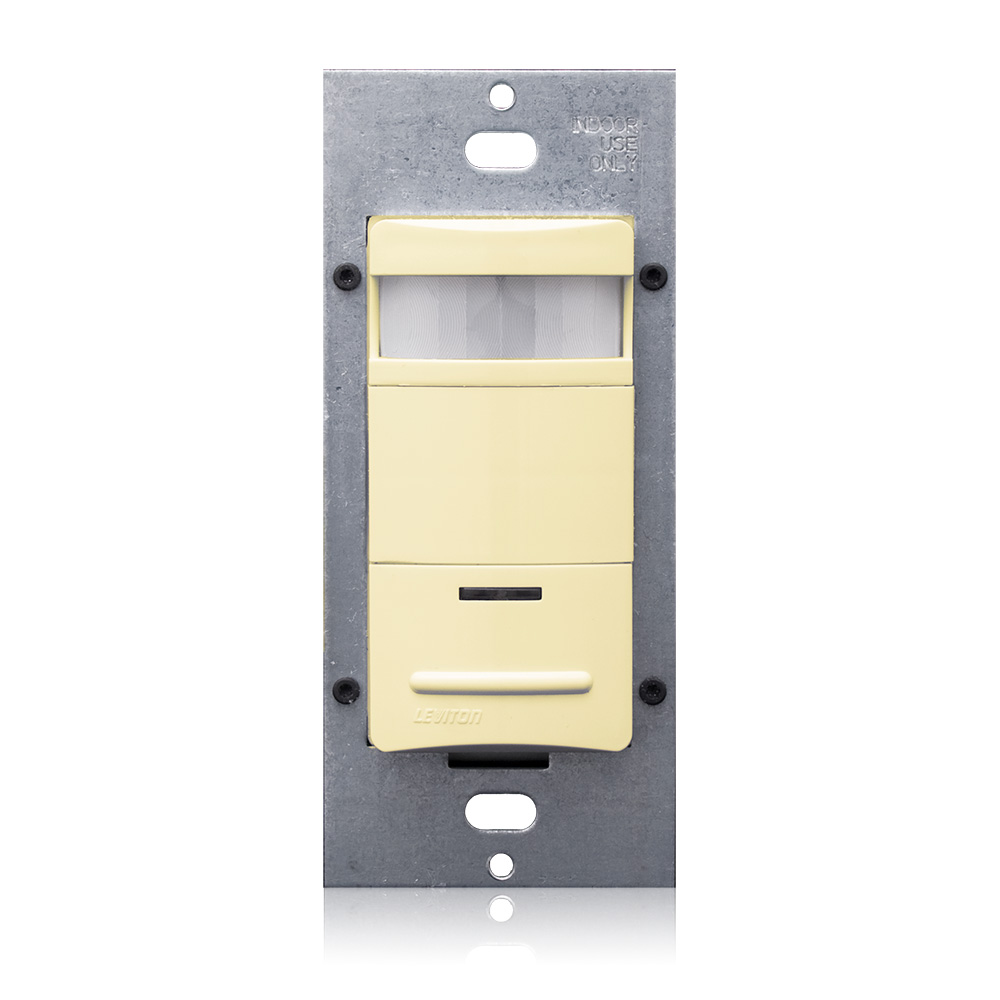

Leviton® Lev-Lok® MDS15-IDI 1-Pole Low-Profile Photocell Controlled Single Relay Occupancy Sensor, 120/230/277 VAC, PIR Sensor, 2100 sq-ft Coverage, 180 deg Viewing, Wall Mount
Custom_Product_Images_Illustration
Leviton®
Leviton® Lev-Lok® MDS15-IDI 1-Pole Low-Profile Photocell Controlled Single Relay Occupancy Sensor, 120/230/277 VAC, PIR Sensor, 2100 sq-ft Coverage, 180 deg Viewing, Wall Mount
SKU1292661
MFGR #MDS15-IDI
Your Cost: $105.65/ea
Leviton® Lev-Lok® Occupancy Sensor, 1-Pole Low-Profile Photocell Controlled Single Relay, 120/230/277 VAC, 100/277 mW Power, PIR Sensor, 2100 sq-ft Coverage, 180 deg Viewing, 30 s to 30 min Time Delay, Fluorescent/Incandescent Lamp, 50/60 Hz Response, Automatic On/Manual On Control Output, Wall Mounting, 0 to 50 deg C, Ivory, 46 in H x 1.75 in W x 2.67 in D Dimensions
Leviton® Lev-Lok® Occupancy Sensor, 1-Pole Low-Profile Photocell Controlled Single Relay, 120/230/277 VAC, 100/277 mW Power, PIR Sensor, 2100 sq-ft Coverage, 180 deg Viewing, 30 s to 30 min Time Delay, Fluorescent/Incandescent Lamp, 50/60 Hz Response, Automatic On/Manual On Control Output, Wall Mounting, 0 to 50 deg C, Ivory, 46 in H x 1.75 in W x 2.67 in D Dimensions
Application Small Office, Conference Rooms, Lounges, Classrooms, Private Restrooms, Heavier Loads, Storage ARRA Compliant C Buy American Compliant C Catalog Number MDS15-IDI Country of Origin CN Currency USD Environmental Conditions Operating Temperature Range (0 to +50 DEG C);Humidity (20% to 90% Non-Condensing) EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Weight Per Pack 0.4200 lb Gross Weight per Pack Metric 0.19 Gross Weight UOM Metric kg Hazard Class N Height 4.6250 in Height [Metric] 10.4775 cm Length 12.7500 in Length [Metric] 6.1925 cm Mounting Wall Switch Power Consumption 100 (120 V);277 (250 V) MILWTT Size 46 H x 1.75 W x 2.67 D IN Standard UL\cUL Listed, Complies with CEC Title 24, Complies with FCC Regulations, NOM Supply Voltage 120/230/277 VAC Type Occupancy Sensor UNSPSC 45111808 UPC 11 07847754465 UPC 12 078477544655 Width 2.44 in Width [Metric] 6.1925 cm Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Small Office, Conference Rooms, Lounges, Classrooms, Private Restrooms, Heavier Loads, Storage Fits in Standard Wallbox and Replaces Single-Pole Wall Switch, Gangable With Other Units, Convenient Pushbutton Provides Manual On/Off Light Switching at any Time, Two Dual Element PIR Sensors used to Widen Detection Range, Vandal Resistant PIR Lens, Fals Fits in standard wallbox and replaces 1-pole wall switch, gangable with other units, ground connection required Low profile design eliminates obtrusive "scanning device" look Elegant Decora® wallplates compliment any interior for sleek aesthetics, uses Decora® wallplates 180 deg field of view provides approximately 2100 sq-ft of coverage Convenient pushbutton provides manual ON/OFF light switching at any time Two dual element PIR sensors used to widen detection range Segmented fresnel lens provides optimum sensitivity and performance Designed with an extensive ''minor motion'' area where even slight body movements will be det Vandal resistant PIR lens The Lev-Lok® wiring module is keyed so that it cannot be installed incorrectly, saving time during inst Horizontal f
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Small Office, Conference Rooms, Lounges, Classrooms, Private Restrooms, Heavier Loads, Storage |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | MDS15-IDI |
| Country of Origin | CN |
| Currency | USD |
| Environmental Conditions | Operating Temperature Range (0 to +50 DEG C);Humidity (20% to 90% Non-Condensing) |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 0.4200 lb |
| Gross Weight per Pack Metric | 0.19 |
| Gross Weight UOM Metric | kg |
| Hazard Class | N |
| Height | 4.6250 in |
| Height [Metric] | 10.4775 cm |
| Length | 12.7500 in |
| Length [Metric] | 6.1925 cm |
| Mounting | Wall Switch |
| Power Consumption | 100 (120 V);277 (250 V) MILWTT |
| Size | 46 H x 1.75 W x 2.67 D IN |
| Standard | UL\cUL Listed, Complies with CEC Title 24, Complies with FCC Regulations, NOM |
| Supply Voltage | 120/230/277 VAC |
| Type | Occupancy Sensor |
| UNSPSC | 45111808 |
| UPC 11 | 07847754465 |
| UPC 12 | 078477544655 |
| Width | 2.44 in |
| Width [Metric] | 6.1925 cm |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Small Office, Conference Rooms, Lounges, Classrooms, Private Restrooms, Heavier Loads, Storage |
| Fits in Standard Wallbox and Replaces Single-Pole Wall Switch, Gangable With Other Units, Convenient Pushbutton Provides Manual On/Off Light Switching at any Time, Two Dual Element PIR Sensors used to Widen Detection Range, Vandal Resistant PIR Lens, Fals |
| Fits in standard wallbox and replaces 1-pole wall switch, gangable with other units, ground connection required |
| Low profile design eliminates obtrusive "scanning device" look |
| Elegant Decora® wallplates compliment any interior for sleek aesthetics, uses Decora® wallplates |
| 180 deg field of view provides approximately 2100 sq-ft of coverage |
| Convenient pushbutton provides manual ON/OFF light switching at any time |
| Two dual element PIR sensors used to widen detection range |
| Segmented fresnel lens provides optimum sensitivity and performance |
| Designed with an extensive ''minor motion'' area where even slight body movements will be det |
| Vandal resistant PIR lens |
| The Lev-Lok® wiring module is keyed so that it cannot be installed incorrectly, saving time during inst |
| Horizontal f |
