Leviton®

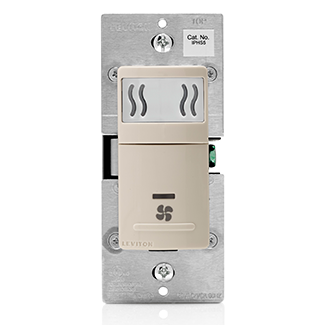

Leviton® IPHS5-1LT Humidity Sensor and Fan Control, 120 VAC, 3 A, Manual Operational Mode
Custom_Product_Images_Illustration
Leviton®
Leviton® IPHS5-1LT Humidity Sensor and Fan Control, 120 VAC, 3 A, Manual Operational Mode
SKU1280786
MFGR #IPHS5-1LT
Your Cost: $57.50/ea
Leviton® Humidity Sensor and Fan Control, Series: IPHS5, 120 VAC, 3 A, 1/6 HP 150 W LED/600 W Incandescent 400VA MLV/Fluorescent Power, Manual Operational Mode, Wall Mounting, Screw Terminal, 1-3/4 in W x 1.22 in D x 4.13 in H Dimensions
Leviton® Humidity Sensor and Fan Control, Series: IPHS5, 120 VAC, 3 A, 1/6 HP 150 W LED/600 W Incandescent 400VA MLV/Fluorescent Power, Manual Operational Mode, Wall Mounting, Screw Terminal, 1-3/4 in W x 1.22 in D x 4.13 in H Dimensions
Application For controlling ventilation in areas of high humidity, dampness or rooms prone to condensation ARRA Compliant C Buy American Compliant C Catalog Number IPHS5-1LT Country of Origin CN Currency USD Dimensions 4.13 in H x 1.75 in W x 1.22 in D EU RoHS Indicator C Gross Weight Per Pack 0.3600 lb Gross Weight per Pack Metric 0.16 Gross Weight UOM Metric kg Hazard Class N Height 6.0000 in Height [Metric] 11.2725 cm Length 12.0000 in Length [Metric] 7.1450 cm Mounting Wall Number Of Poles 1 Power Rating 1 hp, 6 hp Replaced Catalog Number P126C-C0I Series IPHS5 Standard CUL/US Terminal Type Threaded Timing Range 10-45 mins Type 1-Pole Manual UNSPSC 39122208 UPC 11 07847765488 UPC 12 078477654880 Width 2.50 in Width [Metric] 6.3500 cm Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 5 Color Light Almond Operational Mode On/Off Voltage Rating 120 V For controlling ventilation in areas of high humidity, dampness or rooms prone to condensation Automatically detects excess humidity in a room and activates the ventilation fan to lessen condensation which helps reduce mold and mildew Sensor uses microprocessor and digital sensing technology to continuously monitor and man Built-in timer sets the "minimum on time" for the ventilation fan A sensitivity level adjustment allows users to adjust the sensor's sensitivity to ambient air to prevent false Features an air cycle mode which automatically turns ON the ventilation fan for a set Replaces a single pole switch for control of ventilation fan or a fan/light combination Fits in a standard wall box and requires a neutral for operation The device's built-in humidistat control meets CALGREEN requirements for indoor air quality a Screw terminals for wiring
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For controlling ventilation in areas of high humidity, dampness or rooms prone to condensation |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | IPHS5-1LT |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 4.13 in H x 1.75 in W x 1.22 in D |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.3600 lb |
| Gross Weight per Pack Metric | 0.16 |
| Gross Weight UOM Metric | kg |
| Hazard Class | N |
| Height | 6.0000 in |
| Height [Metric] | 11.2725 cm |
| Length | 12.0000 in |
| Length [Metric] | 7.1450 cm |
| Mounting | Wall |
| Number Of Poles | 1 |
| Power Rating | 1 hp, 6 hp |
| Replaced Catalog Number | P126C-C0I |
| Series | IPHS5 |
| Standard | CUL/US |
| Terminal Type | Threaded |
| Timing Range | 10-45 mins |
| Type | 1-Pole Manual |
| UNSPSC | 39122208 |
| UPC 11 | 07847765488 |
| UPC 12 | 078477654880 |
| Width | 2.50 in |
| Width [Metric] | 6.3500 cm |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 5 |
| Color | Light Almond |
| Operational Mode | On/Off |
| Voltage Rating | 120 V |
| For controlling ventilation in areas of high humidity, dampness or rooms prone to condensation |
| Automatically detects excess humidity in a room and activates the ventilation fan to lessen condensation which helps reduce mold and mildew |
| Sensor uses microprocessor and digital sensing technology to continuously monitor and man |
| Built-in timer sets the "minimum on time" for the ventilation fan |
| A sensitivity level adjustment allows users to adjust the sensor's sensitivity to ambient air to prevent false |
| Features an air cycle mode which automatically turns ON the ventilation fan for a set |
| Replaces a single pole switch for control of ventilation fan or a fan/light combination |
| Fits in a standard wall box and requires a neutral for operation |
| The device's built-in humidistat control meets CALGREEN requirements for indoor air quality a |
| Screw terminals for wiring |
