Leviton®

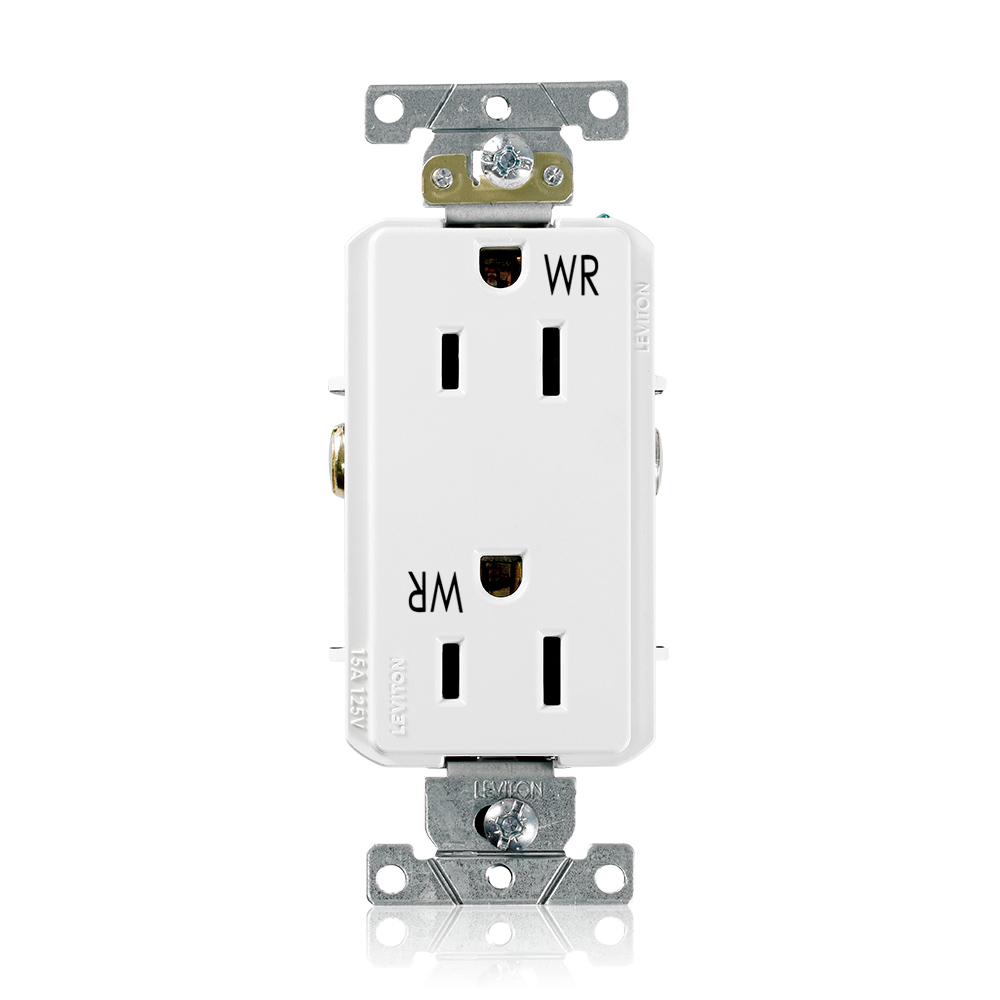

Leviton® Decora® Plus WDR15-W Duplex Heavy Duty Self-Grounding Smooth Face Weather-Resistant Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
Custom_Product_Images_Illustration
Leviton®
Leviton® Decora® Plus WDR15-W Duplex Heavy Duty Self-Grounding Smooth Face Weather-Resistant Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
SKU1284578
MFGR #WDR15-W
Your Cost: $19.34/ea
Leviton® Decora® Plus Straight Blade Receptacle, Duplex Heavy Duty Self-Grounding Smooth Face Weather-Resistant, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Industrial Grade, -40 to 75 deg C, Back/Side Wire Terminal, PBT Polyester Blend, White, 1.71 in W x 1.07 in D Dimensions
Leviton® Decora® Plus Straight Blade Receptacle, Duplex Heavy Duty Self-Grounding Smooth Face Weather-Resistant, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Industrial Grade, -40 to 75 deg C, Back/Side Wire Terminal, PBT Polyester Blend, White, 1.71 in W x 1.07 in D Dimensions
Application Industrial Applications ARRA Compliant C Buy American Compliant C Catalog Number WDR15-W Country of Origin MX Currency USD Dimensions 1.71 in W x 1.07 in D EU RoHS Indicator C Grade Industrial Gross Weight Per Pack 0.2100 lb Gross Weight per Pack Metric 0.10 Gross Weight UOM Metric kg Height 8.5000 in Horsepower 1/2 Length 12.7500 in Material PBT Polyester Blend NEMA Rating NEMA 5-15R Number Of Poles 2 Standard UL498 Temperature Rating -40 to 75 Terminal Type Back/Side Wired Type Duplex Heavy Duty Self-Grounding Smooth Face Weather-Resistant UNSPSC 39121406 UPC 11 07847789242 UPC 12 078477892428 Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 15 A Color White Number of Wires 3 Voltage Rating 125 V Hazard Class N Industrial Applications Weather-Resistant
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Industrial Applications |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | WDR15-W |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 1.71 in W x 1.07 in D |
| EU RoHS Indicator | C |
| Grade | Industrial |
| Gross Weight Per Pack | 0.2100 lb |
| Gross Weight per Pack Metric | 0.10 |
| Gross Weight UOM Metric | kg |
| Height | 8.5000 in |
| Horsepower | 1/2 |
| Length | 12.7500 in |
| Material | PBT Polyester Blend |
| NEMA Rating | NEMA 5-15R |
| Number Of Poles | 2 |
| Standard | UL498 |
| Temperature Rating | -40 to 75 |
| Terminal Type | Back/Side Wired |
| Type | Duplex Heavy Duty Self-Grounding Smooth Face Weather-Resistant |
| UNSPSC | 39121406 |
| UPC 11 | 07847789242 |
| UPC 12 | 078477892428 |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 15 A |
| Color | White |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Hazard Class | N |
| Industrial Applications |
| Weather-Resistant |
