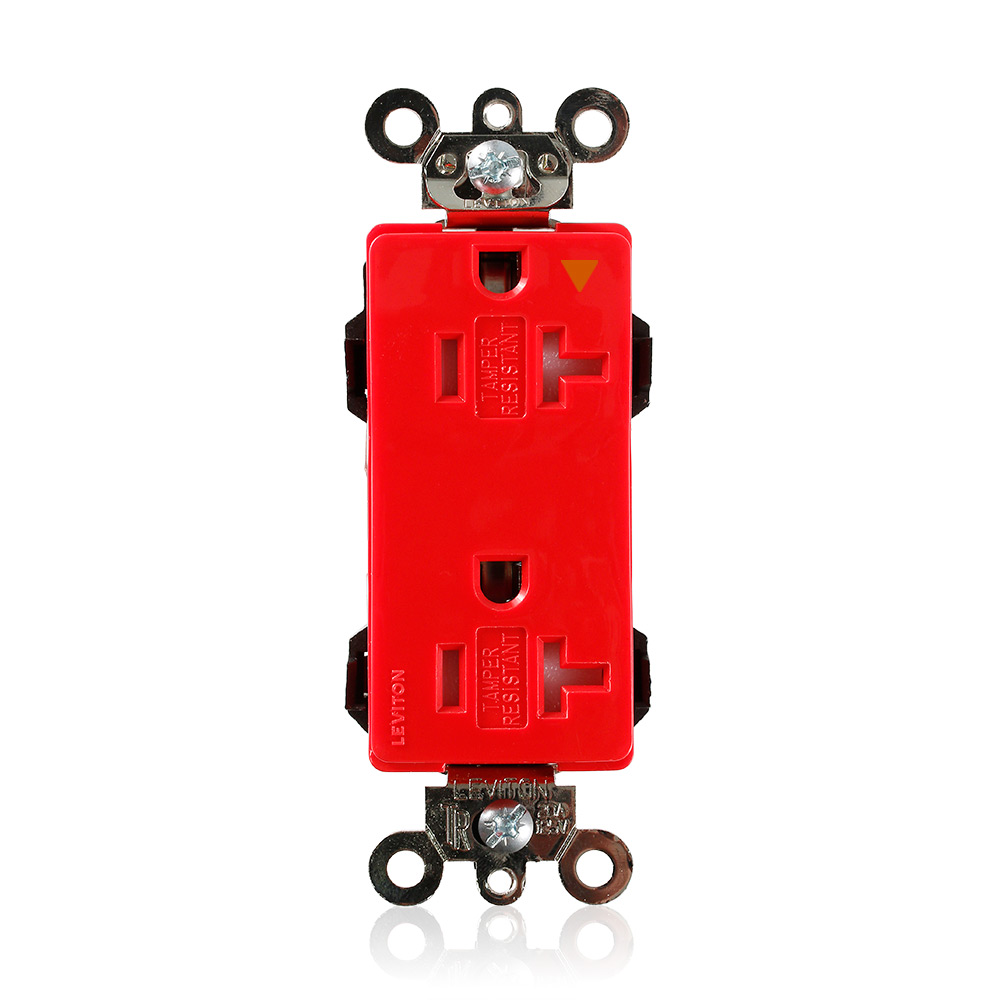

Leviton® Decora® Plus Lev-Lok® MT163-IGR 1-Phase Duplex Heavy Duty Isolated Self-Grounding Tamper Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Red
Custom_Product_Images_Illustration
Leviton®
Leviton® Decora® Plus Lev-Lok® MT163-IGR 1-Phase Duplex Heavy Duty Isolated Self-Grounding Tamper Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Red
SKU1291658
MFGR #MT163-IGR
Your Cost: $38.61/ea
Leviton® Decora® Plus Lev-Lok® Straight Blade Receptacle, 1-Phase Duplex Heavy Duty Isolated Self-Grounding Tamper Resistant, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-20R, Industrial Grade, -40 to 60 deg C, Modular Terminal, Thermoplastic, Red, 46 in H x 1.55 in W x 1.42 in D
Leviton® Decora® Plus Lev-Lok® Straight Blade Receptacle, 1-Phase Duplex Heavy Duty Isolated Self-Grounding Tamper Resistant, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-20R, Industrial Grade, -40 to 60 deg C, Modular Terminal, Thermoplastic, Red, 46 in H x 1.55 in W x 1.42 in D
Application Industrial ARRA Compliant C Buy American Compliant C Catalog Number MT163-IGR Connection Modular Terminal Country of Origin MX Currency USD Depth 1.42 in Dielectric Strength 2000 (Min.) Environmental Conditions Flammability (Rated V-2 per UL94) EU RoHS Indicator C Gross Weight Per Pack 0.2400 lb Gross Weight per Pack Metric 0.11 Gross Weight UOM Metric kg Hazard Class N Height 9.7500 in Height [Metric] 10.4775 cm Length 13.3750 in Length [Metric] 4.6050 cm Mounting Wallbox NEMA Rating 5-20R Phase 1 Standard ANSI (C-73);CSA C22.2 No. 42 (File 152105);NEMA (WD-1, WD-6);NOM Certified (057);RoHS Compliant;UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399) Type Duplex Outlet;Straight Blade UNSPSC 39121406 UPC 11 07847750197 UPC 12 078477501979 Width 1.88 in Width [Metric] 4.7625 cm Wire Size 12.000000000000000 Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 20 A Number of Wires 3 Voltage Rating 125 Industrial Constructed with impact resistant thermoplastic nylon cover and body Four corner latches securely fasten the receptacles face to the body Large triple wipe, brass "T" line contacts for superior contact and conductivity 12 AWG THHN wire leads, 6 in length on MSTWL series wiring modules For isolated ground versions, device strap is zinc plated steel and isolated ground s Grounding clip permanently secured to strap for easy, simple and secure installation Wiring module locks and latches to the receptacle body providing double the connection security Receptacle to be installed only with Leviton® MSTWL series wiring modules MSTWL wiring module shipped separately with protective label and factory installed circuit ID l
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Industrial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | MT163-IGR |
| Connection | Modular Terminal |
| Country of Origin | MX |
| Currency | USD |
| Depth | 1.42 in |
| Dielectric Strength | 2000 (Min.) |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.2400 lb |
| Gross Weight per Pack Metric | 0.11 |
| Gross Weight UOM Metric | kg |
| Hazard Class | N |
| Height | 9.7500 in |
| Height [Metric] | 10.4775 cm |
| Length | 13.3750 in |
| Length [Metric] | 4.6050 cm |
| Mounting | Wallbox |
| NEMA Rating | 5-20R |
| Phase | 1 |
| Standard | ANSI (C-73);CSA C22.2 No. 42 (File 152105);NEMA (WD-1, WD-6);NOM Certified (057);RoHS Compliant;UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399) |
| Type | Duplex Outlet;Straight Blade |
| UNSPSC | 39121406 |
| UPC 11 | 07847750197 |
| UPC 12 | 078477501979 |
| Width | 1.88 in |
| Width [Metric] | 4.7625 cm |
| Wire Size | 12.000000000000000 |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 20 A |
| Number of Wires | 3 |
| Voltage Rating | 125 |
| Industrial |
| Constructed with impact resistant thermoplastic nylon cover and body |
| Four corner latches securely fasten the receptacles face to the body |
| Large triple wipe, brass "T" line contacts for superior contact and conductivity |
| 12 AWG THHN wire leads, 6 in length on MSTWL series wiring modules |
| For isolated ground versions, device strap is zinc plated steel and isolated ground s |
| Grounding clip permanently secured to strap for easy, simple and secure installation |
| Wiring module locks and latches to the receptacle body providing double the connection security |
| Receptacle to be installed only with Leviton® MSTWL series wiring modules |
| MSTWL wiring module shipped separately with protective label and factory installed circuit ID l |
