Leviton®

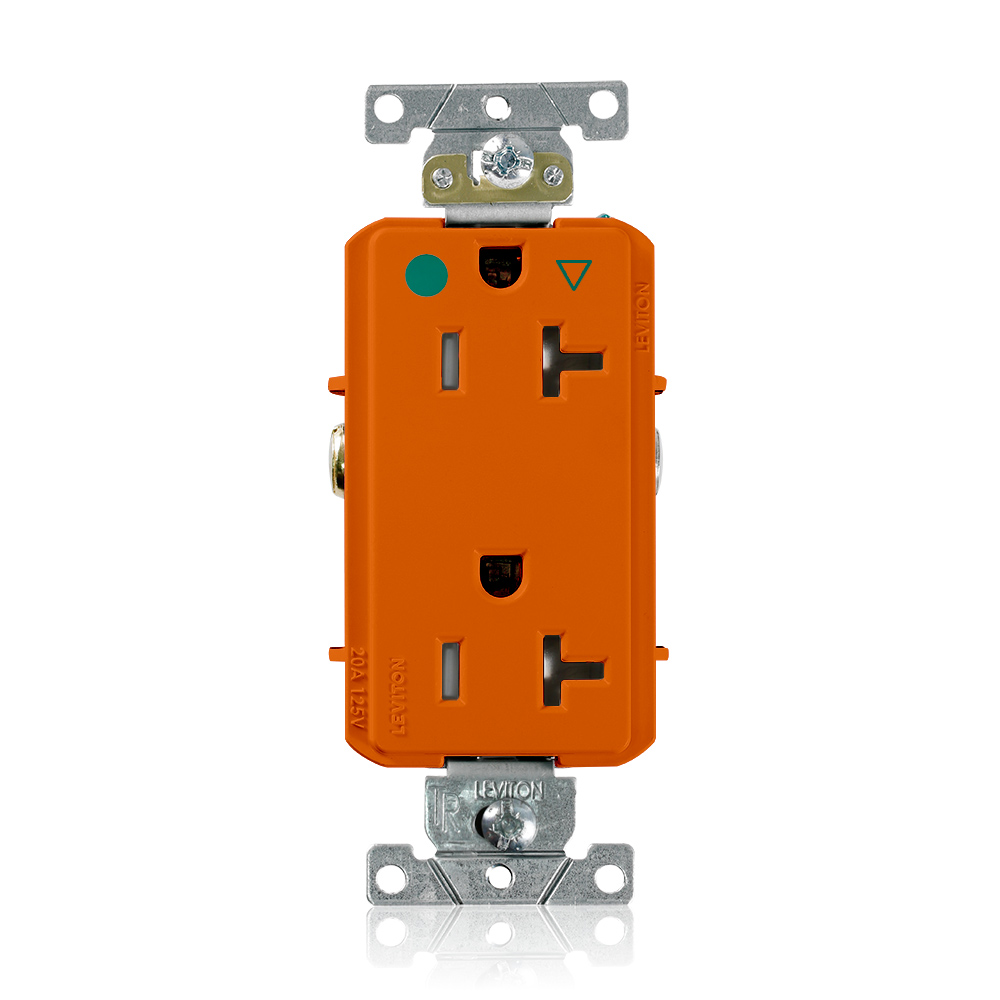

Leviton® Decora® Plus DT830-IG Duplex Heavy Duty Isolated Self-Grounding Smooth Face Tamper-Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Orange
Custom_Product_Images_Illustration
Leviton®
Leviton® Decora® Plus DT830-IG Duplex Heavy Duty Isolated Self-Grounding Smooth Face Tamper-Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Orange
SKU1284631
MFGR #DT830-IG
Your Cost: $31.70/ea
Leviton® Decora® Plus Straight Blade Receptacle, Duplex Heavy Duty Isolated Self-Grounding Smooth Face Tamper-Resistant, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Hospital Grade, -40 to 75 deg C, Back/Side Wire Terminal, PBT Polyester Blend, Orange, 4.06 in H x 1.71 in W x 1.17 in D Dimensions
Leviton® Decora® Plus Straight Blade Receptacle, Duplex Heavy Duty Isolated Self-Grounding Smooth Face Tamper-Resistant, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Hospital Grade, -40 to 75 deg C, Back/Side Wire Terminal, PBT Polyester Blend, Orange, 4.06 in H x 1.71 in W x 1.17 in D Dimensions
Application Educational Facilities, Office Environments, Hospitals/Medical Buildings, Hospitality and Day C ARRA Compliant C Buy American Compliant C Catalog Number DT830-IG Country of Origin UKN Currency USD Dimensions 4.06 in H x 1.71 in W x 1.17 in D EU RoHS Indicator C Grade Hospital Gross Weight Per Pack 11.0000 lb Gross Weight per Pack Metric 0.10 Gross Weight UOM Metric kg Hazard Class N Height 8.5000 in Horsepower 1 Length 12.7500 in Material PBT Polyester Blend NEMA Rating NEMA 5-20R Number Of Poles 2 Standard UL498 Temperature Rating -40 to 75 Terminal Type Back/Side Wired Type Duplex Heavy Duty Isolated Self-Grounding Smooth Face Tamper-Resistant UNSPSC 39121406 UPC 11 07847789565 UPC 12 078477895658 Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 20 A Color Orange Number of Wires 3 Voltage Rating 125 V Educational Facilities, Office Environments, Hospitals/Medical Buildings, Hospitality and Day C Isolated Ground Brass self-grounding clip is permanently staked on for secure and reliable performance Wide receptacle face shelf provides exceptional support to the wallplate or box cover Body and face made of impact-resistant advanced engineering polymer for extreme durability Universal strap design provides ample support for electrical box installations and includes multiple break-off Ground and contact terminal isolated from mounting strap to prevent system noise inte Oversized brass terminal screw heads provide superior clamping force and electrical conductivity External wiring clamps allow for back or side wiring and provide visual verification of termina Molded in ribs prevent terminal screws from making contact with wall box Patented tamper-resistant safety shutter mechanism prevents insertion of foreign objects, provi
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Educational Facilities, Office Environments, Hospitals/Medical Buildings, Hospitality and Day C |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | DT830-IG |
| Country of Origin | UKN |
| Currency | USD |
| Dimensions | 4.06 in H x 1.71 in W x 1.17 in D |
| EU RoHS Indicator | C |
| Grade | Hospital |
| Gross Weight Per Pack | 11.0000 lb |
| Gross Weight per Pack Metric | 0.10 |
| Gross Weight UOM Metric | kg |
| Hazard Class | N |
| Height | 8.5000 in |
| Horsepower | 1 |
| Length | 12.7500 in |
| Material | PBT Polyester Blend |
| NEMA Rating | NEMA 5-20R |
| Number Of Poles | 2 |
| Standard | UL498 |
| Temperature Rating | -40 to 75 |
| Terminal Type | Back/Side Wired |
| Type | Duplex Heavy Duty Isolated Self-Grounding Smooth Face Tamper-Resistant |
| UNSPSC | 39121406 |
| UPC 11 | 07847789565 |
| UPC 12 | 078477895658 |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 20 A |
| Color | Orange |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Educational Facilities, Office Environments, Hospitals/Medical Buildings, Hospitality and Day C |
| Isolated Ground |
| Brass self-grounding clip is permanently staked on for secure and reliable performance |
| Wide receptacle face shelf provides exceptional support to the wallplate or box cover |
| Body and face made of impact-resistant advanced engineering polymer for extreme durability |
| Universal strap design provides ample support for electrical box installations and includes multiple break-off |
| Ground and contact terminal isolated from mounting strap to prevent system noise inte |
| Oversized brass terminal screw heads provide superior clamping force and electrical conductivity |
| External wiring clamps allow for back or side wiring and provide visual verification of termina |
| Molded in ribs prevent terminal screws from making contact with wall box |
| Patented tamper-resistant safety shutter mechanism prevents insertion of foreign objects, provi |
