Steiner serves territories in Northern Illinois, Northwest Indiana and Southern Wisconsin. Please for assistance if outside our sales territory.
Leviton®

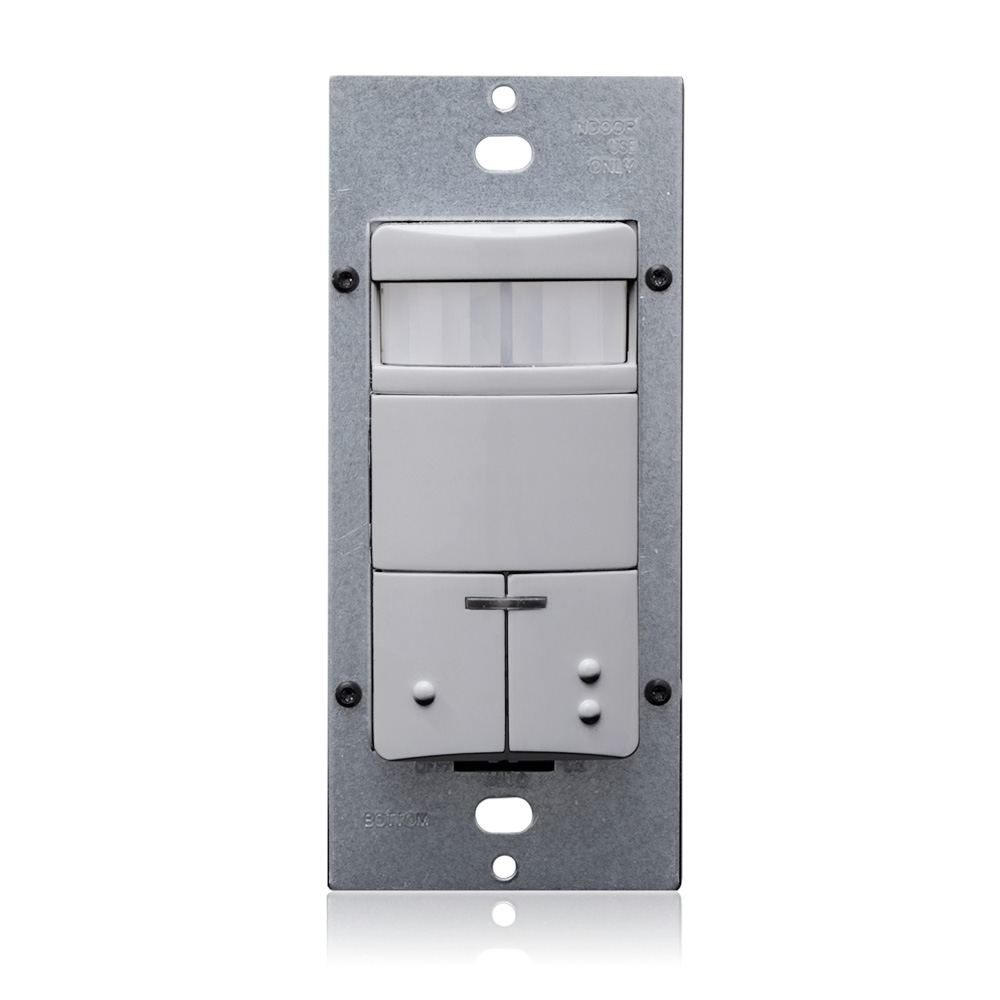

Leviton® Decora® ODS0D-IAG 1-Pole Dual Relay Self Adjusting Occupancy Sensor, 120/230/277 VAC, PIR Sensor, 2100 sq-ft Coverage, 180 deg, Wall Mount
Custom_Product_Images_Illustration
Leviton®
Leviton® Decora® ODS0D-IAG 1-Pole Dual Relay Self Adjusting Occupancy Sensor, 120/230/277 VAC, PIR Sensor, 2100 sq-ft Coverage, 180 deg, Wall Mount
SKU1292691
MFGR #ODS0D-IAG
Your Cost: $156.34/ea
Leviton® Decora® Occupancy Sensor, 1-Pole Dual Relay Self Adjusting, 120/230/277 VAC, 110/270 mW, PIR Sensor, 2100 sq-ft Coverage, 180 deg Viewing, 30 sec to 30 min Delay, Fluorescent Lamp, 50/60 Hz Response, Wall Mount, 0 to 50 deg C, Gray, 46 in H x 1.75 in W x 1.83 in D
Leviton® Decora® Occupancy Sensor, 1-Pole Dual Relay Self Adjusting, 120/230/277 VAC, 110/270 mW, PIR Sensor, 2100 sq-ft Coverage, 180 deg Viewing, 30 sec to 30 min Delay, Fluorescent Lamp, 50/60 Hz Response, Wall Mount, 0 to 50 deg C, Gray, 46 in H x 1.75 in W x 1.83 in D
Application Commercial Applications ARRA Compliant C Buy American Compliant C Catalog Number ODS0D-IAG Color Gray Country of Origin US Currency USD Dimensions 46 in H x 1.75 in W x 1.83 in D Environmental Conditions Operating Temperature (0 to +50 DEG C);Storage Temperature (-10 to +85 DEG C);Humidity (20% to 90% Non-Condensing) EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Weight Per Pack 0.3300 lb Gross Weight per Pack Metric 0.15 Gross Weight UOM Metric kg Hazard Class N Height 6.0000 in Height [Metric] 11.7475 cm Lamp Type Fluorescent Length 11.7500 in Length [Metric] 7.3025 cm Mounting Wall Power Consumption 110 @ 120V;277 @ 270V MILWTT Power Rating 110/270 Replaced Catalog Number OSSMD-GAG Response Frequency 50/60 Size 46 H x 1.75 W x 1.83 D IN Standard cULus Listed;CEC Title 24 Compliant FCC Compliant;NAFTA (CF434) Supply Voltage 120/230/277 VAC Temperature Rating 0 to 50 Time Delay 30 s to 30 min Type 1-Pole Dual Relay Self Adjusting UNSPSC 45111808 UPC 11 07847750869 UPC 12 078477508695 Width 1.88 in Width [Metric] 4.7625 cm Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Coverage 2100 Mounting Type Wall Sensor Type PIR Viewing Angle 180 Voltage Rating 120/230/277 Commercial Applications Provides Automatic Switching for Two Separate Banks of Fluorescent, Incandescent or Low-Voltage Lighting From a Single Unit, Convenient Dual Pushbuttons Provide Manual-ON/OFF Light Switching of Each Load at any Time, ODSOD-ID Conference Room Mode-Primary Provides automatic switching for two separate banks of fluorescent, incandescent or low voltage lighting from a single unit Convenient dual pushbuttons provide manual ON/OFF light switching of each load at any tim ODSOD-ID conference room mode- primary and secondary relays switch lighting to last ON/OFF status Both relays respond to ambient light override, preventing lights from turning ON automatically during periods ODS0D-ID classroom mode- both primary and secondary relays always switch lighting ON Secondary relay only responds to ambient light override primary does not, ensuring that students and personnel never enter a darkened room Presentation mode feature for slide or film presentations allows pushbuttons to turn lights OFF Auto-adapting delayed OFF time interval compensates for real time occupancy patterns, prevent Exclusive Walk-through feature provides increased energy savings by not leaving the lights ON f Daylight harvesting light sensor measures the ambient light in the room when it first detects motion, i Low profile
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial Applications |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | ODS0D-IAG |
| Color | Gray |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 46 in H x 1.75 in W x 1.83 in D |
| Environmental Conditions | Operating Temperature (0 to +50 DEG C);Storage Temperature (-10 to +85 DEG C);Humidity (20% to 90% Non-Condensing) |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 0.3300 lb |
| Gross Weight per Pack Metric | 0.15 |
| Gross Weight UOM Metric | kg |
| Hazard Class | N |
| Height | 6.0000 in |
| Height [Metric] | 11.7475 cm |
| Lamp Type | Fluorescent |
| Length | 11.7500 in |
| Length [Metric] | 7.3025 cm |
| Mounting | Wall |
| Power Consumption | 110 @ 120V;277 @ 270V MILWTT |
| Power Rating | 110/270 |
| Replaced Catalog Number | OSSMD-GAG |
| Response Frequency | 50/60 |
| Size | 46 H x 1.75 W x 1.83 D IN |
| Standard | cULus Listed;CEC Title 24 Compliant FCC Compliant;NAFTA (CF434) |
| Supply Voltage | 120/230/277 VAC |
| Temperature Rating | 0 to 50 |
| Time Delay | 30 s to 30 min |
| Type | 1-Pole Dual Relay Self Adjusting |
| UNSPSC | 45111808 |
| UPC 11 | 07847750869 |
| UPC 12 | 078477508695 |
| Width | 1.88 in |
| Width [Metric] | 4.7625 cm |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Coverage | 2100 |
| Mounting Type | Wall |
| Sensor Type | PIR |
| Viewing Angle | 180 |
| Voltage Rating | 120/230/277 |
| Commercial Applications |
| Provides Automatic Switching for Two Separate Banks of Fluorescent, Incandescent or Low-Voltage Lighting From a Single Unit, Convenient Dual Pushbuttons Provide Manual-ON/OFF Light Switching of Each Load at any Time, ODSOD-ID Conference Room Mode-Primary |
| Provides automatic switching for two separate banks of fluorescent, incandescent or low voltage lighting from a single unit |
| Convenient dual pushbuttons provide manual ON/OFF light switching of each load at any tim |
| ODSOD-ID conference room mode- primary and secondary relays switch lighting to last ON/OFF status |
| Both relays respond to ambient light override, preventing lights from turning ON automatically during periods |
| ODS0D-ID classroom mode- both primary and secondary relays always switch lighting ON |
| Secondary relay only responds to ambient light override primary does not, ensuring that students and personnel never enter a darkened room |
| Presentation mode feature for slide or film presentations allows pushbuttons to turn lights OFF |
| Auto-adapting delayed OFF time interval compensates for real time occupancy patterns, prevent |
| Exclusive Walk-through feature provides increased energy savings by not leaving the lights ON f |
| Daylight harvesting light sensor measures the ambient light in the room when it first detects motion, i |
| Low profile |
