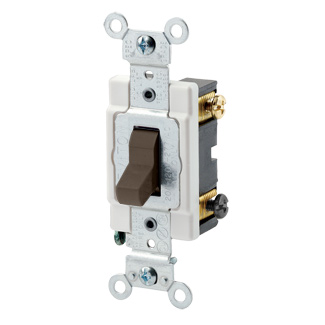

Leviton® CSB2-20 Toggle Switch, 120/277 VAC, 20 A, 1/2 hp
Toggle Switches
241449
MFG #: CSB2-20
Leviton®
21.87000
/ ea
Levitons Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.
- Catalog URL - Leviton_1257_R_Catalog.pdf(Catalog URL)
- http://www.leviton.com(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Safety Data Sheet URL - MSDS.pdf(Safety Data Sheet URL)
- Spec Sheet 1 URL - ID-SPE-v1-CSB2-20.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - ProductDetail.jsp?partnumber=CSB2-20§ion=41455&minisite=10251(Spec Sheet URL)
- Tech Drawing URL - 10962_U648VAGKJM09WSPE.jpg(Tech Drawing URL)
- Tech Drawing URL - ibcGetAttachment.jsp?cItemId=35899&label=IBE&appName=IBE(Tech Drawing URL)
- Applications
- Features
| Commercial |
| Heavy-duty pre-plated steel mounting strap for maximum strength |
| All screws are plated-steel combination-head for fast installation with standard, Phillips and Robertson head screwdrivers |
| External clamp-type wiring terminals provides secure connection of solid or stranded wire for back or side wiring (CSB1 and CSB3) |
| AC Quiet switch |
| Grounding |
| Steel 8-32 terminal screw |
| Steel strap |
| Polycarbonate toggle, PBT base, thermoplastic body, nylon cover |
| 1 hp at 120 VAC, 2 hp at 240 VAC |
| Box mounting |
| Back and side wire connection |
| UL 94-V2 Flammability |
