Leviton®

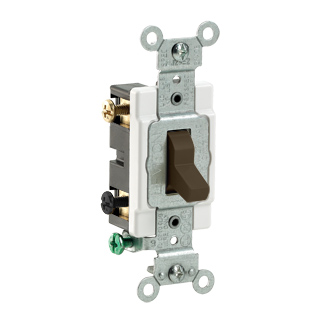

Leviton® CS220-2 Toggle Switch, 120/277 VAC, 20 A, 1/2 hp
Custom_Product_Images_Illustration
Leviton®
Leviton® CS220-2 Toggle Switch, 120/277 VAC, 20 A, 1/2 hp
SKU73064
MFGR #CS220-2
Your Cost: $10.51/ea
List: Levitons Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.
Levitons Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.
Action DP Actuator Toggle Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number CS220-2 Color Brown Connection Side Wired Country of Origin MX Currency USD Depth 0.92 in Dimensions 46 in H x 1.31 in W x 0.92 in D Enclosure NEMA WD-1/WD-6 Environmental Conditions Flammability (Rated V-2 per UL94) EU RoHS Indicator C Gross Weight Per Pack 0.1500 lb Gross Weight per Pack Metric 0.07 Gross Weight UOM Metric kg Height 5.2500 in Length 7.2500 in Material Thermoplastic Mounting Box Number Of Poles 2 Operating Temperature -40 to +120 °C Size 46 H x 1.31 W x 0.92 D in Standard NEMA (WD-1 and WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 111 (File 152105);UL Fed Spec WS-896E (File E7458);UL Standard (UL 20) Standards ARRA CompliantBuy American Act CompliantRoHS CompliantANSI C73CSA C22.2 No. 111 File No. 152105NOM 057Federal Specification WS896E File No. E7458UL 20UL94 V-2 Flammability Rating Switch Type Toggle Terminal Type Side Wired Type Toggle Switch UNSPSC 39122211 UPC 11 07847781575 UPC 12 078477815755 Width 1.31 in Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 20 A Contact Configuration DP Power Rating 800 W, 1000 VA Voltage Rating 120/277 VAC Commercial Heavy-duty pre-plated steel mounting strap for maximum strength All screws are plated-steel combination-head for fast installation with standard, Phillips and Robertson head screwdrivers AC Quiet switch Grounding Steel 8-32 terminal screw Steel strap Polycarbonate toggle, PBT base, thermoplastic body, nylon cover 1 hp at 120 VAC, 2 hp at 240/277 VAC Box mounting Side wire connection UL 94-V2 Flammability
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | DP |
| Actuator | Toggle |
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | CS220-2 |
| Color | Brown |
| Connection | Side Wired |
| Country of Origin | MX |
| Currency | USD |
| Depth | 0.92 in |
| Dimensions | 46 in H x 1.31 in W x 0.92 in D |
| Enclosure | NEMA WD-1/WD-6 |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.1500 lb |
| Gross Weight per Pack Metric | 0.07 |
| Gross Weight UOM Metric | kg |
| Height | 5.2500 in |
| Length | 7.2500 in |
| Material | Thermoplastic |
| Mounting | Box |
| Number Of Poles | 2 |
| Operating Temperature | -40 to +120 °C |
| Size | 46 H x 1.31 W x 0.92 D in |
| Standard | NEMA (WD-1 and WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 111 (File 152105);UL Fed Spec WS-896E (File E7458);UL Standard (UL 20) |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantANSI C73CSA C22.2 No. 111 File No. 152105NOM 057Federal Specification WS896E File No. E7458UL 20UL94 V-2 Flammability Rating |
| Switch Type | Toggle |
| Terminal Type | Side Wired |
| Type | Toggle Switch |
| UNSPSC | 39122211 |
| UPC 11 | 07847781575 |
| UPC 12 | 078477815755 |
| Width | 1.31 in |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 20 A |
| Contact Configuration | DP |
| Power Rating | 800 W, 1000 VA |
| Voltage Rating | 120/277 VAC |
| Commercial |
| Heavy-duty pre-plated steel mounting strap for maximum strength |
| All screws are plated-steel combination-head for fast installation with standard, Phillips and Robertson head screwdrivers |
| AC Quiet switch |
| Grounding |
| Steel 8-32 terminal screw |
| Steel strap |
| Polycarbonate toggle, PBT base, thermoplastic body, nylon cover |
| 1 hp at 120 VAC, 2 hp at 240/277 VAC |
| Box mounting |
| Side wire connection |
| UL 94-V2 Flammability |
