Leviton®

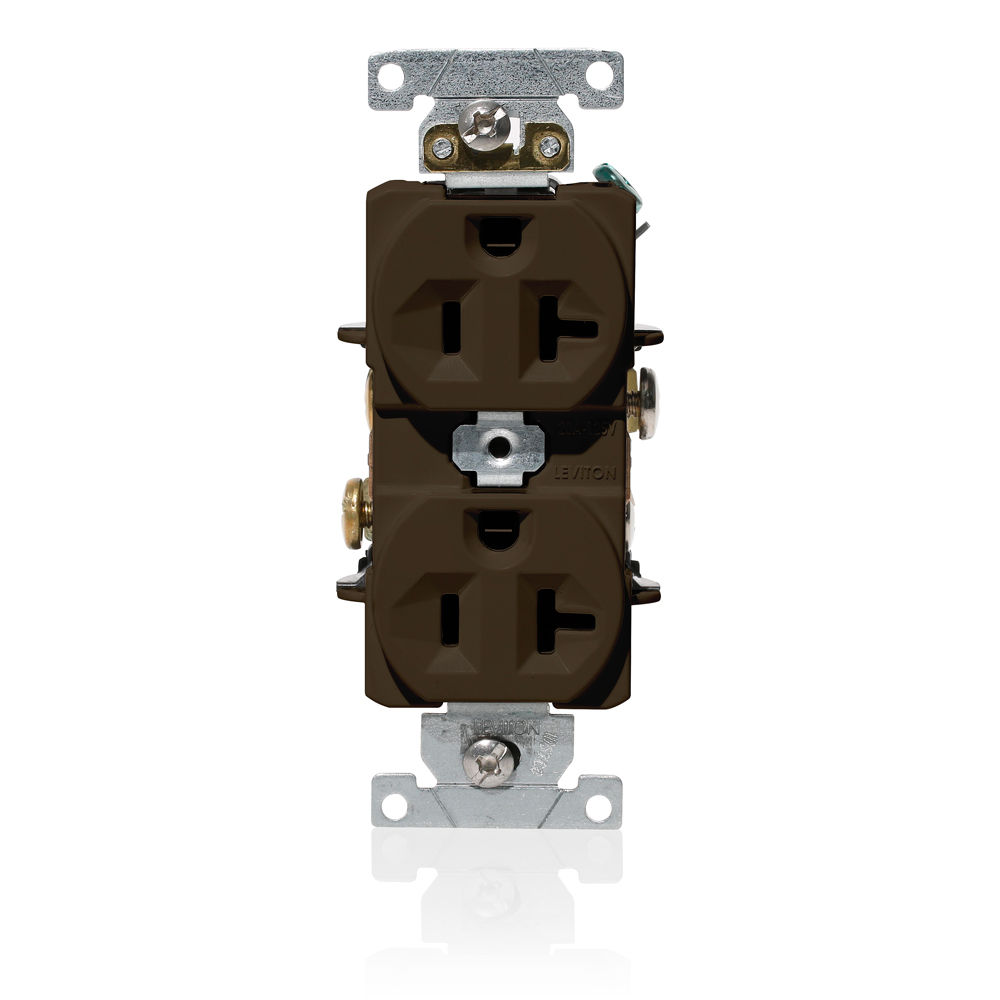

Leviton® C5362 Duplex Heavy Duty Indented Face Self-Grounding Standard Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Brown
Custom_Product_Images_Illustration
Leviton®
Leviton® C5362 Duplex Heavy Duty Indented Face Self-Grounding Standard Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Brown
SKU1284471
MFGR #C5362
Your Cost: $24.49/ea
List: Leviton® Straight Blade Receptacle, Duplex Heavy Duty Indented Face Self-Grounding Standard, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Industrial Grade, -40 to 75 deg C, Back/Side Wire Terminal, PBT Polyester Blend, Brown, 4.06 in H x 1.71 in W x 1.07 in D Dimensions
Leviton® Straight Blade Receptacle, Duplex Heavy Duty Indented Face Self-Grounding Standard, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Industrial Grade, -40 to 75 deg C, Back/Side Wire Terminal, PBT Polyester Blend, Brown, 4.06 in H x 1.71 in W x 1.07 in D Dimensions
Application Industrial, Commercial Buildings, Municipal Buildings, Transportation and Educational Facilitie ARRA Compliant C Buy American Compliant C Catalog Number C5362 Country of Origin MX Currency USD EU RoHS Indicator C Gross Weight Per Pack 0.2100 lb Gross Weight per Pack Metric 0.10 Gross Weight UOM Metric kg Hazard Class N Height 8.5000 in Length 12.7500 in Number Of Poles 2 Standard ANSI: C-73 Type Receptacle UNSPSC 39121406 UPC 11 07847772174 UPC 12 078477721742 Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 20 A Color Brown Number of Wires 3 Voltage Rating 125 V Industrial, Commercial Buildings, Municipal Buildings, Transportation and Educational Facilitie Indented Face Brass self-grounding clip is permanently staked on for secure and reliable performance Wide receptacle face shelf provides exceptional support to the wallplate or box cover Body and face made of impact-resistant advanced engineering polymer for extreme durability Universal strap design provides ample support for electrical box installations and includes multiple break-off Ground terminal clamp allows for both back and side wiring Oversized brass terminal screw heads provide superior clamping force and electrical conductivity External wiring clamps allow for back or side wiring and provide visual verification of termina Molded in ribs prevent terminal screws from making contact with wall box
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Industrial, Commercial Buildings, Municipal Buildings, Transportation and Educational Facilitie |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | C5362 |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.2100 lb |
| Gross Weight per Pack Metric | 0.10 |
| Gross Weight UOM Metric | kg |
| Hazard Class | N |
| Height | 8.5000 in |
| Length | 12.7500 in |
| Number Of Poles | 2 |
| Standard | ANSI: C-73 |
| Type | Receptacle |
| UNSPSC | 39121406 |
| UPC 11 | 07847772174 |
| UPC 12 | 078477721742 |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 20 A |
| Color | Brown |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Industrial, Commercial Buildings, Municipal Buildings, Transportation and Educational Facilitie |
| Indented Face |
| Brass self-grounding clip is permanently staked on for secure and reliable performance |
| Wide receptacle face shelf provides exceptional support to the wallplate or box cover |
| Body and face made of impact-resistant advanced engineering polymer for extreme durability |
| Universal strap design provides ample support for electrical box installations and includes multiple break-off |
| Ground terminal clamp allows for both back and side wiring |
| Oversized brass terminal screw heads provide superior clamping force and electrical conductivity |
| External wiring clamps allow for back or side wiring and provide visual verification of termina |
| Molded in ribs prevent terminal screws from making contact with wall box |
