Leviton®

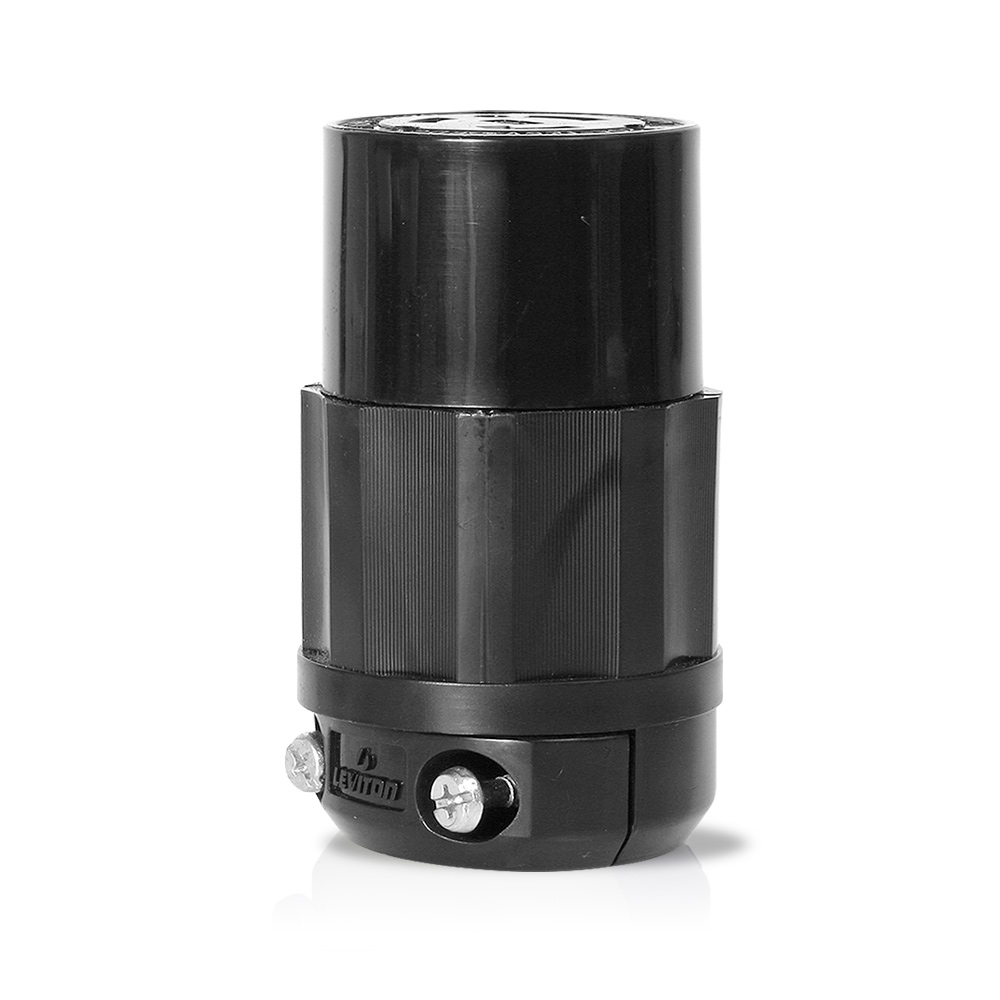

Leviton® Black & White® 4729-B Grounding Locking Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Black
Custom_Product_Images_Illustration
Leviton®
Leviton® Black & White® 4729-B Grounding Locking Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Black
SKU893898
MFGR #4729-B
Your Cost: $14.45/ea
List: Leviton's industry leading locking devices, such as our Black & White line of industrial grade plugs and connectors and receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.
Leviton's industry leading locking devices, such as our Black & White line of industrial grade plugs and connectors and receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.
Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number 4729-B Cord Diameter 0.24 to 0.7 in Country of Origin MX Currency USD Dielectric Strength 2000 (Min.) V Dimensions 1.53 in Dia x 2.76 in H Enclosure NEMA 4/4X/12/IP66 Environmental Conditions Flammability (Rated V-2 per UL94) EU RoHS Indicator C Grade Industrial Gross Weight Per Pack 0.2000 lb Gross Weight per Pack Metric 0.09 Gross Weight UOM Metric kg Height 6.7500 in Horsepower 1/2 hp Length 10.6250 in Material Nylon NEMA Rating L5-15R Number Of Poles 2 Size 1.53 Dia x 2.76 H in Standard NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Fed Spec WC-596 (File E13393) Standards ARRA CompliantBuy American Act CompliantRoHS CompliantANSI C73CSA C22.2 No.42 File No. LR406NOM 057NEMA WD1/WD6UL 498 File No. E13393Federal Specification WC596UL94 V-2 Flammability Rating Sub Brand Black & White Temperature Rating -40 to +60 °C Terminal Type Screw Type Locking Connector UNSPSC 39121406 UPC 11 07847714345 UPC 12 078477143452 Wire Size 18-10 AWG Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 15 A Color Black Number of Wires 3 Voltage Rating 125 V Commercial Withstands 2000 VAC per UL498 dielectric voltage Certified for current interrupting at full rated current Rated HB or better UL94 flammability 30 deg C maximum temperature rise at 250 cycles OL at 200% rated current Nylon wire module Nylon cord clamp Nylon clamp insert Solid brass blades/contacts Brass terminal screws Steel, zinc-plated assembly screws 18 to 10 AWG terminal accommodation 18 to 10 AWG wire Brass-hot, green-ground, silver-neutral color for terminal identification Santoprene TPV husk
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 4729-B |
| Cord Diameter | 0.24 to 0.7 in |
| Country of Origin | MX |
| Currency | USD |
| Dielectric Strength | 2000 (Min.) V |
| Dimensions | 1.53 in Dia x 2.76 in H |
| Enclosure | NEMA 4/4X/12/IP66 |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| EU RoHS Indicator | C |
| Grade | Industrial |
| Gross Weight Per Pack | 0.2000 lb |
| Gross Weight per Pack Metric | 0.09 |
| Gross Weight UOM Metric | kg |
| Height | 6.7500 in |
| Horsepower | 1/2 hp |
| Length | 10.6250 in |
| Material | Nylon |
| NEMA Rating | L5-15R |
| Number Of Poles | 2 |
| Size | 1.53 Dia x 2.76 H in |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Fed Spec WC-596 (File E13393) |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantANSI C73CSA C22.2 No.42 File No. LR406NOM 057NEMA WD1/WD6UL 498 File No. E13393Federal Specification WC596UL94 V-2 Flammability Rating |
| Sub Brand | Black & White |
| Temperature Rating | -40 to +60 °C |
| Terminal Type | Screw |
| Type | Locking Connector |
| UNSPSC | 39121406 |
| UPC 11 | 07847714345 |
| UPC 12 | 078477143452 |
| Wire Size | 18-10 AWG |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 15 A |
| Color | Black |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Commercial |
| Withstands 2000 VAC per UL498 dielectric voltage |
| Certified for current interrupting at full rated current |
| Rated HB or better UL94 flammability |
| 30 deg C maximum temperature rise at 250 cycles OL at 200% rated current |
| Nylon wire module |
| Nylon cord clamp |
| Nylon clamp insert |
| Solid brass blades/contacts |
| Brass terminal screws |
| Steel, zinc-plated assembly screws |
| 18 to 10 AWG terminal accommodation |
| 18 to 10 AWG wire |
| Brass-hot, green-ground, silver-neutral color for terminal identification |
| Santoprene TPV husk |
