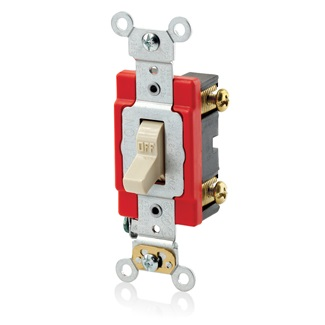

Leviton® A1223-2I 3-Way Extra Heavy Duty Toggle Switch, 120/277 VAC, 20 A, 1 hp/2 hp
Custom_Product_Images_Illustration
Leviton® A1223-2I 3-Way Extra Heavy Duty Toggle Switch, 120/277 VAC, 20 A, 1 hp/2 hp
SKU1079578
MFGR #A1223-2I
Your Cost: $25.53/ea
List: These devices are made with an antimicrobial additive that helps protect them from the growth of harmful bacteria. Antimicrobial treated devices are certified by NSF International to meet sanitation requirements for use in food handling and processing environments.
These devices are made with an antimicrobial additive that helps protect them from the growth of harmful bacteria. Antimicrobial treated devices are certified by NSF International to meet sanitation requirements for use in food handling and processing environments.
Actuator Toggle Application Healthcare Facilities ARRA Compliant C Buy American Compliant C Catalog Number A1223-2I Color Ivory Country of Origin MX Currency USD Dimensions 4.06 in H x 1.31 in W Enclosure NEMA WD-1/WD-6 Environmental Conditions -40 to 65 deg C Operating/Storage Temperature EU RoHS Indicator C Gross Weight Per Pack 0.2200 lb Gross Weight per Pack Metric 0.10 Gross Weight UOM Metric kg Height 9.7500 in Height [Metric] 10.6375 cm Length 13.3750 in Length [Metric] 4.2875 cm Material Thermoplastic Number Of Poles 1 Operating Cycles 50000 Standard UL 514D Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCSA C22.2 No. 111 File No. 152105ISO 22196NOM-ANCE CertifiedFederal Specification WS896E File No. E7458UL 20UL 514DUL94 HB Flammability Rating Terminal Type Back/Side Wired Type Antimicrobial Switch UNSPSC 39122211 UPC 11 07847769931 UPC 12 078477699317 Width 1.62 in Width [Metric] 4.1275 cm Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 20 A Power Rating 800 W, 1000 VA Voltage Rating 120/277 VAC Healthcare Facilities Antimicrobial Single Pole switch 1 hp at 120 VAC, 2 hp at 240 VAC power rating Specification grade Antimicrobial material has been tested to show a consistent {3 log (>99.9%)} microbial reduction rate against a broad range of bacteria pursuant to the JIS Z 2801:2000 test protocol All Antimicrobial devices use silver ions (Ag+) as the antimicrobial agent in the product material AC quiet switch Self grounding Brass 8-32 terminal screw Galvanized steel strap Antimicrobial urea toggle, thermoplastic base and cover 1 hp at 120 VAC, 2 hp at 240 VAC Back and side wire connection UL 94 Flammability
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Application | Healthcare Facilities |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | A1223-2I |
| Color | Ivory |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 4.06 in H x 1.31 in W |
| Enclosure | NEMA WD-1/WD-6 |
| Environmental Conditions | -40 to 65 deg C Operating/Storage Temperature |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.2200 lb |
| Gross Weight per Pack Metric | 0.10 |
| Gross Weight UOM Metric | kg |
| Height | 9.7500 in |
| Height [Metric] | 10.6375 cm |
| Length | 13.3750 in |
| Length [Metric] | 4.2875 cm |
| Material | Thermoplastic |
| Number Of Poles | 1 |
| Operating Cycles | 50000 |
| Standard | UL 514D |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCSA C22.2 No. 111 File No. 152105ISO 22196NOM-ANCE CertifiedFederal Specification WS896E File No. E7458UL 20UL 514DUL94 HB Flammability Rating |
| Terminal Type | Back/Side Wired |
| Type | Antimicrobial Switch |
| UNSPSC | 39122211 |
| UPC 11 | 07847769931 |
| UPC 12 | 078477699317 |
| Width | 1.62 in |
| Width [Metric] | 4.1275 cm |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 20 A |
| Power Rating | 800 W, 1000 VA |
| Voltage Rating | 120/277 VAC |
| Healthcare Facilities |
| Antimicrobial Single Pole switch |
| 1 hp at 120 VAC, 2 hp at 240 VAC power rating |
| Specification grade |
| Antimicrobial material has been tested to show a consistent {3 log (>99.9%)} microbial reduction rate against a broad range of bacteria pursuant to the JIS Z 2801:2000 test protocol |
| All Antimicrobial devices use silver ions (Ag+) as the antimicrobial agent in the product material |
| AC quiet switch |
| Self grounding |
| Brass 8-32 terminal screw |
| Galvanized steel strap |
| Antimicrobial urea toggle, thermoplastic base and cover |
| 1 hp at 120 VAC, 2 hp at 240 VAC |
| Back and side wire connection |
| UL 94 Flammability |
