Leviton®

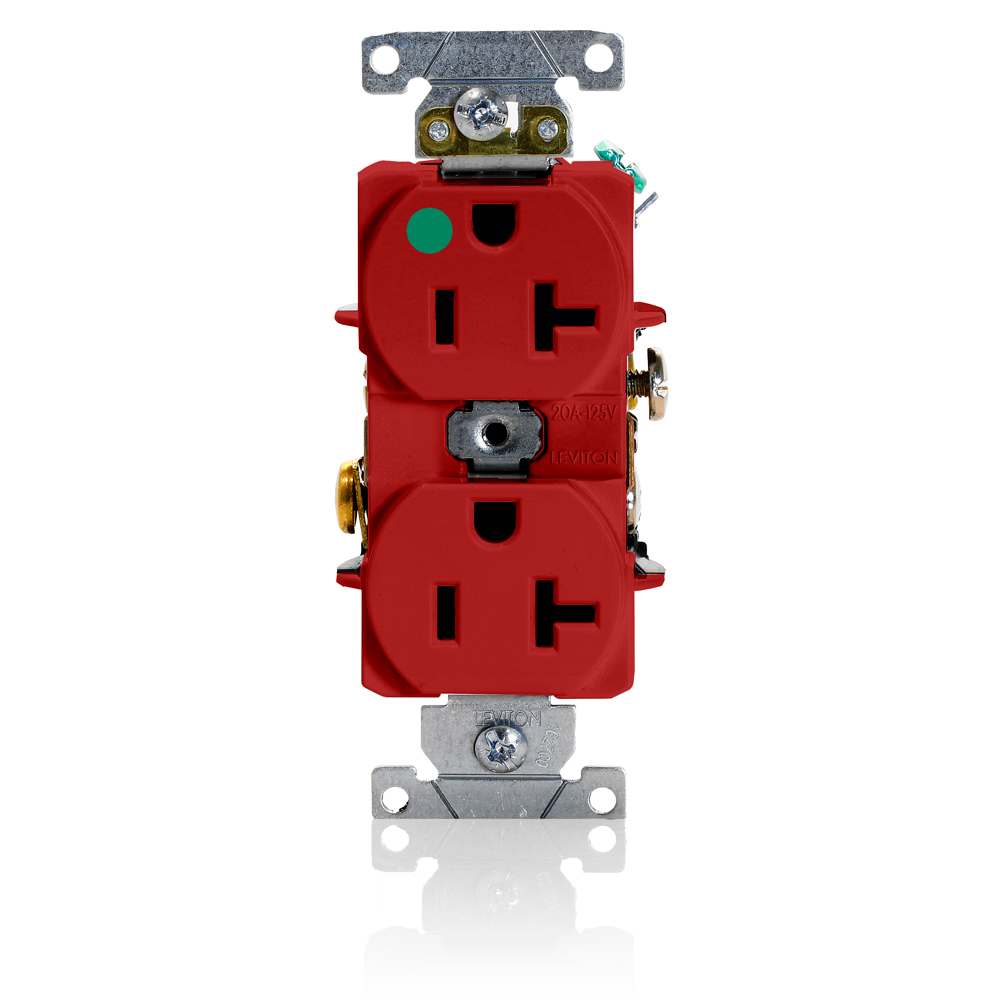

Leviton® 8300-HR Duplex Heavy Duty Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Red
Custom_Product_Images_Illustration
Leviton®
Leviton® 8300-HR Duplex Heavy Duty Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Red
SKU8455
MFGR #8300-HR
Your Cost: $6.46/ea
List: All Leviton Hospital Grade Receptacles undergo the most stringent UL testing to assure continuous, safe operation in any application requiring high-abuse tolerance, including health care facilities, manufacturing plants and schools.
All Leviton Hospital Grade Receptacles undergo the most stringent UL testing to assure continuous, safe operation in any application requiring high-abuse tolerance, including health care facilities, manufacturing plants and schools.
Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number 8300-HR Connection Back and Side Wired Country of Origin MX Currency USD Depth 1.18 in Dielectric Strength 2000 (Min.) V Dimensions 4.06 in H x 1.51 in W x 1.18 in D Enclosure NEMA WD-6/IP20 Environmental Conditions Flammability (Rated V-2 per UL94) EU RoHS Indicator C Grade Hospital Gross Weight Per Pack 0.2000 lb Gross Weight per Pack Metric 0.10 Gross Weight UOM Metric kg Height 8.5000 in Horsepower 1 hp Length 12.7500 in Material Thermoplastic Mounting Wall Box NEMA Rating 5-20R Number Of Poles 2 Phase 1 Size 46 H x 1.51 W x 1.18 D in Standard NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 HG (File E13399) Standards ARRA CompliantBuy American Act CompliantRoHS CompliantANSI (C-73)CSA C22.2 No. 42 152105NOM CertifiedUL498HG E13399UL Federal Specification WC-596 File No. E13399UL94 Flammability Rating Temperature Rating -40 to +60 °C Terminal Type Back/Side Wired Type Straight Blade;Duplex Outlet UNSPSC 39121406 UPC 11 07847781893 UPC 12 078477818930 Width 1.51 in Wire Size 14-10 AWG Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 20 A Color Red Number of Wires 3 Voltage Rating 125 V Commercial Impact-resistant thermoplastic nylon cover and body Smooth face does not collect dirt Four corner latches securely fasten face Extra heavy duty triple-wipe, brass "T" contacts for superior contact and conductivity High-performance brass no 10-32 terminal screws to reduce conductor oxidation Back and side wire ground termination brass strap version Back and side wiring options Break-off tabs for easy two-circuit conversion Apron barrier to prevent accidental contact between terminal screw heads and metal box Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity Power Indication™ provides permanent "green dot" lens with 100000 hr LED status indicator
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 8300-HR |
| Connection | Back and Side Wired |
| Country of Origin | MX |
| Currency | USD |
| Depth | 1.18 in |
| Dielectric Strength | 2000 (Min.) V |
| Dimensions | 4.06 in H x 1.51 in W x 1.18 in D |
| Enclosure | NEMA WD-6/IP20 |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| EU RoHS Indicator | C |
| Grade | Hospital |
| Gross Weight Per Pack | 0.2000 lb |
| Gross Weight per Pack Metric | 0.10 |
| Gross Weight UOM Metric | kg |
| Height | 8.5000 in |
| Horsepower | 1 hp |
| Length | 12.7500 in |
| Material | Thermoplastic |
| Mounting | Wall Box |
| NEMA Rating | 5-20R |
| Number Of Poles | 2 |
| Phase | 1 |
| Size | 46 H x 1.51 W x 1.18 D in |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 HG (File E13399) |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantANSI (C-73)CSA C22.2 No. 42 152105NOM CertifiedUL498HG E13399UL Federal Specification WC-596 File No. E13399UL94 Flammability Rating |
| Temperature Rating | -40 to +60 °C |
| Terminal Type | Back/Side Wired |
| Type | Straight Blade;Duplex Outlet |
| UNSPSC | 39121406 |
| UPC 11 | 07847781893 |
| UPC 12 | 078477818930 |
| Width | 1.51 in |
| Wire Size | 14-10 AWG |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 20 A |
| Color | Red |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Commercial |
| Impact-resistant thermoplastic nylon cover and body |
| Smooth face does not collect dirt |
| Four corner latches securely fasten face |
| Extra heavy duty triple-wipe, brass "T" contacts for superior contact and conductivity |
| High-performance brass no 10-32 terminal screws to reduce conductor oxidation |
| Back and side wire ground termination brass strap version |
| Back and side wiring options |
| Break-off tabs for easy two-circuit conversion |
| Apron barrier to prevent accidental contact between terminal screw heads and metal box |
| Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity |
| Power Indication™ provides permanent "green dot" lens with 100000 hr LED status indicator |
