Leviton®

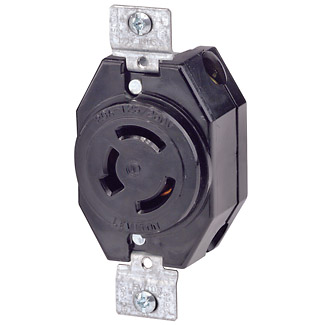

Leviton® 7310-B Single Locking Receptacle, 125/250 VAC, 20 A, 3 Poles, 3 Wires, Black
Custom_Product_Images_Illustration
Leviton®
Leviton® 7310-B Single Locking Receptacle, 125/250 VAC, 20 A, 3 Poles, 3 Wires, Black
SKU73153
MFGR #7310-B
Your Cost: $27.73/ea
List: Leviton's line of Extra Heavy-Duty Industrial Grade locking receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.
Leviton's line of Extra Heavy-Duty Industrial Grade locking receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.
Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number 7310-B Connection Back Wired;Side Wired Country of Origin UKN Currency USD Depth 1.43 in Dielectric Strength 2000 (Min.) V Dimensions 3.62 in H x 1.7 in W x 1.43 in D Environmental Conditions Flammability (Rated V-2 per UL94) EU RoHS Indicator C Grade Industrial Gross Weight Per Pack 0.2400 lb Gross Weight per Pack Metric 0.11 Gross Weight UOM Metric kg Height 9.7500 in Height [Metric] 10.4775 cm Length 13.3750 in Length [Metric] 4.6050 cm Material Nylon Mounting Box NEMA Rating Non-NEMA Number Of Poles 3 Size 3.62 H x 1.70 W x 1.43 D in Standard NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Listed 498 (File E13399) Standards ARRA CompliantBuy American Act CompliantRoHS CompliantNEMA WD1/WD6ANSI C73NOM 057CSA C22.2 No. 42/LR406UL 498 File No. E13399UL94 V-2 Flammability Rating Temperature Rating -40 to +60 °C Terminal Type Back/Side Wired Type Locking Single Receptacle UNSPSC 39121406 UPC 11 07847782161 UPC 12 078477821619 Width 1.88 in Width [Metric] 4.7625 cm Wire Size 18-10 AWG Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 20 A Color Black Number of Wires 3 Voltage Rating 125/250 V Commercial UL 94 V2 flammability Box mounting Back and side wire connection 2000 VAC minimum dielectric strength Flush mounting Non-grounding Non-NEMA configuration Industrial grade 18 to 10 AWG
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 7310-B |
| Connection | Back Wired;Side Wired |
| Country of Origin | UKN |
| Currency | USD |
| Depth | 1.43 in |
| Dielectric Strength | 2000 (Min.) V |
| Dimensions | 3.62 in H x 1.7 in W x 1.43 in D |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| EU RoHS Indicator | C |
| Grade | Industrial |
| Gross Weight Per Pack | 0.2400 lb |
| Gross Weight per Pack Metric | 0.11 |
| Gross Weight UOM Metric | kg |
| Height | 9.7500 in |
| Height [Metric] | 10.4775 cm |
| Length | 13.3750 in |
| Length [Metric] | 4.6050 cm |
| Material | Nylon |
| Mounting | Box |
| NEMA Rating | Non-NEMA |
| Number Of Poles | 3 |
| Size | 3.62 H x 1.70 W x 1.43 D in |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Listed 498 (File E13399) |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantNEMA WD1/WD6ANSI C73NOM 057CSA C22.2 No. 42/LR406UL 498 File No. E13399UL94 V-2 Flammability Rating |
| Temperature Rating | -40 to +60 °C |
| Terminal Type | Back/Side Wired |
| Type | Locking Single Receptacle |
| UNSPSC | 39121406 |
| UPC 11 | 07847782161 |
| UPC 12 | 078477821619 |
| Width | 1.88 in |
| Width [Metric] | 4.7625 cm |
| Wire Size | 18-10 AWG |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 20 A |
| Color | Black |
| Number of Wires | 3 |
| Voltage Rating | 125/250 V |
| Commercial |
| UL 94 V2 flammability |
| Box mounting |
| Back and side wire connection |
| 2000 VAC minimum dielectric strength |
| Flush mounting |
| Non-grounding |
| Non-NEMA configuration |
| Industrial grade |
| 18 to 10 AWG |
